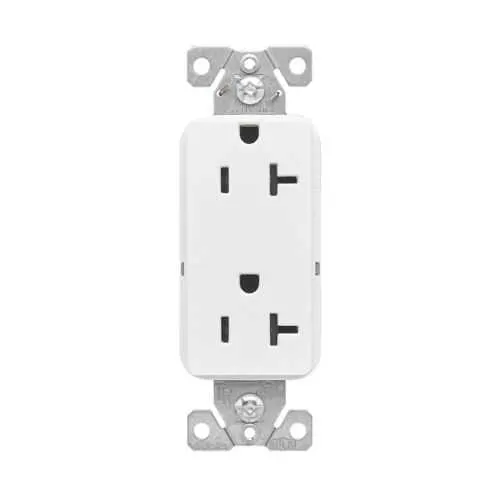

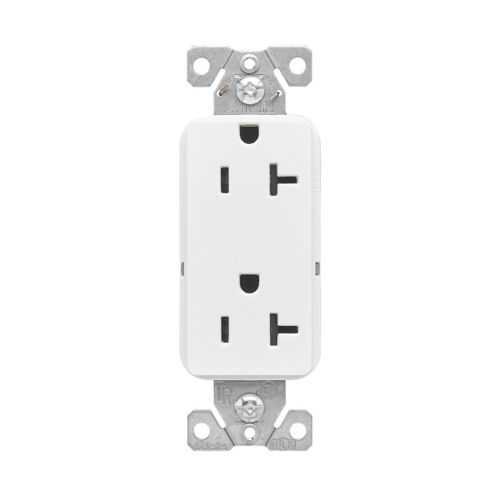

Eaton EZTR6362B EZLink Decorator Receptacle - cULus Listed
Part Number: EZTR6362B
Quick Summary
The Eaton EZTR6362B EZLink decorator receptacle provides reliable power delivery for electrical enclosures and control panels. It addresses a common pain point: compact outlets that meet safety standards without compromising panel space. Certified cULus Listed, NOM, and Federal Specification W-C-596G support compliance across North America. Its compact footprint and 3-wire, NEMA 5-20R design streamline procurement, installation, and long-term maintenance. Developed for industrial automation environments, it aligns with modular device strategy and helps reduce wiring errors during panel builds. Users gain confidence from tamper-resistant protection and consistent part availability. This combination delivers measurable value by minimizing downtime, accelerating maintenance, and simplifying upgrade paths for evolving control architectures.
Product Information
Extended Description
EZTR6362B Eaton: Eaton EZLink modular decorator receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, NEMA 5-20R, three-wire, brown
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZTR6362B
UPC
032664011931
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
EZLink modular decorator receptacle design enables quick integration into both legacy panels and new builds, aligning with modular device strategies. This feature reduces installation time and wiring mistakes by providing a standardized, plug-adjacent interface. It is ideal for control panels, machine enclosures, and field devices in factory automation. Tamper-resistant construction and NEMA 5-20R wiring deliver improved safety and code compliance, reducing tamper-related faults and inspection failures in assembly lines and automated systems. The compact footprint—with a 1.91 in depth, 4.4 in height, and 1.75 in width—saves panel space and simplifies layout, allowing more devices in crowded automation cabinets. Certifications such as cULus Listed, NOM, and W-C-596G support global procurement and regulatory compliance, streamlining supplier selection. Summary benefits include easier maintenance, lower downtime, and consistent part availability for evolving control architectures. Compatibility with the EZLink modular device family helps standardize panels and accelerate sourcing across projects.
Get a Quick Quote for a Eaton EZTR6362B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR6362B?
Enquire Now
FAQs
Install the EZTR6362B into standard electrical panels that support a NEMA 5-20R receptacle. Verify 125 V supply and 20 A circuit rating, ensure tamper-resistant cover protection, and secure with the appropriate mounting hardware. Wire the three conductors to the line, neutral, and ground terminals per local codes, then test for continuity and insulation. The compact depth supports dense layouts, reducing panel intrusion and wiring congestion while maintaining accessibility for maintenance.
Yes, EZTR6362B is a 20A, 125 Vac three-wire solution with a NEMA 5-20R configuration. It requires three wires—hot, neutral, and ground—wired to the corresponding terminals. The tamper-resistant design helps prevent unintended contact. When wiring, follow the device’s catalog specifications and your jurisdiction’s electrical codes to ensure a safe, code-compliant installation.
The EZTR6362B is well-suited for control panels, electrical enclosures, and modular device systems in factory automation. Its compact footprint fits tight spaces in automation cabinets, while the NEMA 5-20R configuration supports common 125 V automation equipment. It’s ideal for machines, conveyors, and process panels where reliable power delivery and Tamper-Resistant protection are important for uptime and safety.
EZTR6362B carries cULus Listed, NOM, and Federal Specification W-C-596G certifications. These approvals indicate compliance with North American safety and performance standards, facilitating regulatory approvals, procurement, and maintenance across diverse facilities. For engineers and buyers, these certifications reduce supplier risk and support faster project approvals while ensuring consistent quality in critical power interfaces.
Maintenance benefits stem from a robust tamper-resistant design, fewer accessory components, and compatibility with EZLink modular devices, which simplifies sourcing and stocking. The compact form reduces panel downtime during replacements and minimizes wiring errors. Over time, this translates to lower maintenance labor costs, faster panel upgrades, and improved system reliability, delivering a favorable return on investment in ongoing automation projects.
