Eaton EZTR6362CDGY EZLink receptacle - cULus Listed
Part Number: EZTR6362CDGY
Quick Summary
The Eaton EZLink modular decorator receptacle provides flexible electrical outlet control for commercial and industrial panel installations. Engineers often struggle with space constraints, tamper resistance, and mounting compatibility in crowded equipment rooms. This device is cULus listed and NOM certified, meeting Federal Specification Classification W-C-596G for rugged commercial use. Designed for 20A at 125V with NEMA 5-20R compatibility, it supports dual controlled, tamper-resistant operation to enhance safety and installation efficiency.
Product Information
Extended Description

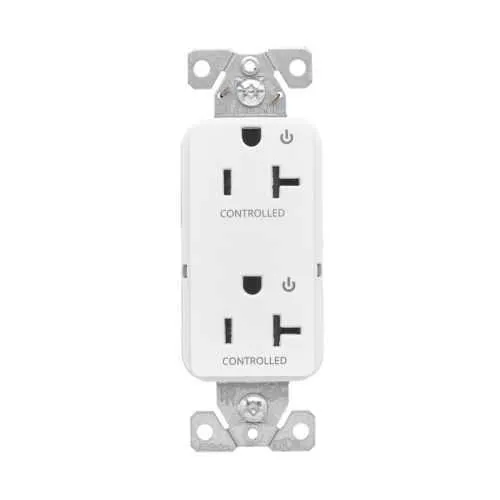

EZTR6362CDGY Eaton: Eaton EZLink modular decorator receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, dual controlled, NEMA 5-20R, three-wire, gray
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZTR6362CDGY
UPC
032664011986
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Gray
Feature → Business Impact → Application: The EZTR6362CDGY offers a 20A, 125V rating with a NEMA 5-20R configuration. This standard outlet specification aligns with common equipment loads, reduces the need for adapters, and lowers wiring errors in dense control panels. Application: Ideal for control cabinets, equipment racks, and modular power distribution enclosures in commercial and light-industrial settings. Feature → Business Impact → Application: Tamper-resistant construction enhances safety and code compliance by preventing accidental insertion of foreign objects. This reduces maintenance incidents and supports safer operation in busy labs, classrooms, and production floors. Application: Suitable for shared workstations, healthcare kiosks, and educational equipment carts. Feature → Business Impact → Application: Dual controlled functionality enables flexible control strategies, supporting local switching and integration with building automation or process controllers. This improves energy management, fault isolation, and remote operability. Application: Well-suited for factory automation panels, data-center peripherals, and process control cabinets. Feature → Business Impact → Application: Modular decorator design enables rapid faceplate upgrades and scalable customization without rewiring, saving installation time and reducing downtime. Application: Used in panel upgrade projects, modular control rooms, and upgradeable instrument panels. Feature → Business Impact → Application: Certifications and standard compliance provide reliable performance in harsh environments, with cULus and NOM certification and Federal Specification W-C-596G ensuring regulatory alignment. Application: Required in commercial installations, educational facilities, and regulated industrial spaces.
Get a Quick Quote for a Eaton EZTR6362CDGY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR6362CDGY?
Enquire Now
FAQs
The EZTR6362CDGY is a 20A, 125V NEMA 5-20R decorator receptacle designed for modular EZLink devices. It supports three wires and is gray in color. It fits standard panel and equipment enclosures, providing a compact 1.91 inch depth and a small overall footprint to maximize space in control panels.
Key performance specs include a 20A amperage rating, 125V voltage rating, three conductors, tamper-resistant construction, and dual controlled operation. It is cULus listed with NOM certification and Federal Specification W-C-596G, ensuring reliability in commercial and industrial environments. Weight is about 0.22 lb with dimensions roughly 4.4 in height, 1.75 in width.
Yes. The EZLink modular decorator receptacle is designed for control cabinets and equipment rooms that require safe, flexible outlets. Dual controlled capability supports integration with local switches or automation systems, while the modular design simplifies upgrades. With NEMA 5-20R compatibility and a compact form factor, it reduces wiring complexity in manufacturing and process control environments.
This model carries cULus listing and NOM certification, along with Federal Specification Classification W-C-596G. These standards reflect safety, construction quality, and suitability for commercial and industrial use, helping you meet regulatory requirements for workplace outlets and shared equipment spaces.
Installation benefits include a compact depth and footprint, straightforward three-wire wiring for 125V circuits, and compatibility with EZLink modular devices for rapid faceplate upgrades. By speeding deployment, reducing modification time, and delivering safer operation, it supports lower labor costs and improved equipment uptime in panel upgrades and new installations.
