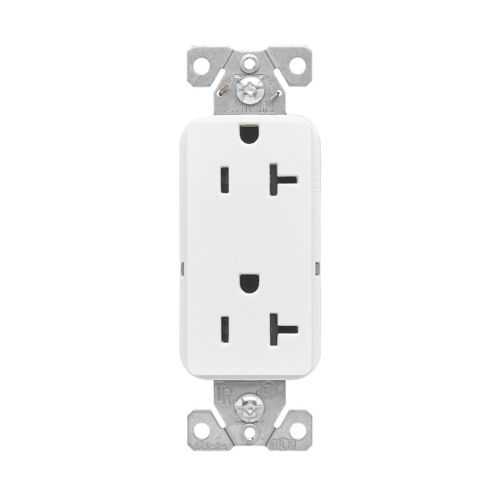

Eaton EZTR6362SCBK EZLink decorator receptacle - cULus
Part Number: EZTR6362SCBK
Quick Summary
The Eaton EZLink modular decorator receptacle is a reliable 20A, 125V outlet for control panels and equipment. Pain points such as mismatched footprints, insufficient tamper resistance, and wiring confusion are common in field enclosures. Certified cULus Listed, NOM, and Federal Specification W-C-596G provide regulatory confidence for panel builders. Its NEMA 5-20R, three-wire design and split control option support flexible wiring, faster installs, and better fault isolation. Compact dimensions help maximize panel density while maintaining a professional appearance. Designed for easy field mounting, it aligns with standard backboxes and enclosure footprints for reliable, repeatable installations. By reducing mis-wires and improving safety, it delivers measurable cost savings over a machine’s life cycle.
Product Information
Extended Description
EZTR6362SCBK Eaton: Eaton EZLink modular decorator receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, split control, NEMA 5-20R, three-wire, black
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZTR6362SCBK
UPC
032664012150
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Black
Feature: 20A, 125V rating. Business Impact: Supports common 20A circuits in industrial equipment without overloading wiring, reducing nuisance trips and warranty issues. Application: control panels and power distribution inside enclosures. Feature: NEMA 5-20R, three-wire design. Business Impact: ensures standard plug compatibility and grounding integrity, enabling safer, faster wiring. Application: control circuits and machine power feeds in manufacturing lines. Feature: Tamper-resistant construction and certifications. Business Impact: enhances safety compliance and reduces accidental contact, lowering risk-reduction costs. Application: panels in food processing, packaging, and automation environments. Feature: Split control option. Business Impact: enables flexible function control within a single receptacle, decreasing wiring complexity and installation time. Application: multi-function panel sections and modular power distribution. Feature: Compact dimensions (1.91 in depth, 4.4 in height, 1.75 in width) and weight. Business Impact: increases panel density and enables easier retrofits in tight enclosures. Application: retrofit projects and OEM builds requiring space efficiency. Feature: Black finish and rugged build. Business Impact: resists wear and preserves enclosure aesthetics in harsh environments. Application: industrial cabinets, control boxes, and electrical enclosures.
Get a Quick Quote for a Eaton EZTR6362SCBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR6362SCBK?
Enquire Now
FAQs
To install the EZTR6362SCBK, disconnect power, select a compatible backbox, and mount the receptacle using the standard mounting pattern for decorator devices. Connect the three conductors to the NEMA 5-20R wiring terminals per the panel’s wiring diagram, ensuring secure torque on terminations. Verify tamper-resistant features and test for proper receptacle polarity after wiring.
The EZTR6362SCBK is rated at 20A and 125Vac, with a three-wire configuration and a NEMA 5-20R receptacle. It is designed for 60 Hz operation and is configured for standard industrial power delivery in control panels and equipment enclosures. Its tamper-resistant build adds safety, particularly in high-traffic or hazardous environments.
Yes. This receptacle is cULus Listed, NOM certified, and aligned with Federal Specification W-C-596G, providing regulatory assurance for panel builders and OEMs. Its tamper-resistant design further supports safety requirements for workplaces with strict electrical codes, reducing compliance risk during inspections and audits.
EZTR6362SCBK addresses space constraints with a compact depth of 1.91 in, height of 4.4 in, and width of 1.75 in, enabling denser panel layouts. The three-wire NEMA 5-20R configuration simplifies wiring, and the split control option offers flexible circuit management, reducing wiring complexity and installation time in multi-function enclosures.
The combination of tamper-resistant construction, standard NEMA compatibility, and regulatory certifications reduces field maintenance and commissioning time. Faster installs mean lower labor costs, fewer wiring errors, and longer intervals between service interventions, delivering measurable ROI over the equipment’s life cycle.
