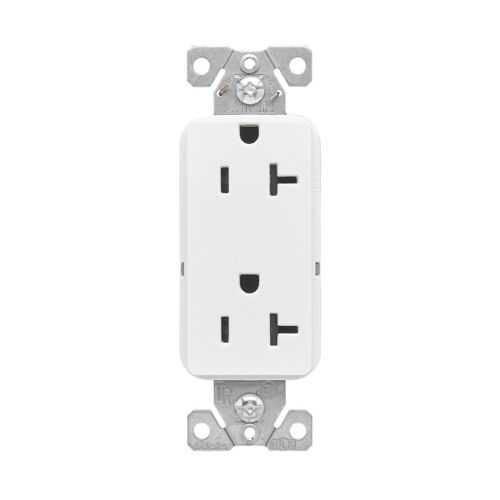

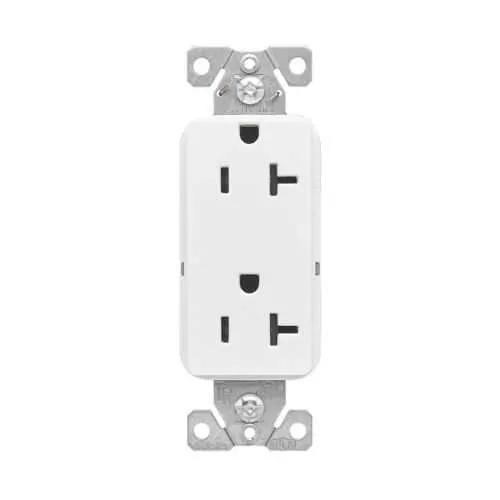

Eaton EZTR6362SCRD EZLink Receptacle - Tamper-Resistant
Part Number: EZTR6362SCRD
Quick Summary
Eaton EZLink modular decorator receptacle provides safe, convenient power access for commercial and industrial outlets. Engineers often face tamper risks, miswired configurations, and awkward installations in busy facilities. This product carries cULus Listed, NOM, and Federal Specification W-C-596G certifications, helping compliance across North America. With a NEMA 5-20R, three-wire design in a bold red, it supports streamlined wiring and rapid retrofits. The modular EZLink platform enables scalable, standardized installations, reducing downtime, improving maintenance planning, and simplifying inventory management.
Product Information
Extended Description
EZTR6362SCRD Eaton: Eaton EZLink modular decorator receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, split control, NEMA 5-20R, three-wire, red
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZTR6362SCRD
UPC
032664012181
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Red
Feature: 20A, 125 Vac, 60 Hz operation. Business Impact: Enables reliable power delivery for standard commercial and light-industrial loads, reducing nuisance trips and wiring complexity. Application: Offices, labs, and shop floors benefiting from consistent outlet performance. Feature: NEMA 5-20R, three-wire configuration. Business Impact: Ensures full compatibility with common plug-types and safe grounding, lowering retrofit risk. Application: Replacements and new installs where dependable single-phase power is required. Feature: Tamper-resistant construction. Business Impact: Improves safety in high-traffic environments and safety-critical equipment areas, reducing accidental contact. Application: Educational facilities, healthcare-adjacent production lines, and retail spaces. Feature: Split control capability. Business Impact: Provides two wiring paths for flexible control strategies, enabling independent loads or controlled circuits. Application: Industrial automation panels and equipment racks. Feature: Modular EZLink design and red color coding. Business Impact: Speeds installation, simplifies maintenance, and aids circuit identification, lowering downtime and training effort. Application: Retrofit projects and new builds across offices, labs, and manufacturing floors. Certifications and compliance: cULus Listed, NOM, Federal Specification W-C-596G ensure cross-border acceptance and regulatory alignment. Color and form factor support visibility and compact integration into existing enclosures.
Get a Quick Quote for a Eaton EZTR6362SCRD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR6362SCRD?
Enquire Now
FAQs
The EZTR6362SCRD fits standard decorator outlet configurations with a NEMA 5-20R, 20A, 125V, 60 Hz supply. It uses three wires (hot, neutral, ground) and features a compact form factor for easy mounting in typical electrical boxes. When retrofitting, ensure enclosure clearance and proper wiring practices per NEC guidelines.
This receptacle is cULus Listed, NOM certified, and carries Federal Specification W-C-596G. These certifications support cross-border use, safety compliance, and consistent performance in both U.S. and Canadian markets, reducing regulatory risk on project timelines.
While the device is tamper-resistant and rated for 20A at 125V, designers should assess critical-load requirements. The split control option and modular EZLink platform support versatile wiring schemes and easier upgrades, but dedicated critical power or data-center deployments may require additional redundancy or dedicated circuits.
Split control provides two independent wiring paths within the same decorator receptacle, enabling versatile control arrangements for different loads or circuits. This can simplify circuit management during retrofits and allows safer isolation of critical vs. non-critical equipment without extra hardware.
Modular EZLink devices standardize outlets across facilities, reducing spare parts variety and simplifying replacements. The combination of tamper resistance, clear color signaling, and reliable 20A/125V performance lowers downtime, improves compliance, and accelerates installation—driving lower total cost of ownership over time.
