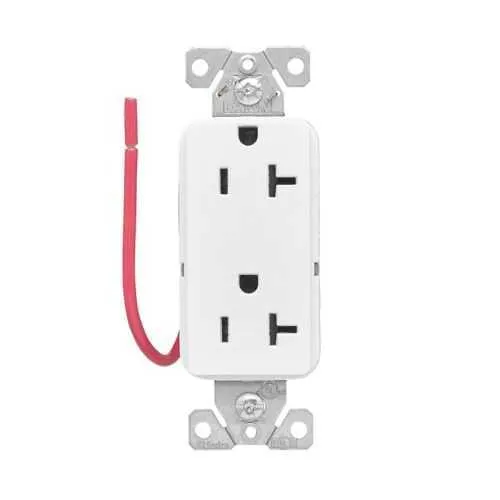

Eaton EZTR6362SCW decorator receptacle - cULus Listed
Part Number: EZTR6362SCW
Quick Summary
Eaton EZTR6362SCW modular decorator receptacle delivers 20A, 125V power for clean, reliable point-of-use outlets. In busy facilities, inconsistent wiring and limited space can complicate safe installations and extend project timelines. It carries cULus Listed, NOM, and Federal Specification W‑C‑596G certifications to support code compliance across commercial, industrial, and laboratory environments. The design emphasizes ease of installation and field replacement, with tamper-resistant construction, NEMA 5-20R configuration, and split control to tailor loads and reduce energy waste in shared outlets. Engineered for compatibility with Eaton EZLink modular devices, it simplifies panel upgrades and reduces inventory complexity for procurement teams. Its compact footprint also supports dense panel layouts and reduces wiring congestion.
Product Information
Extended Description
EZTR6362SCW Eaton: Eaton EZLink modular decorator receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, split control, NEMA 5-20R, three-wire, white
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZTR6362SCW
UPC
032664012204
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
White
Feature: 20A, 125V rating with NEMA 5-20R configuration. Business Impact: Handles typical high-load devices while preserving headroom for startup currents, reducing nuisance trips and rework. Application: Ideal for control panels, labs, and workstations needing reliable, easily accessible power outlets. Feature: Tamper-resistant, three-wire (hot, neutral, ground) design. Business Impact: Enhances safety and helps meet NEC tamper-resistance requirements, lowering risk of accidental contact in high-traffic areas. Application: Shared equipment and public work areas in manufacturing, testing labs, and training rooms. Feature: Split control capability. Business Impact: Allows independent load management on a single decorator receptacle, improving energy efficiency and reducing peak demand. Application: Machine controls and bench setups where distinct circuits require selective power. Feature: EZLink modular compatibility and compact form. Business Impact: Streamlines panel customization and reduces installation time while easing inventory management. Application: Quick field replacements and scalable electrical infrastructure in new builds or retrofit projects. Feature: Certifications and build quality. Business Impact: cULus Listed, NOM, and W‑C‑596G compliance minimize qualification testing and support cross‑market deployment. Application: Environments with varied regulatory requirements including commercial, industrial, and education sectors.
Get a Quick Quote for a Eaton EZTR6362SCW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR6362SCW?
Enquire Now
FAQs
EZTR6362SCW supports standard decorator mounting and is designed to integrate with EZLink modular devices, enabling quick field replacements. It uses a NEMA 5-20R configuration on a 20A, 125V circuit with three conductors (hot, neutral, ground). Expect simple wiring in typical 14 AWG copper runs and secure mounting in compatible electrical boxes. This setup minimizes downtime and simplifies future panel upgrades.
The receptacle is rated for 20A at 125V and 60 Hz, with tamper-resistant construction to reduce insertion or contact hazards. It employs a three-wire configuration (hot, neutral, ground) and a NEMA 5-20R outlet. Safety certifications include cULus Listed, NOM, and Federal Specification W-C-596G, supporting compliance in diverse environments.
Yes. Its modular decorator design and compact footprint are well-suited for dense panel layouts in commercial facilities, laboratories, and service desks. The 1.91 in depth and 1.75 in width help maximize panel density while preserving access for testing. The split-control capability adds flexibility for load management in multi-outlet setups.
EZTR6362SCW is cULus Listed and NOM certified, with Federal Specification W-C-596G. These certifications indicate compliance with recognized safety and performance standards in North America, facilitating regulatory approval and reducing qualification testing for diverse applications in industry, education, and commercial spaces.
The modular, tamper-resistant design supports rapid field replacement and straightforward maintenance, minimizing downtime during plug-in or circuit changes. Split control and compatibility with EZLink devices help optimize energy use and simplify stocking of replacement parts, contributing to lower lifecycle costs and improved total cost of ownership.
