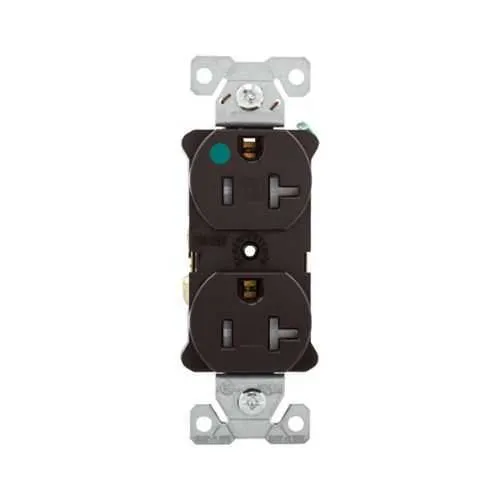

Eaton EZTR8300B EZLink duplex Receptacle - cULus Listed
Part Number: EZTR8300B
Quick Summary
Eaton EZTR8300B EZLink duplex Receptacle is a modular power outlet designed for fast, reliable 20 A connections in control panels and electrical enclosures. Deployment in crowded panels, where wiring errors cost time, is simplified by its compact footprint and tamper-resistant three-wire configuration. The product carries cULus Listed status, Federal Specification W-C-596G compliance, and NOM certification, reinforcing safety and regulatory alignment. For procurement teams, the modular EZLink approach translates to easier stocking and faster replacements across facilities, delivering predictable performance and reduced downtime.
Product Information
Extended Description
EZTR8300B Eaton: Eaton EZLink modular duplex HG receptacle, 20 A, 125 Vac, 60 Hz, brown, three-wire, tamper-resistant
Product Name
Eaton EZLink modular duplex HG receptacle
Catalog Number
EZTR8300B
UPC
032664015922
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
Feature: Modular EZLink architecture enables quick, drop-in integration with existing Eaton devices, eliminating extended wiring runs. Business Impact: This reduces commissioning time and wiring errors, improving first-pass assembly in panel builds. Application: Ideal for control panels and electrical enclosures in manufacturing environments that demand fast, reliable power distribution. Feature: Tamper-resistant three-wire design enhances personal safety and code compliance by preventing accidental contact and miswiring. Business Impact: Lowers risk of compliance failures and field-service callbacks. Application: Used in hazardous or high-traffic industrial areas where operator safety matters and audits are frequent. Feature: 20A at 125Vac rating supports typical automation loads without oversized breakers. Business Impact: Reduces breaker coordination headaches and enables compact distribution schemes. Application: Machine feeds and control circuits in assembly lines. Feature: Compact footprint with modular compatibility across EZLink devices offers installation efficiency in dense panels. Business Impact: Saves space, simplifies stocking, and allows faster retrofits. Application: New builds and panel upgrades in space-constrained control cabinets. Feature: Certifications W-C-596G, NOM, cULus Listed confirm regulatory compliance. Business Impact: Streamlines inspections, reduces need for alternate devices, and improves vendor credibility. Application: Regulated facilities in North America, including manufacturing and process industries.
Get a Quick Quote for a Eaton EZTR8300B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR8300B?
Enquire Now
FAQs
EZTR8300B is engineered for seamless panel interconnections within Eaton's EZLink modular ecosystem. It supports a 20A, 125Vac supply and a three-wire configuration, enabling straightforward alignment with other EZLink components. When planning a retrofit or new build, verify enclosure clearance, mounting orientation, and connector spacing to maintain clean wiring paths and avoid interference with adjacent devices.
The receptacle carries cULus Listed status, NOM, and Federal Specification W-C-596G. These marks indicate compliance with North American safety and quality standards, facilitating inspection approvals and regulatory audits. Always reference the catalog number EZTR8300B on documentation and ensure device labeling matches site requirements to streamline procurement and maintenance.
Yes. Its modular EZLink design and compact footprint support dense panel layouts, reducing wiring complexity while maintaining reliable 20A, 125Vac performance. The three-wire, tamper-resistant configuration enhances safety in busy enclosures. For high-density applications, plan for adequate clearance around the receptacle and ensure compatibility with nearby modules to prevent thermal or mechanical clashes.
The modular design standardizes interfaces across EZLink devices, which shortens wiring tasks and minimizes miswiring risk. Efficient field wiring and predictable connector layouts accelerate commissioning, reducing labor hours and training requirements. Over multiple sites, this translates to faster rollouts, fewer variant parts to stock, and a lower total cost of ownership.
ROI comes from reduced downtime, faster replacements, and simpler procurement due to standardized EZLink modules. Compliance marks expedite inspections, while the tamper-resistant, 20A/125Vac design lowers safety-related risk and rework. Across sites, the ability to source consistent Eaton components reduces lead times and improves maintenance planning and asset longevity.
