Eaton EZTR8300V EZLink modular receptacle - cULus Listed
Part Number: EZTR8300V
Quick Summary
Eaton EZTR8300V EZLink modular duplex HG receptacle provides reliable 20 A, 125 VAC power for industrial control panels. In fast-paced facilities, wiring changes and modular upgrades can slow production; this device is designed to streamline both installation and maintenance. Certifications include Federal Specification W-C-596G, cULus Listed, and NOM, ensuring regulatory alignment in diverse markets. By integrating with the EZLink modular ecosystem, it supports efficient procurement and straightforward field retrofits while enabling consistent color coding and safer, compliant panel designs. This combination delivers durable, code-compliant power distribution with predictable performance over the life of critical systems.
Product Information
Extended Description

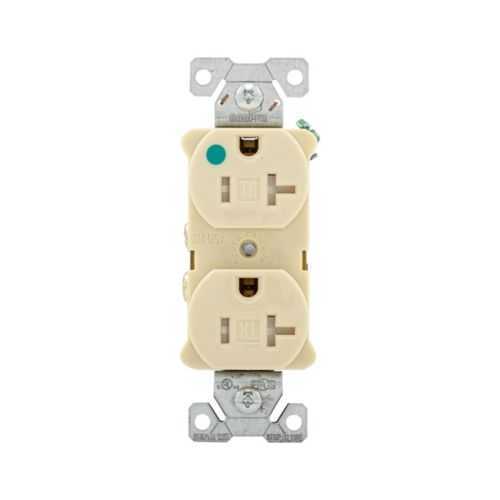

EZTR8300V Eaton: Eaton EZLink modular duplex HG receptacle, 20 A, 125 Vac, 60 Hz, ivory, three-wire, tamper-resistant
Product Name
Eaton EZLink modular duplex HG receptacle
Catalog Number
EZTR8300V
UPC
032664016042
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Ivory
Feature: 20A, 125 VAC rating. Business Impact: Supports standard industrial circuits without the need for oversizing, reducing wiring complexity and heat in panels. Application: Control panels and electrical enclosures requiring reliable 20A power distribution. Feature: Tamper-resistant three-wire design. Business Impact: Enhances safety by preventing non-location-based contact and reinforcing fault isolation, aiding code compliance. Application: Enclosed equipment, machine panels, and public-access installations where safety is critical. Feature: Ivory color and 3-wire configuration. Business Impact: Aesthetically matches enclosures while providing clear ground and neutral wiring paths, simplifying installation and maintenance. Application: Panel boards and modular device assemblies in office- or factory-floor environments. Feature: Certifications—W-C-596G, cULus Listed, NOM. Business Impact: Regulatory assurance for federal and commercial projects, reducing procurement risk and easing audits. Application: Government, healthcare, and process industries requiring solid compliance. Feature: Catalog compatibility with EZLink modular devices. Business Impact: Streamlined stocking and rapid substitutions in retrofit projects, lowering total cost of ownership. Application: Scalable power distribution in modular electrical systems across commercial, data center, and industrial settings.
Get a Quick Quote for a Eaton EZTR8300V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR8300V?
Enquire Now
FAQs
The EZTR8300V is designed as a 20A, 125 VAC three-wire receptacle that fits Eaton EZLink modular devices, providing seamless integration within modular electrical systems. It supports standard panel wiring practices, allows straightforward field retrofits, and helps maintain consistent device-to-device compatibility across a control panel or enclosure.
This receptacle carries Federal Specification W-C-596G, cULus Listed, and NOM certifications. These credentials reassure buyers about safety, reliability, and regulatory compliance for federal, commercial, and international projects, simplifying procurement and audit processes while supporting risk reduction in mission-critical environments.
Tamper-resistant construction minimizes incidental contact with live terminals, reducing the risk of electrical shocks and short circuits in busy industrial environments. This feature helps meet NEC and other safety requirements, particularly in panels accessed by operators or maintenance personnel.
Yes. The EZTR8300V is designed for panel assemblies and enclosure installations in industrial settings, delivering a compact, reliable 20A power source that fits into modular device ecosystems. Its compatibility with standard panel hardware and ease of integration supports scalable, maintainable electrical distribution in machines and control cabinets.
Follow the EZLink modular ecosystem guidelines to ensure consistent wiring practices and color-coding. Use the 3-wire configuration with proper grounding, verify 125 VAC supply is within rating, and select cULus NOM-compliant components. Regularly inspect tamper-resistant features and maintain documentation for certifications to streamline audits and future upgrades.
