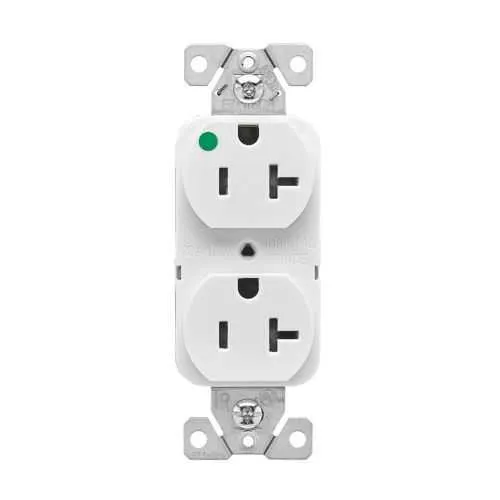

Eaton EZTR8300W EZLink duplex HG receptacle - cULus
Part Number: EZTR8300W
Quick Summary
The Eaton EZLink modular duplex HG receptacle is a 20 A, 125 Vac outlet solution designed for commercial panels and industrial enclosures. Engineers often struggle with tamper-resistant designs and rapid, error-free installation in tight spaces. Certified to Federal Specification W-C-596G, cULus Listed, and NOM, this receptacle meets stringent regulatory and safety requirements. Its compact white housing and modular design simplify stocking, labeling, and routine maintenance, delivering predictable lifecycle costs. With EZLink compatibility and three-wire wiring, installers gain faster wiring, reduced field errors, and improved traceability in demanding environments.
Product Information
Extended Description
EZTR8300W Eaton: Eaton EZLink modular duplex HG receptacle, 20 A, 125 Vac, 60 Hz, white, three-wire, tamper-resistant
Product Name
Eaton EZLink modular duplex HG receptacle
Catalog Number
EZTR8300W
UPC
032664016059
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
White
The receptacle delivers 20 A at 125 V in a three-wire configuration, with tamper-resistant construction. This combination improves safety and compliance, reducing risk of damage or non-conformance in control panels and electrical boxes. Designed for integration with EZLink modular devices, it minimizes wiring errors and speeds panel assembly, delivering consistent quality across high-volume installations. Its compact footprint supports dense panel layouts, enabling more outlets per enclosure and reducing overall cabinet size. The white color enhances visibility for inspections and routine maintenance, while the 032664016059 UPC simplifies asset tracking and replenishment. Federal Spec W-C-596G, NOM, and cULus listings provide regulatory confidence, simplifying procurement and reducing qualification time for projects. Compatibility with three-wire configurations supports modern safety standards and broader device interoperability. Industry professionals appreciate predictable lead times and reduced rework thanks to standardized modular components.
Get a Quick Quote for a Eaton EZTR8300W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR8300W?
Enquire Now
FAQs
The EZTR8300W is designed for standard electrical enclosures and control panels that support modular EZLink devices. It uses a three-wire, 20 A, 125 Vac configuration and offers tamper-resistant protection to meet contemporary safety codes. When wiring, ensure proper terminations within a compatible box, follow product labeling for color and conductor guidance, and confirm compliance with local electrical standards to minimize field rework.
Key specifications include 20 A amperage rating, 125 Vac voltage rating, three-wire configuration, and tamper-resistant construction. The white finish aids visibility, and the UPC 032664016059 supports asset tracking. These factors translate to reliable power delivery, enhanced safety in high-traffic environments, straightforward troubleshooting, and streamlined procurement for panel builders.
Yes. The EZTR8300W is intended for industrial control panels and electrical enclosures where tamper resistance and regulatory compliance are critical. Its compatibility with EZLink modular devices simplifies scalability, while its 125 Vac, 20 A rating covers common industrial loads. For harsh environments, ensure enclosure protection and mounting practices align with site conditions to maintain longevity.
The device carries Federal Specification W-C-596G, cULus Listed, and NOM certifications. These attest to compliance with government and safety standards, provide third-party verification of electrical integrity, and simplify qualification for regulated installations. Certifications help reduce risk during audits and streamline supplier qualification for projects in manufacturing, facilities, and assembly environments.
Expect reduced maintenance time due to tamper-resistant design and clear labeling, and lower stocking complexity through modular EZLink compatibility. The standardized 20 A, 125 Vac specification supports common loads across many panels, reducing the number of distinct parts needed. Over the life of a facility, these factors contribute to faster commissioning, fewer field wiring errors, and predictable lifecycle costs.
