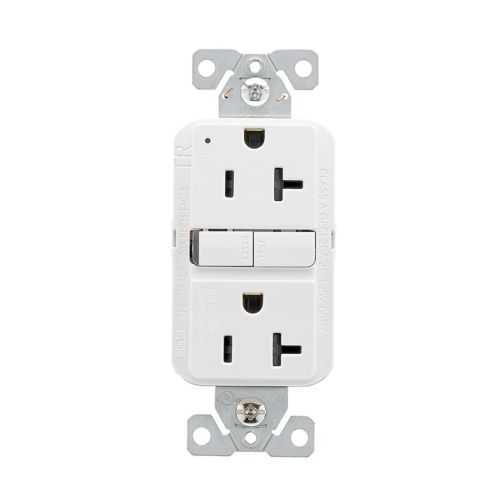

Eaton EZTRGF20W EZLink modular GFCI - cULus Listed
Part Number: EZTRGF20W
Quick Summary
The Eaton EZLink modular GFCI provides reliable ground-fault protection for commercial and industrial outlets and enclosures. Engineers often face nuisance trips and downtime from mismatched devices, complicated wiring, and slow field replacements. This unit carries cULus listing, Federal Specification W-C-596G classification, and NOM, supporting compliance across US, Canada, and Mexico. The modular EZLink platform enables rapid swaps and scalable protection in control panels, switchgear, and equipment housings. Tamper-resistant three-wire configuration, 125 Vac operation, and 20 A rating help meet NEC requirements while protecting critical loads. In practice, panel builders gain installation efficiency, traceable certifications, and predictable performance, reducing service calls and warranty risk.
Product Information
Extended Description
EZTRGF20W Eaton: Eaton EZLink modular GFCI, 20 A, 125 Vac, 60 Hz, white, three-wire, tamper-resistant
Product Name
Eaton EZLink modular GFCI
Catalog Number
EZTRGF20W
UPC
032664023392
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
White
Feature → 20A, 125V operation: The GFCI delivers standard fault protection for commercial and light-industrial outlets, aligning with NEC requirements and supporting high-usage circuits without compromising safety. Application: use in control panels and distribution blocks where dependable GFCI protection is required. Business Impact: reduces nuisance trips and equipment downtime by ensuring consistent fault response. Feature → Three-wire tamper-resistant design: Enhances safety and NEC compliance by preventing improper use and minimizing accidental contact. Application: ideal for enclosures and shared spaces in manufacturing cells. Business Impact: lowers maintenance costs and improves personnel safety. Feature → EZLink modular platform: Supports rapid field replacement and scalable protection across panels. Application: suitable for modular device racks and enclosure interiors. Business Impact: shortens commissioning time and simplifies future upgrades. Feature → Certifications (W-C-596G, cULus Listed, NOM): Documents regulatory alignment and safety assurance. Application: cross-border projects and regulated environments. Business Impact: streamlines procurement and approvals, reducing design changes. Feature → Compact footprint and straightforward integration: Facilitates dense panel layouts and clean wiring. Application: retrofit projects and new builds with space constraints. Business Impact: boosts panel density, lowers installation labor, and simplifies future expansions.
Get a Quick Quote for a Eaton EZTRGF20W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTRGF20W?
Enquire Now
FAQs
Power must be disconnected prior to installation. Connect hot and neutral to the appropriate terminals, secure the three-wire ground reference, and mount the unit within the EZLink chassis or panel door as specified by the EZLink modular devices brochure. Verify 125V, 60Hz supply, and ensure a proper ground before re-energizing the circuit. Refer to Eaton's EZ Link slim GFCI receptacles spec sheet for detailed wiring diagrams.
EZTRGF20W is cULus Listed, includes Federal Specification W-C-596G, and is NOM certified. These certifications ensure North American regulatory alignment, safety performance, and compatibility with code requirements in both the U.S. and Mexican markets. For engineers, this means fewer compliance hurdles during approvals and smoother procurement across regions.
Yes. EZTRGF20W is designed as part of the EZLink modular family and uses the same mounting and wiring concepts as other EZLink devices. This compatibility enables a consistent protection strategy across new builds and retrofit projects, simplifying inventory management and reducing learning curves for maintenance teams onboarding the EZLink ecosystem.
Best suited for control panels, equipment enclosures, and distribution blocks in commercial and light-industrial environments. It’s ideal where 20A circuits require reliable ground-fault protection and tamper-resistant operation, such as manufacturing lines, packaging stations, and utility rooms. The three-wire configuration supports proper grounding practices in field-installed outlets.
The modular design simplifies replacements and upgrades, reducing downtime and labor costs during maintenance. Compliance certifications minimize rework during audits, and the compatibility with the EZLink family supports scalable protection as facilities grow. Overall, expect lower total cost of ownership through faster commissioning, fewer nuisance trips, and easier future panel expansions.
