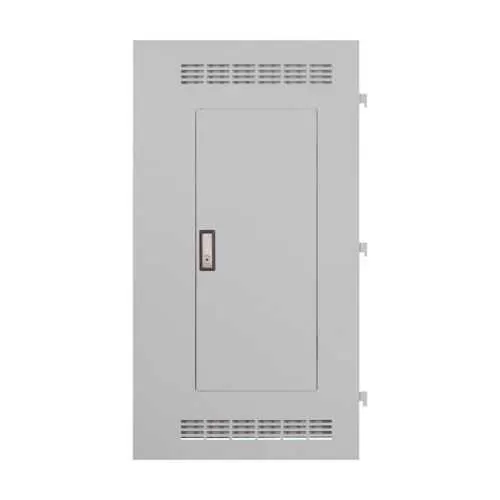

Eaton EZTV2036S Panelboard - UL 67 & NEMA 1 Certified
Part Number: EZTV2036S
Quick Summary
The Eaton EZTV2036S Panelboard is a surface-mounted power distribution solution designed for commercial and light-industrial applications. Engineers often struggle with fitment in tight spaces and lengthy install times that push project schedules. This unit carries UL 67 certification and a NEMA 1 enclosure rating, providing indoor safety and reliable protection for distribution components, while the Pow-R-Xpress EZ Trim design supports faster deployment. For procurement and maintenance teams, the combination of rugged steel construction and a compact footprint translates to lower total cost of ownership and easier stocking within standard part libraries.
Product Information
Extended Description
EZTV2036S Eaton: EATON POW-R-XPRESS EZ TRIM SURFACE VENTED 20x36 STD LOCK KEYED WEM2 PRL1A/2A/3A
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
EZTV2036S
UPC
786689832193
Product Length/Depth
0.5 in
Product Height
36 in
Product Width
20 in
Product Weight
29 lb
Certifications
UL 67
Material
Steel
NEMA rating
NEMA 1
Special features
VENTED TRIM
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Feature: Vented trim improves heat dissipation in enclosed spaces, reducing thermal buildup that can shorten component life. Benefit: This enhances reliability and lowers maintenance costs in dense panel environments. Application: Ideal for the 20x36 EZTV2036S panelboard in lighting and emergency systems where ventilation is limited. Feature: Surface-mounted EZ Trim design enables faster field installation compared with traditional panels. Benefit: Dramatically reduces labor hours and minimizes field errors during commissioning. Application: Retrofit projects and new builds in industrial facilities requiring quick, predictable deployment; this aligns with Eaton's Pow-R-Xpress stocking program. Feature: UL 67 certification with NEMA 1 enclosure rating ensures compliance and indoor suitability. Benefit: Safer installations with code-ready performance; reduces compliance risk. Application: Indoor power distribution for commercial and light-industrial environments. Feature: Lock-keyed STD WEM2 trim option for secure access. Benefit: Minimizes tampering in critical distribution points, improving security policy adherence. Application: Electrical closets and service corridors where restricted access is required. Feature: Solid steel construction and a 29 lb weight support durability with manageable handling. Benefit: Durable performance in vibration-prone spaces and easier on-site transport. Application: Indoor panel assemblies requiring reliable service and straightforward installation. Feature: Generous 20 in width x 36 in height with 0.5 in depth maximizes mounting flexibility. Benefit: Fits standard footprints, reduces space impact, and simplifies integration with existing rack systems. Application: Retrofit layouts and new installations in lighting and emergency systems.
Get a Quick Quote for a Eaton EZTV2036S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTV2036S?
Enquire Now
FAQs
EZTV2036S is a surface-mounted panelboard built to 20x36 inch footprint with vented trim, designed for typical indoor installations. Its dimensions and weight (0.5 in depth, 36 in height, 20 in width, 29 lb) support straightforward mounting in standard electrical rooms and alignment with common rack or enclosure systems.
The EZTV2036S carries UL 67 certification and a NEMA 1 enclosure rating, which are key indicators of safety and indoor suitability. These certifications help ensure regulatory compliance, safer operation, and reduced risk when distributing power in commercial or light-industrial environments.
The EZ Trim design streamlines surface-mounted installation, reducing field labor and errors during commissioning. This translates to shorter project timelines and lower on-site labor costs, especially beneficial for retrofit projects or new builds where quick, predictable deployment is critical.
Yes. Classified under Lighting & Emergency Systems, the EZTV2036S panelboard supports indoor power distribution for lighting and emergency configurations. Its vented trim and robust steel construction help ensure reliable operation in essential utility circuits.
Plan for routine inspections in standard indoor environments, given its NEMA 1 rating and UL 67 certification. The lock-keyed WEM2 trim option adds security for critical distribution points, reducing tampering risk and helping enforce access controls in electrical rooms.
