Eaton EZTV2042S Panelboard - Pow-R-Xpress UL 67 NEMA 1
Part Number: EZTV2042S
Quick Summary
EZTV2042S panelboard from Eaton provides compact power distribution for 20x42 installations in commercial, industrial, and data-center environments. Facility teams struggle with space constraints, vented trim needs, and rapid deployment in crowded electrical rooms. UL 67 certification ensures safety and performance in panelboard assemblies, while a NEMA 1 rating supports indoor, dry-location use. Coupled with Pow-R-Xpress compatibility, this solution accelerates procurement, reduces field wiring complexity, and lowers total cost of ownership for electrical engineers and specifiers. Its steel enclosure and vented trim support reliable performance in demanding environments, while enabling scalable configurations for future expansion.
Product Information
Extended Description

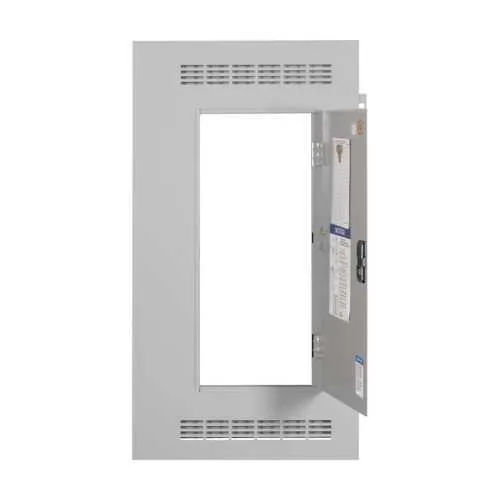

EZTV2042S Eaton: EATON POW-R-XPRESS EZ TRIM SURFACE VENTED 20x42 STD LOCK KEYED WEM2 PRL1A/2A/3A
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
EZTV2042S
UPC
786689832216
Product Length/Depth
0.5 in
Product Height
42 in
Product Width
20 in
Product Weight
36 lb
Certifications
UL 67
Material
Steel
NEMA rating
NEMA 1
Special features
VENTED TRIM
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Vented trim design improves heat dissipation and field reliability, reducing the risk of overheating in dense electrical rooms. This design choice supports safer protection schemes and longer service life for feeders and branch circuits, delivering measurable uptime gains in manufacturing lines and data-center environments. The 20x42 footprint provides a compact yet capable platform for retrofit projects and tight electrical closets, enabling faster installations without sacrificing capacity. Engineers can position the EZTV2042S alongside existing MCCs and switchgear, simplifying space planning and improving overall system reliability. UL 67 and NEMA 1 compliance provide essential safety and performance assurances for indoor installations, helping meet regulatory requirements and customer specs while reducing audit risk. Steel construction with a shallow 0.5 inch depth supports rugged service in challenging environments, maintaining a low-profile appearance and long-term durability on factory floors. Pow-R-Xpress compatibility and standard locking features streamline stocking and field service, shortening procurement cycles and accelerating future upgrades through compatible WEM2 PRL accessories. This combination aligns with industry best practices for scalable, maintenance-friendly power distribution in multi-line facilities.
Get a Quick Quote for a Eaton EZTV2042S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTV2042S?
Enquire Now
FAQs
The EZTV2042S is designed to align with Eaton's Pow-R-Xpress stocking program, enabling rapid procurement and streamlined reorder cycles. This compatibility reduces lead times for panelboard components and related WEM2 PRL accessories, helping electrical teams plan better, avoid stockouts, and accelerate project timelines from proposal through commissioning. Brochures and program guides are available to assist specification and procurement teams during design reviews.
Key specs include a 20x42 inch footprint, 0.5 inch depth, 42 inch height, 20 inch width, and a 36 lb weight. It carries UL 67 certification and a NEMA 1 rating for indoor, dry locations. The Catalog Number is EZTV2042S, with UPC 786689832216. The enclosure material is steel, and the unit features vented trim for heat management and ease of service in crowded electrical rooms.
EZTV2042S is rated for indoor, dry-location use with a NEMA 1 rating. It is not intended for outdoor or damp/wet environments. For harsh locations, consider indoor-infrastructure strategies or alternative enclosures that provide higher ingress protection and climate resilience, while maintaining the benefits of the Pow-R-Xpress distribution approach.
This panelboard is well-suited for commercial and light industrial interior power distribution, where space is at a premium and vented trim is advantageous. It supports scalable configurations for multi-line facilities, warehouses, and manufacturing floors, enabling reliable, organized feeder and branch-circuit distribution with straightforward maintenance and compliance alignment.
Vented trim assists heat dissipation, reducing thermal stress on conductors and breakers, which can lower maintenance costs and extend component life. Ensure adequate clearance around the panel and proper airflow. Leverage WEM2 PRL1A/2A/3A configurations for straightforward lock-keyed installations, and align with Pow-R-Xpress stocking to minimize on-site waits and accelerate commissioning.
