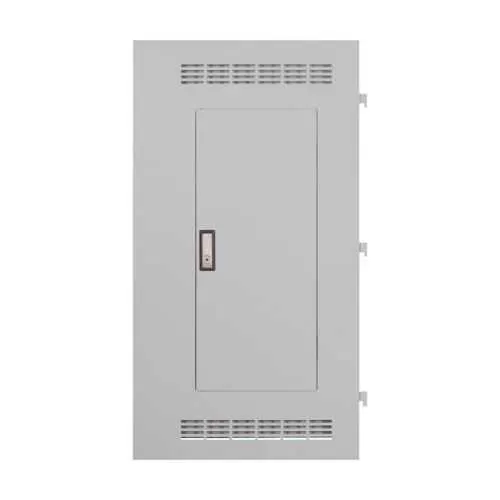

Eaton EZTV2072S Pow-R-Xpress Panelboard - UL 67 Certified
Part Number: EZTV2072S
Quick Summary
The Eaton EZTV2072S Pow-R-Xpress panelboard provides fast, modular distribution for small-to-medium electrical systems. In retrofit projects or new builds, limited space and wiring complexity can slow deployment and inflate costs. It carries UL 67 certification and a NEMA 1 enclosure rating, underscoring safety and rugged operation in industrial environments. Built to integrate with Pow-R-Xpress quick selector resources, it enables engineers to specify a scalable low-voltage solution while reducing commissioning time and total cost of ownership. For maintenance teams, the robust steel enclosure and straightforward wiring routes minimize downtime during upgrades. The design aligns with industry best practices for safety, permitting faster audits and easier documentation.
Product Information
Extended Description
EZTV2072S Eaton: EATON POW-R-XPRESS EZ TRIM SURFACE VENTED 20x72 STD LOCK KEYED WEM2 PRL1A/2A/3A
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
EZTV2072S
UPC
786689832278
Product Length/Depth
0.5 in
Product Height
72 in
Product Width
20 in
Product Weight
64 lb
Certifications
UL 67
Material
Steel
NEMA rating
NEMA 1
Special features
VENTED TRIM
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Feature: Vented trim design. It improves airflow around energized components, reducing heat buildup and distributing heat more evenly across the panel. This translates to longer life for contactors and breakers and fewer premature replacements in high-heat environments. Application: Ideal for control panels in manufacturing lines, packaging, and process plants where enclosure temperatures regularly exceed ambient levels. Business impact: lowers thermal stresses, extends component life, and reduces maintenance costs in demanding facilities. Feature: Ultra-thin 0.5 inch depth with surface-trim mounting. This slim profile makes retrofits feasible in confined electrical rooms and on existing rack assemblies, reducing disruption and downtime. Business impact: lowers installation labor, minimizes new opening requirements, and simplifies cable routing around adjacent equipment. Application: fits retrofit projects in automotive, electronics assembly, and facility upgrades. Feature: Large 20x72 inch footprint and a robust steel enclosure weighing 64 pounds. The substantial dimensions provide ample space for bus connections, terminal blocks, and modular accessories while maintaining rigidity in harsh environments. Business impact: reduces need for additional cabinets and supports straightforward wire management. Application: common in mid-to-large control panels in water treatment, food and beverage, and packaging lines. Feature: UL 67 certification and NEMA 1 enclosure rating. This ensures indoor dry-location suitability and compliance with recognized safety standards. Business impact: accelerates acceptance testing, supports regulatory compliance, and reduces risk during audits. Application: ideal for commercial and light industrial panel installations where safety and reliability are priorities. Feature: Compatibility with Pow-R-Xpress quick selector references and Eaton brochures. This enables faster specification, quoting, and configuration within Eaton’s panelboard ecosystem. Business impact: shortens project timelines, improves BOM accuracy, and lowers total cost of ownership. Application: engineers and distributors seeking scalable, standard-compliant low-voltage distribution solutions.
Get a Quick Quote for a Eaton EZTV2072S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTV2072S?
Enquire Now
FAQs
EZTV2072S is designed as a surface-trim, vented panelboard with a 20x72 inch footprint and 0.5 inch depth, enabling easier mounting in tight spaces. Its steel construction and UL 67/NEMA 1 ratings support reliable operation in indoor industrial environments, while its compact form simplifies wiring routes and reduces field modification time.
EZTV2072S carries UL 67 certification and a NEMA 1 enclosure rating, indicating electrical safety compliance and indoor dry-location suitability. These certifications reduce risk during audits, simplify procurement approvals, and help ensure safe operation within standard low-voltage distribution installations.
Yes. The vented trim design improves airflow around energized components, lowering heat buildup in dense panels. Combined with a steel enclosure, it supports stable performance and longer component life in industrial settings where heat management is critical.
Key specs include a 0.5 inch depth, 72 inch height, and 20 inch width, with a 64 lb weight. The UL 67 and NEMA 1 ratings apply to indoor dry locations, making it a robust choice for mid-to-large control panels without requiring additional external enclosures.
EZTV2072S integrates with Pow-R-Xpress quick selector guides and Eaton brochures, enabling faster specification, quoting, and configuration. This ecosystem reduces design errors, shortens lead times, and lowers total cost of ownership for projects requiring scalable, standard-compliant low-voltage distribution solutions.
