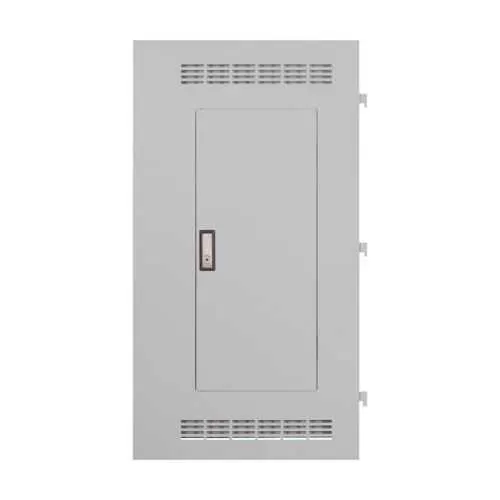

Eaton EZTV2090F Panelboard - UL 67, NEMA 1, Vented Trim
Part Number: EZTV2090F
Quick Summary
Eaton Pow-R-Xpress EZTV2090F panelboard is a compact, code-compliant power distribution solution for mid-size industrial control panels. Installers often battle space constraints and the need to meet UL 67 and NEMA 1 requirements without sacrificing performance. UL 67 certification and a NEMA 1 enclosure rating support safe operation in indoor environments, while the vented trim streamlines cooling and service access. Designed to align with Eaton's Pow-R-Xpress stocking program, it helps reduce inventory and procurement lead times, delivering cost savings and faster project kick-offs. The EZTV2090F's 20 by 90 inch footprint and 88-pound weight support scalable installations in a variety of industrial environments.
Product Information
Extended Description
EZTV2090F Eaton: EATON POW-R-XPRESS EZ TRIM FLUSH VENTED 20x90 STD LOCK KEYED WEM2 PRL1A/2A/3A
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
EZTV2090F
UPC
786689832308
Product Length/Depth
0.5 in
Product Height
90 in
Product Width
20 in
Product Weight
88 lb
Certifications
UL 67
Material
Steel
NEMA rating
NEMA 1
Special features
VENTED TRIM
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature: Vented trim and steel enclosure. Business Impact: The vented trim enhances thermal performance and airflow management, reducing the risk of overheating in densely populated panels and minimizing derating requirements. This translates to longer component life, fewer mid-project failures, and lower maintenance costs. Application: Particularly beneficial for indoor industrial control panels housing motor starters, drives, and logic modules where space is at a premium and cooling is critical. Feature: UL 67 certification and NEMA 1 enclosure. Business Impact: Provides validated compliance and proven protection for dry indoor environments, easing audits and customer acceptance. This reduces project risk and accelerates commissioning. Application: Suitable for manufacturing floors, automotive assembly lines, or process facilities requiring dependable protection and traceability of standards in a compact footprint. Feature: Catalog EZTV2090F, dimensions 20 by 90 inches, depth 0.5 inches, and weight 88 pounds. Business Impact: Precise fit planning minimizes fabrication, reduces installation time, and simplifies mounting alignment, resulting in lower labor costs. Application: Ideal for retrofit or new-build installations where wall space is limited and exact mounting tolerances are needed, such as control room panels and wall-mounted distribution enclosures. Feature: Vented trim design for service access. Business Impact: Quick lid access speeds maintenance, instrumentation changes, and wiring updates, cutting downtime and boosting overall equipment uptime. Application: Active commissioning environments and production lines that frequently reconfigure control schemes or add I/O cards. Feature: Pow-R-Xpress stocking program compatibility. Business Impact: Inventory optimization and shorter lead times through a targeted stocking program, reducing capital tied in spare parts. Application: Project-driven builds across facilities that require rapid procurement and predictable scheduling, aligning with just-in-time manufacturing and maintenance planning.
Get a Quick Quote for a Eaton EZTV2090F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTV2090F?
Enquire Now
FAQs
EZTV2090F is designed to work within Eaton's Pow-R-Xpress ecosystem, featuring a 20 x 90 inch footprint, vented trim, and compatibility with typical PRL-series trim configurations. This alignment enables streamlined procurement, standardized wiring practices, and faster on-site assembly while maintaining UL 67 and NEMA 1 compliance for indoor installations.
Key specifications include Catalog EZTV2090F, dimensions 20 inches wide by 90 inches high, depth 0.5 inches, and weight 88 pounds. Construction is steel with a vented trim, UL 67 certification, and NEMA 1 enclosure rating, suitable for indoor dry locations requiring dependable protection.
EZTV2090F is rated for indoor dry locations with a NEMA 1 enclosure, which provides basic protection against light dust and incidental contact. It is not intended for outdoor or heavily dust-prone environments. For higher protection, consider enclosures with higher NEMA ratings and ensure proper environmental controls.
Pow-R-Xpress compatibility reduces spare-part inventory and lead times by aligning with Eaton's stocking program. This translates to faster procurement, predictable delivery schedules, and quicker project kick-offs, which in turn lowers carrying costs and minimizes downtime during panel upgrades or expansions.
EZTV2090F carries UL 67 certification and a NEMA 1 enclosure rating, ensuring electrical safety and indoor protection for distribution equipment. These standards simplify customer audits, qualify the panelboard for a wide range of industrial applications, and support reliable performance in controlled environments.
