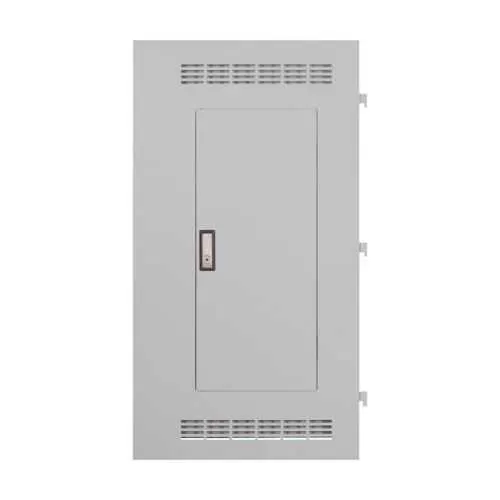

Eaton EZTV2090S Panelboard - Pow-R-Xpress, UL 67
Part Number: EZTV2090S
Quick Summary
EZTV2090S panelboard from Eaton delivers compact power distribution for industrial control panels. Operators and engineers often wrestle with tight spaces and costly maintenance when upgrading panel infrastructure. UL 67 certification and a NEMA 1 enclosure rating support safe indoor operation, while robust steel construction resists industrial wear. Designed for tight installations, the EZTV2090S integrates with Pow-R-Xpress stocking programs to reduce footprint and installation time. In practice, it supports clean, organized wiring with a standard 20x90 footprint, vented trim for heat dissipation, and surface-mount flexibility. This combination translates into faster project execution, lower field labor, and improved system reliability for critical lighting and emergency applications.
Product Information
Extended Description
EZTV2090S Eaton: EATON POW-R-XPRESS EZ TRIM SURFACE VENTED 20x90 STD LOCK KEYED WEM2 PRL1A/2A/3A
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
EZTV2090S
UPC
786689832292
Product Length/Depth
0.5 in
Product Height
90 in
Product Width
20 in
Product Weight
81 lb
Certifications
UL 67
Material
Steel
NEMA rating
NEMA 1
Special features
VENTED TRIM
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature: Vented trim and surface-mount capability enable efficient heat management and quick access for field servicing. Business impact: Heat management reduces derating and unplanned downtime, while surface-mount wiring simplifies installation in crowded panels. Application: Ideal for lighting and emergency systems enclosures in commercial and light-industrial installations. Feature: UL 67 listed construction with a NEMA 1 enclosure. Business impact: Meets common safety standards and regulatory compliance; supports indoor use in harsh environments. Application: Suitable for control panels in manufacturing, buildings automation, and energy management. Feature: 20x90 footprint with 0.5 in depth. Business impact: Save cabinet space and accelerate retrofits; lighter footprint enhances space planning and reduces enclosure costs. Application: Retrofit projects, new builds where cabinet clearance is limited. Feature: Pow-R-Xpress stocking program compatibility. Business impact: Shorter lead times and predictable inventory; streamline procurement for maintenance and projects. Application: Factory stocking programs, distributors, and engineering teams seeking faster deployment. Feature: Steel construction and 81 lb weight. Business impact: Robust performance in industrial environments; improved rigidity and vibration resistance. Application: Enclosures in manufacturing plants, warehouses, and commercial sites with moderate vibration.
Get a Quick Quote for a Eaton EZTV2090S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTV2090S?
Enquire Now
FAQs
The EZTV2090S is designed for surface-mounted, indoor control panel installations with vented trim, 20x90 footprint, and a UL 67/NEMA 1 rating, making it suitable for commercial and light-industrial environments.
It carries UL 67 certification and a NEMA 1 enclosure rating, confirming compliance for indoor power distribution panels and protection against basic environmental hazards.
Height is 90 inches, width 20 inches, depth 0.5 inches, with a weight of 81 pounds, providing a compact yet robust enclosure for space-constrained panels.
Ideal for lighting and emergency system panels in commercial and light-industrial settings, where compact footprint and reliable indoor performance are required.
Pow-R-Xpress stock compatibility reduces lead times and simplifies procurement, accelerating project timelines and enabling faster field installations with reliable availability.
