Eaton EZTV2836F Pow-R-Xpress Panelboard - UL 67 / NEMA 1
Part Number: EZTV2836F
Quick Summary
Eaton EZTV2836F Pow-R-Xpress Panelboard delivers compact power distribution for commercial and light-industrial facilities. Installing large, custom panelboards can be time-consuming, expensive, and prone to field wiring errors. UL 67, NEMA 1, and steel construction underpin reliable indoor performance, while vented trim helps with heat management in enclosed spaces. Designed to align with Pow-R-Xpress quick selector references, this panelboard enables faster deployment and reduced field labor, delivering better project economics for OEMs and integrators alike.
Product Information
Extended Description

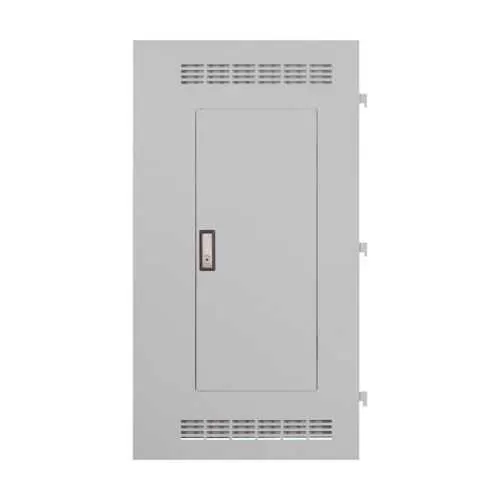

EZTV2836F Eaton: EATON POW-R-XPRESS EZ TRIM FLUSH VENTED 28 x 36
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
EZTV2836F
UPC
786689675226
Product Length/Depth
0.5 in
Product Height
36 in
Product Width
28 in
Product Weight
36 lb
Certifications
UL 67
Material
Steel
NEMA rating
NEMA 1
Special features
VENTED TRIM
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Feature: UL 67 certified panelboard with a steel enclosure offers proven electrical safety and robust protection in indoor environments. Business impact: ensures code compliance and long-term reliability while reducing risk during inspections. Application: ideal for commercial electrical rooms and light-industrial control panels where reliability matters. Feature: Dimensions of 36 in height by 28 in width with a 0.5 in depth deliver a compact, space-efficient footprint. Business impact: enables easier fitment in tight spaces and simplifies cabinet or wall-mount installations. Application: suitable for retrofit projects and new builds with constrained footprints. Feature: Vented trim enhances heat dissipation and airflow within the enclosure. Business impact: reduces heat-related derating and extends component life, lowering maintenance costs. Application: beneficial for lighting, emergency systems, and power distribution in enclosed electrical rooms. Feature: Compatibility with Pow-R-Xpress quick selector references supports fast specification and procurement. Business impact: shortens engineering time, lowers labor costs, and accelerates project timelines. Application: streamlines panelboard selection for low-voltage distribution across facilities. Feature: Steel construction with NEMA 1 rating provides sturdy indoor protection and environmental resilience. Business impact: delivers durable performance in dry indoor locations, ensuring ongoing service continuity. Application: ideal for manufacturing floors, data centers, and facility distribution panels.
Get a Quick Quote for a Eaton EZTV2836F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTV2836F?
Enquire Now
FAQs
The EZTV2836F Pow-R-Xpress panelboard is designed for indoor dry locations, featuring a steel enclosure with a NEMA 1 rating and UL 67 certification. It is well suited for electrical rooms in commercial buildings, light-industrial facilities, and service panels where reliable indoor power distribution is required. Its vented trim helps manage heat in confined spaces, supporting longer-term performance.
EZTV2836F has a height of 36 inches, a width of 28 inches, and a depth of 0.5 inches, with a total weight of 36 pounds. This compact footprint facilitates installation in restricted spaces and supports straightforward mounting in standard electrical rooms or cabinet cavities.
Yes. EZTV2836F is designed to align with Eaton’s Pow-R-Xpress quick selector reference materials, enabling rapid specification and procurement. This compatibility helps reduce engineering time, streamline ordering, and ensure correct panelboard configurations for low-voltage distribution projects.
EZTV2836F carries UL 67 certification and a NEMA 1 enclosure rating. UL 67 confirms electrical safety and performance for panelboards, while NEMA 1 ensures suitable indoor protection against dust and incidental contact. Together, they support code compliance and dependable operation in indoor service and lighting panels.
The panelboard delivers faster installation through compact dimensions and vented trim, reduces field labor via compatible quick-selector guides, and improves reliability with UL 67 and NEMA 1 protection. These factors translate to shorter project timelines, lower total installed cost, and more predictable maintenance for facilities and OEM installations.
