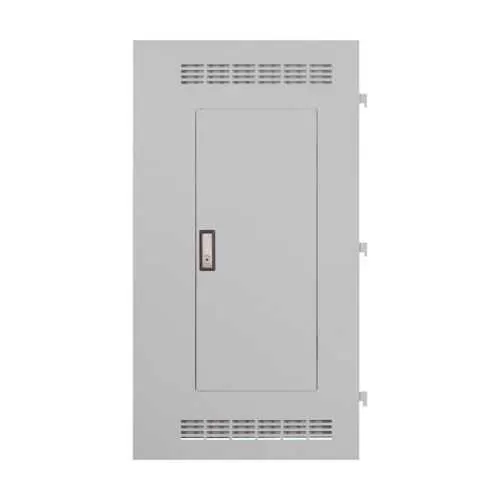

Eaton EZTV2836S Panelboard - UL 67, NEMA 1 Vented Trim
Part Number: EZTV2836S
Quick Summary
Eaton EZTV2836S Panelboard is a vented-trim surface-mount panelboard for indoor electrical distribution. Facilities often struggle with space constraints and lengthy install times when retrofitting older rooms, risking project delays. This unit carries UL 67 certification and a NEMA 1 rating, reinforcing safety and reliability in standard indoor environments. As part of the Pow-R-Xpress family, it delivers a compact footprint and straightforward installation, supporting faster procurement and scalable power distribution for commercial and light-industrial applications. Engineers appreciate the vented trim for improved cooling and cable routing in constrained spaces, reducing ductwork and making field wiring more predictable. Its rugged steel construction and compact dimensions also ease project logistics during site surveys and deliveries.
Product Information
Extended Description
EZTV2836S Eaton: EATON POW-R-XPRESS EZ TRIM SURFACE VENTED 28x36
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
EZTV2836S
UPC
786689832315
Product Length/Depth
0.5 in
Product Height
36 in
Product Width
28 in
Product Weight
29 lb
Certifications
UL 67
Material
Steel
NEMA rating
NEMA 1
Special features
VENTED TRIM
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Feature: Vented-trim design enables improved heat management and cable routing in tight spaces. Benefit: Reduces temperature rise within the panelboard, helping maintain performance and prolonging component life during peak loads. Application: Ideal for compact office, retail, and light-industrial applications where space is at a premium and airflow is limited. Feature: Surface-mounted 28x36 footprint with a shallow 0.5 in depth. Benefit: Simplifies installation against walls or existing enclosures, enabling faster deployment and cleaner aesthetics. Application: Retrofit projects and new-build commercial spaces with restricted wall profiles. Feature: Steel construction with NEMA 1 protection and UL 67 certification. Benefit: Delivers durable indoor reliability with compliance to wiring codes, reducing maintenance cost and risk. Application: Indoor distribution panels in dusty or dry environments such as break rooms, workshops, and light manufacturing. Feature: Pow-R-Xpress quick selector references. Benefit: Shortens part selection and procurement cycles, lowering design-to-install lead times. Application: Design-build and contractor-led projects needing rapid configuration for low-voltage distribution. Feature: Indoor-rated, vented-trim panel design supports safer, neater installations. Benefit: Improves wiring discipline and reduces thermal hotspots, contributing to overall system efficiency. Application: New construction and renovations in commercial facilities seeking reliable, scalable power distribution.
Get a Quick Quote for a Eaton EZTV2836S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTV2836S?
Enquire Now
FAQs
Yes. The EZTV2836S is part of the Pow-R-Xpress family and aligns with Eaton's quick selector references. You can use the guide to rapidly determine compatible accessories, mounting options, and sizing for a 28x36 panelboard with vented trim, reducing design time and procurement cycles.
Key specs include a 28x36 inch footprint, a shallow 0.5 inch product depth, and a weight of approximately 29 pounds. The cabinet is steel and designed for indoor use, with a NEMA 1 rating and UL 67 certification to support compliance in standard environments.
Yes. The panelboard carries NEMA 1 protection and UL 67 certification, making it appropriate for indoor commercial spaces such as offices, retail, and light manufacturing where indoor dust control is typical and ventilation is needed.
The EZTV2836S is UL 67 certified and features a NEMA 1 rating. UL 67 confirms electrical safety for panelboards, while NEMA 1 supports indoor protection against dust and simple ingress, helping with code compliance in standard rooms.
The vented trim and compact footprint streamline installation, routing, and cooling, which reduces field labor and ductwork. The steel construction enhances durability, and the Pow-R-Xpress program speeds part selection, collectively contributing to faster project completion and lower lifecycle costs.
