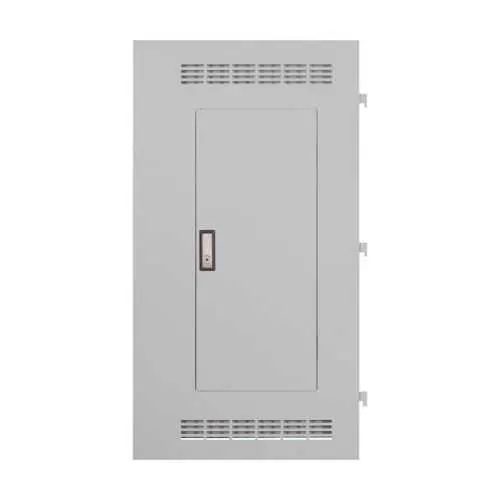

Eaton EZTV2860S Panelboard - UL 67, NEMA 1 Surface Trim
Part Number: EZTV2860S
Quick Summary
The Eaton EZTV2860S Panelboard is a compact, surface-trim panelboard designed for data centers and commercial electrical rooms. With space constraints a common challenge, this model reduces footprint and simplifies mounting while preserving service access. UL 67 certification and a NEMA 1 enclosure rating provide reliable protection in standard electrical rooms, ensuring compliance and predictable performance. By aligning with the Pow-R-Xpress family, it enables fast assemblies and phased deployment, supporting scalable power distribution. This combination delivers immediate value through lower installation risk and longer lifecycle reliability for critical facilities.
Product Information
Extended Description
EZTV2860S Eaton: EATON POW-R-XPRESS EZ TRIM SURFACE VENTED 28x60
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
EZTV2860S
UPC
786689832346
Product Length/Depth
0.5 in
Product Height
60 in
Product Width
28 in
Product Weight
48 lb
Certifications
UL 67
Material
Steel
NEMA rating
NEMA 1
Special features
VENTED TRIM
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Ventilated trim design delivers improved thermal management, reducing cabinet temperature rise and extending component life, which translates to lower maintenance costs and higher system availability in data centers and industrial facilities. The compact 28x60 footprint and surface-trim format save valuable floor and wall space, accelerating installation and allowing easier retrofits in tight electrical rooms. UL 67 and NEMA 1 enclosure ratings provide robust compliance and protection for standard commercial and light industrial environments, reducing regulatory risk and enabling smoother audits. Steel construction offers durable enclosure integrity, supporting longer service intervals and resistance to industrial wear in manufacturing plants. The EZTV2860S integrates with the Pow-R-Xpress family for standardized feeder connections and faster part substitutions, delivering measurable time-to-commission and project efficiency. Its modest 0.5 in depth helps minimize protrusion in shallow cabinets, while a 48 lb weight eases handling by field technicians. Overall, the design emphasizes reliability, installability, and future-proofing for scalable power distribution.
Get a Quick Quote for a Eaton EZTV2860S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTV2860S?
Enquire Now
FAQs
EZTV2860S uses a compact 28x60 footprint with a 0.5 inch depth and surface-trim design, which fits shallow enclosures and wall-mounted spaces. Verify mounting rails and clearance for service access, and confirm that the enclosure supports UL 67 and NEMA 1 requirements. Prepare feeder connections in accordance with Pow-R-Xpress guidelines to streamline wiring and reduce inspection delays.
The panelboard is constructed in steel with a NEMA 1 enclosure and UL 67 certification, ensuring standard protection in typical electrical rooms. While current rating details are not provided here, the unit is designed for power distribution within the Pow-R-Xpress family, offering reliable mechanical integrity, ease of installation, and compatibility with common feeder configurations used in data centers and light industrial applications.
Yes. The vented trim, compact surface-trim configuration, and UL 67/NEMA 1 protection make EZTV2860S well-suited for data centers and commercial electrical rooms where space is at a premium and reliable power distribution is required. Its compatibility with Pow-R-Xpress components supports scalable deployments and phased wiring strategies commonly used in IT and facility infrastructure.
EZTV2860S carries UL 67 certification and a NEMA 1 enclosure rating, indicating protection for standard indoor electrical environments. These certifications matter because they validate enclosure integrity and safety for typical building systems, facilitating code compliance, inspections, and insurance requirements in commercial and light industrial installations.
The ROI comes from space savings, faster installation, and easier future upgrades. The 28x60 surface-trim footprint reduces footprint and labor time, while steel construction and UL/NEMA compliance lower maintenance and risk. Technicians benefit from easier wiring access and standardization with Pow-R-Xpress, accelerating commissioning and reducing project timelines.
