Eaton EZTV2890S Panelboard - UL 67 Certification
Part Number: EZTV2890S
Quick Summary
Eaton EZTV2890S Panelboard delivers compact power distribution for industrial and commercial electrical rooms. Engineers often struggle with limited space and long lead times when deploying new panelboards, especially in retrofit projects. This unit carries UL 67 certification and a NEMA 1 enclosure rating, with a vented trim designed for indoor use. By aligning with Eaton's Pow-R-Xpress stocking program, it enables faster procurement and scalable power control, supporting both new installations and future expansions in demanding facilities.
Product Information
Extended Description

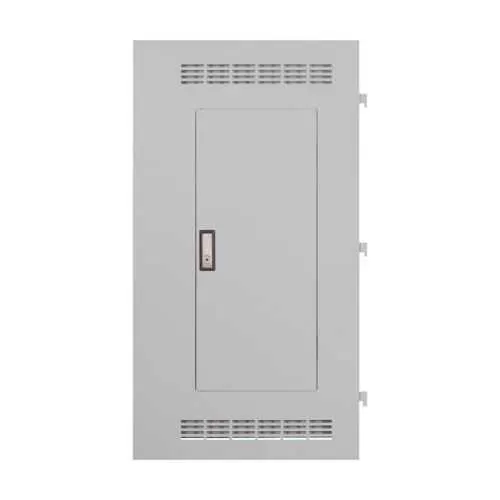

EZTV2890S Eaton: EATON POW-R-XPRESS EZ TRIM SURFACE VENTED 28x90
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
EZTV2890S
UPC
786689832360
Product Length/Depth
0.5 in
Product Height
90 in
Product Width
28 in
Product Weight
81 lb
Certifications
UL 67
Material
Steel
NEMA rating
NEMA 1
Special features
VENTED TRIM
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature: 28x90 footprint with surface-vented trim; Business Impact: maximizes usable room and improves heat management in confined spaces; Application: data centers, warehouses, and light manufacturing where wall or surface mounting is required. Feature: Steel enclosure with NEMA 1 protection; Business Impact: durable indoor performance minimizes maintenance and protects sensitive circuits; Application: service rooms and panel housing in commercial facilities. Feature: UL 67 certification; Business Impact: compliance assurance simplifies spec approval and reduces risk during audits; Application: regulated environments and electrical installations requiring recognized safety standards. Feature: Pow-R-Xpress stocking program compatibility; Business Impact: lowers lead times and total cost of ownership through standard part availability; Application: procurement-driven projects and peak-season installs. Feature: Ventilated trim; Business Impact: lowers internal temperatures, enabling smoother operation and longer component life; Application: high-heat panels in continuous operation settings. Industry insight: the EZTV2890S design aligns with modern modular power distribution trends, enabling scalable builds without compromising space or safety, and integrates with Eaton’s broader ecosystem for future upgrades.
Get a Quick Quote for a Eaton EZTV2890S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTV2890S?
Enquire Now
FAQs
When integrating the EZTV2890S, ensure mechanical compatibility with the 28x90 footprint and surface-vented trim configuration. Verify mounting provisions align with your existing rail and bus-bar interfaces, and confirm that the enclosure and knockout layout support required feeders. The Pow-R-Xpress ecosystem benefits from standard accessory compatibility to streamline field installation and future expansions.
EZTV2890S carries UL 67 certification and a NEMA 1 enclosure rating, indicating safe indoor operation in typical commercial and light-industrial spaces. These certifications support compliance with safety and electrical codes, simplify project approvals, and provide a proven baseline for indoor distribution panels in controlled environments.
EZTV2890S is designed for indoor use given its NEMA 1 rating and vented trim. Outdoor or harsh environments would require a panel with higher ingress protection and enclosure standards. If outdoor capability is needed, consider alternatives with IP-rated enclosures and appropriate environmental protections.
The vented trim improves airflow, aiding heat dissipation and reducing thermal stress on internal components, which can lower maintenance cycles. Installation benefits include a simpler, modular fitment within indoor panels and fewer modifications to accommodate cooling paths, helping projects stay on schedule with predictable service intervals.
Choosing EZTV2890S leverages Eaton’s Pow-R-Xpress stocking program to shorten lead times and reduce procurement risk. Its robust steel enclosure with UL 67 and NEMA 1 ratings provides reliable indoor protection, while the compact 28x90 footprint supports space-constrained facilities. The combination of compliance, install-time savings, and scalable design contributes to faster project delivery and lower total cost of ownership.
