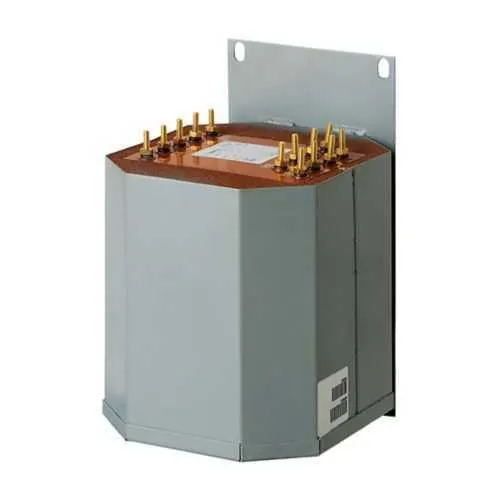

Eaton F03003 Industrial Control Transformer - UL Recognized
Part Number: F03003
Quick Summary
Using the Eaton Type AP industrial control transformer delivers reliable low-voltage power for control circuits in industrial equipment. Engineers often face noise, space constraints, and inconsistent performance under varying loads. This unit carries UL Recognized safety certification and RoHS compliance, complemented by resin encapsulation and electrostatic shielding for rugged environments. Its 60 Hz operation and 180°C insulation system support long service life in demanding applications. For panel builders and machine integrators, the device offers convenient side/wall mounting, a copper-wound coil, and a 240/480 V primary with 120/240 V secondary, plus precise +2.5% / -2.5% taps to handle voltage variances.
Product Information
Extended Description
F03003 Eaton: Eaton, type AP, industrial control transformer, pv: 240 x 480v, taps: 2 at +2.5% fcan, 2 at -2.5% fcbn, sv: 120/240v, 115°c, 3000 va, cu magnet wire, elec. shield, frame: 292.
Product Name
Eaton Type AP industrial control transformer
Catalog Number
F03003
UPC
786680004261
Product Length/Depth
9.567 in
Product Height
9.764 in
Product Width
8.819 in
Product Weight
75 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Recognized
Catalog Notes
Resin encapsulated, 60 Hz operation, 180°C insulation system, Convenient screw-type terminal board
Coil material
Copper windings
Design
AP
Frame
292
Tap size
2 at +2.5% FCAN, 2 at -2.5% FCBN
Wiring connection
400A
Primary voltage
240 x 480 V
Temperature rating
115°C
Volt ampere rating
3000 VA
Secondary voltage
120/240 V
Modification 1
Side/wall mounted
Special features
Electrostatically Shielded
Copper windings reduce conduction losses and improve overall efficiency, delivering cooler operation and longer service life under continuous control duty. For integrators, this means lower energy waste and reduced cooling requirements in panel enclosures, with reliable power for relay banks and PLC power supplies. Resin-encapsulated construction and electrostatic shielding protect windings from moisture, dust and EMI, translating to higher reliability in harsh environments and fewer nuisance trips. The 60 Hz design with a 240/480 V primary and 120/240 V secondary provides broad compatibility for standard industrial distribution, speeding installation and reducing the need for transformers variety. Two 2.5% taps (+2.5% FCAN, -2.5% FCBN) enable voltage compensation to protect sensitive controls and improve uptime. Side/wall mounting and a screw-terminal board simplify wiring, service, and future upgrades. UL Recognized and RoHS compliant, with copper windings, 180°C insulation, and resin-encapsulated construction that balance power density with long-term durability for industrial control panels.
Get a Quick Quote for a Eaton F03003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton F03003?
Enquire Now
FAQs
The F03003 features side/wall mounting, aligning with the resin-encapsulated frame 292 design. Installation is straightforward with screw-type terminals and accessible wiring, making it easy to place in compact control panels or on machine enclosures while preserving clearance for cooling and maintenance.
F03003 is rated for 3000 VA with a 240/480 V primary and a 120/240 V secondary. It operates at 60 Hz and uses copper windings. This combination supports robust control power for relays, PLCs, and other automation modules in industrial environments.
Yes. With 3000 VA capacity, 240/480 V to 120/240 V outputs, resin encapsulation, electrostatic shielding, and UL Recognized status, it is well-suited for control panels, machine controls, and automation modules. Its RoHS compliance also helps meet regulatory and environmental requirements in modern facilities.
The transformer carries UL Recognized certification for electrical safety and RoHS compliance, indicating reduced hazardous substances and conformance to relevant environmental and safety standards. These certifications support regulatory compliance in North American facilities and aid in risk mitigation during audits.
A resin-encapsulated, electrostatically shielded design paired with copper windings and an 180°C insulation system enhances durability in harsh environments, reducing maintenance needs. The unit’s robust mounting, reliable 60 Hz operation, and ±2.5% taps help maintain stable control voltage, improving relay life and overall system uptime, which translates to lower lifecycle costs.
