Eaton F115 Marine Interior Berth Light - NEC/CEC
Part Number: F115
Quick Summary

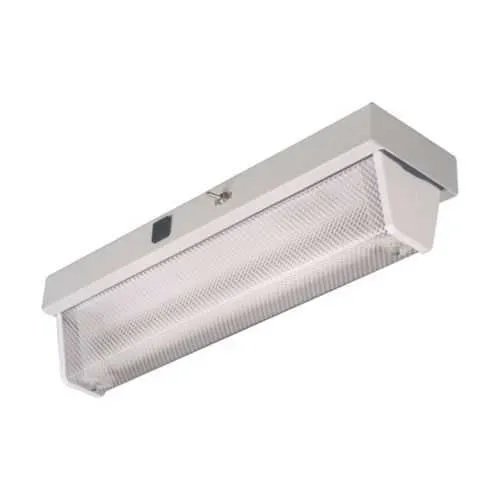

Eaton F115 marine interior Berth light is a compact wall-mount luminaire designed for shipboard berths and mirror zones. Engineers often struggle with moisture, tight spaces, and maintenance access on vessels, making reliable, easy-to-service lighting essential. This unit is NEC/CEC compliant and rated for Ordinary/Non-Hazardous Locations, with 120 VAC at 60 Hz and a 15 W fluorescent lamp. By leveraging a rugged aluminum housing and acrylic lens, it delivers durable illumination while simplifying installation. Its 21.25 inch length and 7 lb weight support flexible space planning, and the Berth/mirror design streamlines vessel interior lighting without compromising cargo or passenger areas.
Product Information
Extended Description
F115 Eaton: Eaton Crouse-Hinds series Pauluhn F115 marine interior, 60 Hz, Acrylic lens, T8, Aluminum, Wall mount, 1-lamp, Berth/mirror type, 120 Vac, 15W
Product Name
Eaton Crouse-Hinds series Pauluhn F115 marine interior
Catalog Number
F115
UPC
662276392403
Product Length/Depth
21.25 in
Product Height
5.5 in
Product Width
5.5 in
Product Weight
7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth/mirror
Number of lamps
1-lamp
Wattage
15W
Light type
T8
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Crouse-Hinds series Pauluhn F115/F215 Marine Interior Berth and Mirror Lights catalog page
IF LBL1529 - F115/F215 Fluorescent Luminaires
Eaton Specification Sheet - F115
Feature: 1-lamp, 15W T8 fluorescent luminaire. Business Impact: Low energy consumption reduces operating costs and heat load in confined marine spaces. Application: Ideal for shipboard berths and mirror alcoves where compact, dependable lighting is required. Feature: Wall-mount installation with aluminum housing and acrylic lens. Business Impact: Durable, corrosion-resistant enclosure improves service life in humid environments and lowers replacement intervals. Application: Suitable for bulkhead or cabin walls where stable mounting is essential. Feature: 120 VAC, 60 Hz electrical rating. Business Impact: Direct compatibility with standard North American vessel power systems reduces installation complexity and downtime. Application: Fluorescent interior lighting in ordinary/non-hazardous areas aboard ships. Feature: 21.25 in length, 5.5 in width, 5.5 in height, 7 lb weight. Business Impact: Manageable form factor supports efficient space planning and handling during maintenance. Application: Berth and mirror lighting layouts where slim profiles are required. Feature: Acrylic lens and aluminum construction. Business Impact: Enhanced impact resistance and weather resistance extend service intervals in marine environments. Application: Interior marine luminaires exposed to moisture and vibration. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Business Impact: Regulatory alignment minimizes risk during inspections and supports fleet-wide standardization. Application: Compliance-driven deployments across multiple vessels or decks.
Get a Quick Quote for a Eaton F115
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton F115?
Enquire Now
FAQs
The F115 is designed for wall mounting using standard bulkhead fittings. Its aluminum housing and compact 21.25 inch length make it suitable for tight spaces such as berths and mirror areas on vessels. This mounting approach reduces wiring runs and simplifies retrofits in existing shipboard interiors.
The F115 operates at 120 VAC and 60 Hz, with a single 15W fluorescent lamp (1-lamp). It uses a T8 light type and is intended for ordinary/non-hazardous locations. These specs ensure compatibility with typical shipboard electrical systems while delivering predictable, energy-efficient performance.
Yes. The F115 complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. This certification supports regulatory compliance during inspections and enables standardized deployment across fleets without additional modifications.
The F115 excels as berth and mirror lighting in crew cabins, galleys, and companionways where a compact, wall-mounted luminaire is preferred. Its rugged aluminum body and acrylic lens handle marine humidity and vibration, while a 1-lamp design keeps maintenance straightforward.
Maintenance is simplified by the 1-lamp, 15W fluorescent design and accessible wall-mount installation. Spare parts and installation sheets (such as the LBL1529 instruction sheet) are available, helping reduce downtime during lamp replacements and ensuring consistent onboard illumination with minimal disruption.
