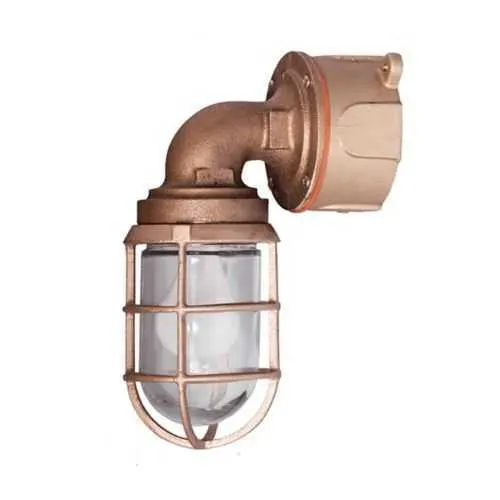

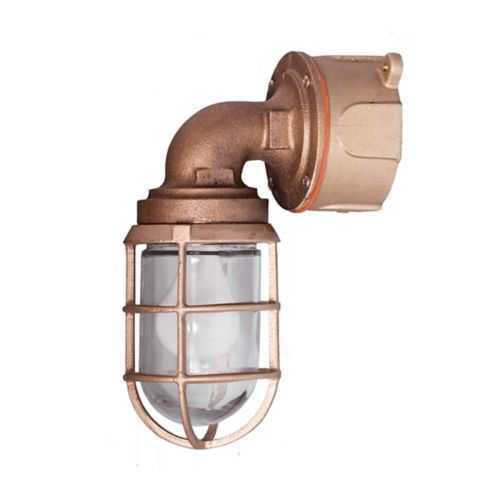

Eaton F707B7-32HR Industrial Globe & Guard - IP66
Part Number: F707B7-32HR
Quick Summary
Eaton F707B7-32HR is an industrial globe and guard designed for durable wall-mounted lighting in industrial facilities. It helps reduce maintenance headaches by protecting the glass globe from impact and contamination in harsh environments. This unit carries IP66 ingress protection and NEC/CEC compliance, making it suitable for ordinary/non-hazardous locations. The brass guard and heat-resistant glass globe provide rugged durability in dusty, humid, and wash-down areas. Ideal for energy-efficient illumination with a 32W compact fluorescent lamp at 120 VAC, this fixture supports long service life and easy front-access lamp replacement while preserving safe operation and code compliance. Designed for compatibility with 50/60 Hz power, the unit suits diverse plant needs and simplifies stocking with common CFL replacements.
Product Information
Extended Description
F707B7-32HR Eaton: Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard, Medium base, 2" box depth, 50/60 Hz, Clear heat resistant glass globe, With cast brass guard, Compact fluorescent, Brass, CF max. lamp size, Wall mount, 120 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard
Catalog Number
F707B7-32HR
UPC
662276674073
Product Length/Depth
6.75 in
Product Height
11.75 in
Product Width
5.13 in
Product Weight
10.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Lamp type
Compact fluorescent
Wattage
32W
Lamp size - max
CF
Box depth
2"
Base type
Medium
Globe color
Clear
Globe material
Heat-resistant glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
120 Vac
Frequency rating
50/60 Hz
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1385 - Pauluhn 707 Wall Mount Incandescent
Eaton Specification Sheet - F707B7-32HR
Feature: Brass guard and heat-resistant glass globe. Business impact: Provides robust protection against impact, dust, and cleaning solvents, reducing glass failures during routine maintenance. Application: Ideal for production floors, wash-down zones, and outdoor-adjacent spaces where debris and environmental exposure threaten lighting integrity. Feature: 32W compact fluorescent lamp with 120 VAC supply and 50/60 Hz operation. Business impact: Delivers energy-efficient lighting with reliable performance, lowering operating costs and improving workspace visibility. Application: Suitable for general illumination in warehouses and manufacturing cells where long intervals between lamp replacements are desired. Feature: Wall mounting with a 2" box depth, 6.75" length, 11.75" height, and 10.2 lb weight. Business impact: Easy retrofits and compact installation in tight wall cavities, minimizing disruption during upgrades. Application: Retrofit projects in service corridors and equipment bays. Feature: IP66 ingress protection and NEC/CEC compliance. Business impact: Ensures safe operation in ordinary locations while meeting code requirements, reducing compliance risk. Application: Industrial facilities requiring rugged, maintainable fixtures in dusty or humid environments. Feature: Clear heat-resistant glass globe and with cast brass guard. Business impact: Maintains light quality while resisting environmental wear and impact, extending fixture life. Application: Areas prone to dust, moisture, and routine cleaning in production and storage spaces.
Get a Quick Quote for a Eaton F707B7-32HR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton F707B7-32HR?
Enquire Now
FAQs
This unit is designed for wall mounting with a 2" box depth and a compact footprint of 6.75" by 11.75" by 5.13". It fits standard wall boxes and requires a 120 VAC supply. During installation ensure the wall surface can support the 10.2 lb fixture and that wiring follows NEC/CEC guidelines for a safe, code-compliant setup.
The fixture uses a 32W compact fluorescent lamp at 120 VAC and supports 50/60 Hz operation. Use a CFL lamp rated for medium base and compatible with 32W max. Lamp replacement is front-access within the globe assembly, minimizing service downtime and keeping maintenance straightforward.
Yes. With an IP66 ingress protection rating and a brass guard coupled with a heat-resistant glass globe, this unit is well-suited for dusty, humid, or wash-down areas. It complies with NEC/CEC standards for ordinary locations, helping facilities maintain safety and reliability without specialized enclosures.
The F707B7-32HR complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. It carries IP66 protection for robust environmental sealing and uses a brass guard for mechanical protection, making it a dependable choice in regulated industrial settings.
Maintenance benefits include longer lamp life with CFL efficiency, front-access lamp replacement, and a rugged guard that reduces breakage risk. ROI stems from lower replacement frequency, reduced downtime, and improved uptime in manufacturing and warehousing environments where dependable lighting is critical to productivity.
