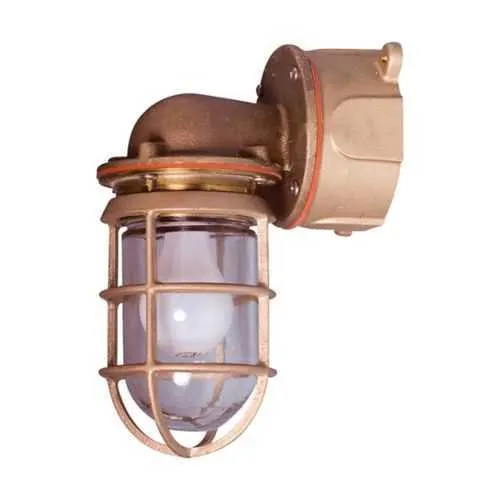

Eaton F729B7-18 Industrial Globe & Guard - IP66
Part Number: F729B7-18
Quick Summary
The Eaton Crouse-Hinds Pauluhn 729 industrial globe and guard provides durable illumination protection for harsh industrial settings. Operators often face glass breakage and maintenance downtime in harsh, damp, or high-traffic areas. This fixture offers IP66 ingress protection, NEC/CEC compliance, and suitability for ordinary/non-hazardous locations, ensuring reliability in demanding environments. By combining a brass guard with a glass globe and 18W compact fluorescent lamp, it delivers long-life illumination with predictable replacement cycles. Wall-mount installation and a brass guard design simplify maintenance and improve vandal resistance, while 120 VAC operation and 50/60 Hz compatibility support standard industrial electrical systems. These features translate to lower downtime and overall lifecycle cost.
Product Information
Extended Description
F729B7-18 Eaton: Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard, Medium base, 2" box depth, 50/60 Hz, Glass globe, With cast brass guard, Compact fluorescent, Brass, CF max. lamp size, Wall mount, 120 Vac, 18W
Product Name
Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard
Catalog Number
F729B7-18
UPC
662276392823
Product Length/Depth
7.13 in
Product Height
10.88 in
Product Width
5.13 in
Product Weight
8.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Lamp type
Compact fluorescent
Wattage
18W
Lamp size - max
CF
Box depth
2"
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
120 Vac
Frequency rating
50/60 Hz
Eaton Crouse-Hinds F729B7-18 3D drawing
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1399 - Pauluhn 729 Wall Mount Incandescent
Eaton Specification Sheet - F729B7-18
Rugged brass guard and glass globe protect the lamp from impact and washdown exposure, reducing replacement costs in harsh plants. This construction supports reliable operation on production lines, loading docks, and outdoor enclosures where moisture and debris are constant, contributing to reduced unplanned downtime. 18W compact fluorescent illumination delivers energy-efficient light with long life in busy facilities. The brass guard and glass globe together optimize durability while keeping maintenance simple and costs down by minimizing lamp replacements. Wall-mount installation with a 2-inch box depth enables quick retrofits into existing Pauluhn housings and standard electrical boxes. The medium base and compact form factor simplify spare parts planning and ensure compatibility with 120 VAC power systems across typical industrial sites. Compliance and protection features, including IP66 ingress protection and NEC/CEC standards, reduce risk for regulated environments. This combination lowers downtime and lifecycle cost by delivering robust lighting with minimal service intervention, even in damp or dusty atmospheres. Industry context: in washdown zones and high-traffic facilities, a brass-guard globe like the F729B7-18 improves uptime and worker safety while meeting ordinary-location classifications.
Get a Quick Quote for a Eaton F729B7-18
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton F729B7-18?
Enquire Now
FAQs
Yes. The F729B7-18 is designed for wall mounting with a 2" box depth and a medium base, aligning with Pauluhn 729 configurations. It supports 120 VAC, 50/60 Hz, and standard rectangular mounting footprints, enabling straightforward retrofits without extensive enclosure modification.
Key specs include 18W compact fluorescent illumination, 120 VAC operation, 50/60 Hz frequency, and IP66 ingress protection. The brass guard and glass globe provide durable protection against impact and moisture, reducing lamp replacements and downtime in demanding environments.
Yes. The IP66 rating and ordinary/non-hazardous location classification make it suitable for washdown zones, warehouses, and damp interiors while meeting NEC/CEC standards for compliant operation.
The fixture complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. IP66 protection provides robust moisture and dust resistance, aligning with typical industrial code requirements for non-hazardous environments.
The rugged brass guard and glass globe reduce lamp breakage and debris ingress, lowering replacement frequency. The 18W CF lamp offers energy efficiency, and the sturdy construction minimizes downtime, delivering measurable lifecycle cost savings in high-traffic or washdown zones.
