Eaton F729BF7-18 Lighting & Emergency - IP66 Brass Guard
Part Number: F729BF7-18
Quick Summary

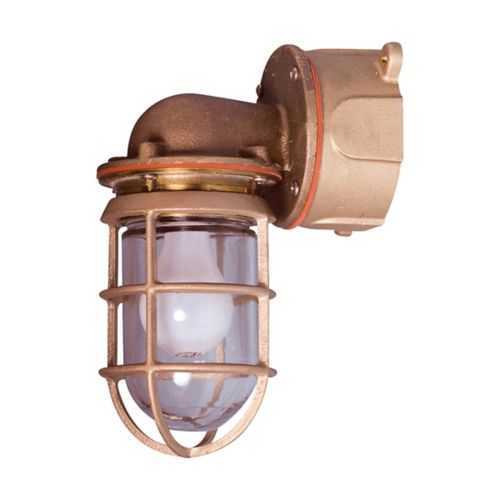

Eaton Crouse-Hinds F729BF7-18 Lighting is a rugged globe-and-guard luminaire for industrial enclosures. Many installations struggle with moisture, dust ingress, and maintenance downtime in harsh environments. It delivers IP66 ingress protection, NEC/CEC compliance, and ordinary/non-hazardous location suitability for safe operation. By combining a brass guard with a glass globe and a compact fluorescent lamp, this fixture reduces replacement costs, extends service life, and simplifies flush-mount installations in tight spaces. For engineers and maintenance teams, this means reliable illumination that meets code and minimizes downtime in mid-size electrical cabinets and outdoor enclosures. Its 120 VAC supply and 50/60 Hz compatibility ensure seamless integration with existing plant electricals.
Product Information
Extended Description
F729BF7-18 Eaton: Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard, Medium base, 2-3/8" box depth, 50/60 Hz, Glass globe, With cast brass guard, Compact fluorescent, Brass, CF max. lamp size, Flush mount, 120 Vac, 18W
Product Name
Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard
Catalog Number
F729BF7-18
UPC
662276392854
Product Length/Depth
7.63 in
Product Height
10.88 in
Product Width
5.63 in
Product Weight
9.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Flush
Lamp type
Compact fluorescent
Wattage
18W
Lamp size - max
CF
Box depth
2-3/8"
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
120 Vac
Frequency rating
50/60 Hz
Eaton Crouse-Hinds F729BF7-18 3D drawing
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1401 - Pauluhn 729 Flush Mount Incandescent
Eaton Specification Sheet - F729BF7-18
Feature: Brass body and glass globe provide corrosion resistance and dependable visibility. Business impact: extended service life and lower replacement costs in harsh environments. Application: ideal for control panels, machine bays, and rugged enclosures where downtime is costly. Feature: IP66 sealing and a protected globe keep dust and moisture out. Business impact: reduces unscheduled maintenance and water ingress in wash-down areas. Application: applies to factory floors, outdoor installations, and other environments with frequent exposure to moisture and particulates. Feature: Cast brass guard delivers physical protection for the globe. Business impact: enhances safety and reduces globe damage in high-traffic areas and near equipment. Application: suitable where incidental contact is common. Feature: 18W compact fluorescent lamp with medium base and 120 VAC operation. Business impact: energy efficiency, long lamp life, and lower operating costs. Application: aligns with standard plant power and straightforward lamp replacement. Feature: Flush mounting, 2-3/8" box depth, compact footprint. Business impact: faster installations and neater panels. Application: Pauluhn 729 configurations in tight spaces, enabling rapid field upgrades and clean installations. Together, these features minimize lifecycle costs and support compliant, safe, and efficient lighting in industrial facilities.
Get a Quick Quote for a Eaton F729BF7-18
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton F729BF7-18?
Enquire Now
FAQs
The F729BF7-18 is designed for flush mounting in a 2-3/8 inch box depth and uses a medium base CF lamp. Start by disconnecting power, remove the existing cover, and align the globe with the brass guard. Secure the housing, reattach the cover, and reconnect power for a reliable, code-compliant upgrade.
It runs an 18-watt compact fluorescent lamp on a 120 VAC supply at 50/60 Hz, with a medium base for easy lamp replacement. The brass guard and glass globe protect the lamp from impact and debris, while IP66 protection shields against dust and water ingress in industrial spaces.
Yes. This luminaire is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. It features a flush-mount configuration ideal for tight enclosures and mid-sized spaces. This makes it a practical choice for factory floors, control panels, and equipment rooms where reliable illumination and safe operation are required.
The unit carries NEC/CEC standards compliance and an IP66 ingress rating, ensuring protection against dust and powerful water jets. It is intended for ordinary locations, not hazardous environments, aligning with common industrial procurement and safety requirements. These certifications help streamline regulatory approvals and contractor acceptance on new builds.
With an 18W CF lamp and brass guard, the fixture delivers energy-efficient light with a long service life, reducing lamp replacements and downtime. The robust guard and glass globe minimize damage in busy facilities, while flush mounting speeds installation. Over the lifecycle, this translates to lower maintenance costs and improved uptime in industrial applications.
