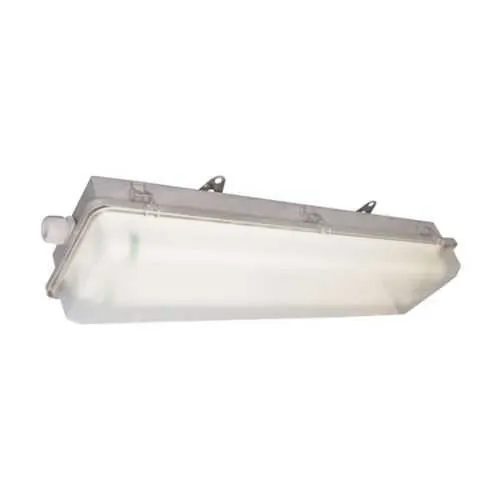

Eaton FAS117 Pauluhn Intrepid Linear Light - IP66
Part Number: FAS117
Quick Summary
FAS117 is a linear fluorescent light fixture for industrial spaces, delivering reliable illumination. In demanding environments, maintenance downtime and fixture reliability are costly, so a rugged, through-feed design helps minimize service calls. IP66 ingress protection and NEMA 4 enclosure, along with NEC/CEC compliance, deliver dependable performance in wet or dusty settings. The aluminum housing with a matte polycarbonate lens resists corrosion and impact, while a 2 ft lamp and 17W power draw reduce energy and replacement costs. Operating on 120–277 VAC across 50/60 Hz, it pairs with standard T8 bi-pin lamps, making stocking and installation straightforward for facilities teams and integrators.
Product Information
Extended Description
FAS117 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,50/60 Hz,2 ft lamp,Fluorescent,Matte polycarbonate lens,T8 bi-pin,Aluminum,1-lamp,Through feed,120-277 Vac,17W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture
Catalog Number
FAS117
UPC
662276392861
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
8.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Number of lamps
1-lamp
Lamp length
2 ft
Light type
T8 bi-pin
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FAS117 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FAS117
Through-feed construction with one non-metallic cable gland and one end plug provides robust, weatherproof wiring while simplifying field connections and long-run installations. This design reduces labor hours during installation and improves seal integrity across multiple luminaire runs in production lines and washdown areas. The FAS117 features a rugged aluminum housing and matte polycarbonate lens that resist corrosion and impact, lowering maintenance cycles and replacement costs in harsh environments. With IP66 protection and a NEMA 4 enclosure, it is well suited for ordinary/non-hazardous locations, minimized downtime, and easier retrofit compatibility with existing Pauluhn Intrepid families. The 2 ft, 17W lamp, 120–277 VAC operation, and T8 bi-pin interface offer energy efficiency and universal wiring compatibility, streamlining procurement and installation for facilities managers. Overall, this fixture supports compliant, reliable lighting in challenging industrial spaces while reducing total cost of ownership.
Get a Quick Quote for a Eaton FAS117
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FAS117?
Enquire Now
FAQs
The FAS117 installs through-feed with a single non-metallic cable gland and one end plug, allowing clean field wiring and sealed long runs. Plan for a 2 ft lamp configuration, verify 120-277 VAC supply across 50/60 Hz, and ensure an IP66/NEMA 4 housing is appropriate for the space. Use standard T8 bi-pin lamps and follow NEC/CEC guidelines for wiring, mounting, and grounding to ensure compliant, reliable operation.
FAS117 operates with a 2 ft, 17W fluorescent lamp on a voltage range of 120-277 VAC and a frequency of 50/60 Hz. Its IP66 enclosure and NEMA 4 rating protect against dust, water ingress, and corrosion. The luminaire uses a T8 bi-pin lamp, supports through-feed wiring, and is suited for ordinary/non-hazardous locations, ensuring consistent light output while minimizing energy consumption.
Yes. The FAS117 features IP66 ingress protection and a NEMA 4-rated enclosure along with an aluminum housing and matte polycarbonate lens, which together resist dust, water, and impact. This makes it a practical choice for washdown zones and dusty environments while maintaining NEC/CEC compliance and reliable operation in ordinary locations.
FAS117 complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with IP66 ingress protection and a NEMA 4 enclosure. These certifications help facilities meet regulatory requirements, reducing risk during audits and facilitating safe operation in industrial spaces that require durable, compliant lighting solutions.
The 2 ft, 17W design provides energy efficiency and lower operating costs while the through-feed wiring and durable housing minimize installation time and maintenance calls. Its rugged aluminum body, lens, and weatherproof enclosure extend service intervals in harsh environments, delivering predictable performance and reducing total cost of ownership over the fixture's life cycle.
