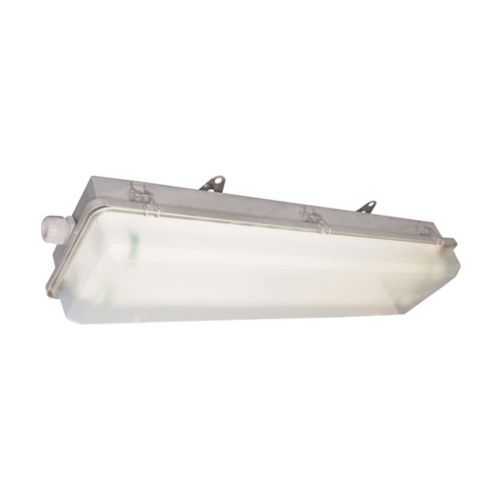

Eaton FAS232 Linear - IP66
Part Number: FAS232
Quick Summary
The Eaton FAS232 Linear is a rugged two-lamp light fixture designed for industrial lighting applications. When reliability matters in harsh environments, older fixtures can fail, cause downtime, or leak moisture. This unit delivers NEC/CEC compliance, a NEMA 4 enclosure, and IP66 ingress protection, assuring performance in wet, dusty locations. Through-feed installation and durable aluminum housing translate to lower maintenance costs, while the matte polycarbonate lens and T8 bi-pin lamps support long service life. In manufacturing and process facilities, this fixture enables consistent illumination with minimal downtime, making it a practical choice for professionals seeking durable, serviceable lighting that stands up to demanding conditions.
Product Information
Extended Description
FAS232 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,50/60 Hz,4 ft lamp,Fluorescent,Matte polycarbonate lens,T8 bi-pin,Aluminum,2-lamp,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture
Catalog Number
FAS232
UPC
662276392991
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Number of lamps
2-lamp
Lamp length
4 ft
Light type
T8 bi-pin
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FAS232 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FAS232
Feature: Rugged, aluminum housing and matte polycarbonate lens provide corrosion resistance and impact durability. Business Impact: Reduced maintenance frequency and extended fixture life in harsh facilities. Application: Ideal for manufacturing floors, assembly lines, and washdown zones where reliability is critical. Feature: Through-feed design with one non-metallic cable gland and one end plugged simplifies wiring and installation. Business Impact: Faster project completion and easier integrations in mill runs or corrugated plant spaces. Application: Suitable for long channel runs in industrial complexes with minimal wiring time. Feature: IP66 ingress protection and NEMA 4 enclosure protect against dust and water jets. Business Impact: Compliance with harsh-location requirements lowers risk of downtime and protects investments. Application: Suitable for non-hazardous areas in factories, warehouses, and outdoor-adjacent spaces. Feature: 120-277 Vac, 50/60 Hz operation with 32W power and two lamps (4 ft lamp length). Business Impact: Flexible power sourcing and predictable energy consumption with reliable performance. Application: Fits standard industrial power systems and supports common T8 bi-pin configurations. Feature: Aluminum, 52.8 in length, 7.63 in width, 5 in height, and 14 lb weight. Business Impact: Manageable weight for ease of handling and installation, plus space-efficient profile for ceiling or wall mounting. Application: Long, low-profile fixtures for broad area illumination across production lines. Feature: Lens material and lamp type suited to industrial lighting standards. Business Impact: Maintains optical clarity and consistent output in challenging environments, reducing re-lamping needs. Application: Through-feed, 2-lamp fluorescent installs in ordinary/non-hazardous locations.
Get a Quick Quote for a Eaton FAS232
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FAS232?
Enquire Now
FAQs
For best results, plan through-feed wiring with the included non-metallic cable gland and end plug options. The 52.8 inch length, 5 inch height, and 7.63 inch width fit standard ceiling grids, while the 120-277 Vac, 50/60 Hz input accommodates common plant power systems. Ensure the location is within ordinary/non-hazardous zones and verify duplicate fixtures are aligned for uniform lighting coverage.
The fixture features IP66 ingress protection and a NEMA 4 enclosure, delivering robust dust and water jet resistance. This makes it well-suited for washdown areas, dusty production floors, and other challenging settings, reducing the risk of moisture-related failures and extending service life in non-hazardous locations.
Two-lamp configurations provide broad, even illumination across workstations, conveyors, and assembly lines while maintaining energy efficiency. The 4 ft lamp length, T8 bi-pin lamps, and matte polycarbonate lens optimize light quality and durability, reducing glare and improving operator visibility in manufacturing and packaging operations.
This fixture meets NEC/CEC standards, carries a NEMA 4 enclosure rating, and provides IP66 protection, ensuring compliance with common industrial and building codes. These certifications give engineers confidence in reliability for ordinary/non-hazardous locations and support safety and regulatory requirements in plant environments.
Durable aluminum housing, impact-resistant matte polycarbonate lenses, and a simple through-feed installation reduce maintenance labor and downtime. The combination of high reliability, standard 120-277 Vac power compatibility, and common lamp types helps minimize replacement and stocking costs, delivering a favorable ROI for continuous production operations.
