Eaton FAS254 Light Fixture - IP66 Industrial Grade
Part Number: FAS254
Quick Summary

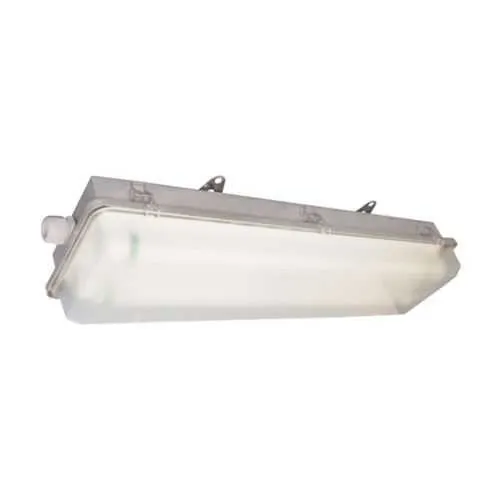

Eaton FAS254 Light Fixture delivers durable linear fluorescent lighting for industrial facilities. Operators and maintenance teams struggle with brittle housings, water ingress, and mounting mismatches that stall repairs. The unit carries IP66 and NEMA 4 ratings and NEC/CEC compliance, built for ordinary-location environments with rugged aluminum housing and a matte polycarbonate lens. With a through-feed design and a simple entry type—one non-metallic cable gland and one end plug—installation is faster and wiring costs drop. Designed for 120-277 VAC, 50/60 Hz, 54 W, and two T5HO lamps, it supports demanding schedules while reducing downtime. This combination translates to lower maintenance and more reliable illumination across manufacturing lines.
Product Information
Extended Description
FAS254 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,50/60 Hz,4 ft,Fluorescent,Matte polycarbonate lens,T5HO mini bi-pin,Al,2-lamp,Through feed,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture
Catalog Number
FAS254
UPC
662276393059
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Number of lamps
2-lamp
Lamp length
4 ft
Light type
T5HO mini bi-pin
Wattage
54W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FAS254 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FAS254
The FAS254 uses a rugged aluminum housing combined with IP66 ingress protection and a NEMA 4 rating to withstand washdowns, dust, and harsh production environments. This protection translates to fewer service calls and longer intervals between maintenance, ensuring consistent lighting in warehouses, factories, and outdoor-ready spaces. The matte polycarbonate lens provides excellent impact resistance and glare control, improving worker visibility and comfort on demanding production lines. Through-feed design with a fixed entry arrangement—one non-metallic cable gland and one end plug—simplifies wiring and accelerates both initial installation and future reworks, reducing labor costs. The 54W output from two T5HO mini bi-pin lamps delivers bright, uniform illumination across 4 ft segments, enhancing throughput in assembly cells and storage aisles while maintaining energy efficiency. Compatibility with 120-277 VAC across 50/60 Hz simplifies site deployments and minimizes inventory needs. Certifications including NEC/CEC compliance and Ordinary/Non-Hazardous Location classification provide regulatory assurance for diverse facilities while supporting safer operation.
Get a Quick Quote for a Eaton FAS254
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FAS254?
Enquire Now
FAQs
Yes. The FAS254 is designed for ordinary-location environments with IP66 ingress protection and a NEMA 4 rating, making it suitable for washdown areas and damp facilities. Its through-feed design and entry options—a single non-metallic cable gland and one end plug—simplify wiring during new installs or retrofits, while operating on 120-277 VAC.
The fixture uses two 54W lamps of the T5HO mini bi-pin family in a 4 ft configuration. It operates on 120-277 VAC with a 50/60 Hz frequency rating. The aluminum housing and matte polycarbonate lens support durability, while IP66 and NEMA 4 ratings ensure reliable performance in harsh environments.
Yes, the FAS254 is well-suited for ordinary-location warehouses, manufacturing floors, and general industrial spaces. Its 52.8 in length, through-feed wiring, and two-lamp configuration provide uniform illumination across aisles and work cells, while its rugged build withstands routine washdowns and dust exposure typical in material handling and production areas.
FAS254 carries NEC/CEC compliance with an IP66 ingress protection rating and a NEMA 4 enclosure rating, supporting safe operation in ordinary, non-hazardous locations. These certifications help facilities meet electrical codes, safety standards, and reliability requirements for industrial lighting across multiple sites.
Expect reduced downtime due to rugged construction, long service life, and simple installation. The through-feed design lowers labor time during installation and retrofits, while the two-lamp, 54W configuration delivers effective illumination with energy efficiency. Overall, maintenance intervals lengthen and operating costs decline across high-usage industrial areas.
