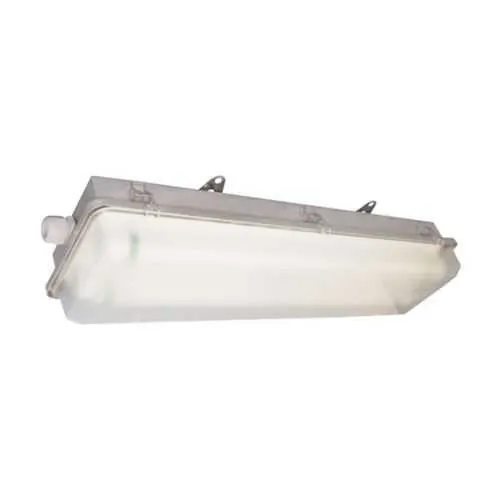

Eaton FAS260EM2 Linear Fluorescent Light Fixture - IP66
Part Number: FAS260EM2
Quick Summary
Eaton FAS260EM2 linear fluorescent light fixture delivers reliable illumination for industrial facilities. In rugged spaces, insufficient protection and missing emergency backups can lead to downtime and safety risks during outages. This luminaire meets NEC/CEC standards, features a NEMA 4 enclosure and IP66 protection, and is tailored for Ordinary/Non-Hazardous Locations, ensuring performance where dust, moisture, and wash-downs are common. With a through-feed entry, one non-metallic cable gland, and a matte polycarbonate lens, it offers flexible installation and easy maintenance. The 120–277 VAC, 50/60 Hz operation and 48 W two-lamp design support energy efficiency and compatibility with existing building systems, delivering long-term value and reliable uptime. Coupled with emergency battery back-up, it provides essential outage lighting and safety.
Product Information
Extended Description
FAS260EM2 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent,One non-metallic cable gland,one end plugged,4 ft,Matte polycarb lens,T12HO RDC,Aluminum,2-lamp,Emergency battery back-up,one lamp,277V maximum,Through feed,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture
Catalog Number
FAS260EM2
UPC
662276673182
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
23.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Number of lamps
2-lamp
Lamp length
4 ft
Light type
T12HO RDC
Wattage
48W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FAS260EM2
Two-lamp, 48W fluorescent configuration reduces energy consumption while delivering consistent lumen output, especially in wide warehouse aisles. This arrangement translates to lower operating costs and reduced re-lamping frequency in industrial settings. Emergency battery back-up ballast ensures illumination during power outages, supporting safety-critical areas and reducing downtime. The rugged IP66 and NEMA 4 enclosure withstands dust, moisture, and wash-downs, making it suitable for outdoor and washroom environments where reliability is non-negotiable. Through-feed entry with a single non-metallic cable gland and one end plug simplifies installation and future upgrades, enabling faster retrofits and scalable lighting layouts. Matte polycarbonate lens minimizes glare while withstanding impact, and the fixture accepts standard 120-277 VAC supply for seamless integration with existing electrical systems. Compatibility with 50/60 Hz operation and two-lamp configuration supports energy-efficient upgrades in mid-to-large facilities, offering a compelling total-cost-of-ownership advantage in industrial lighting projects.
Get a Quick Quote for a Eaton FAS260EM2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FAS260EM2?
Enquire Now
FAQs
The FAS260EM2 carries IP66 ingress protection and a NEMA 4 enclosure, making it suitable for Ordinary/Non-Hazardous Locations in industrial settings such as warehouses, manufacturing floors, and wash-down areas where dust, water, and cleaning are common.
Yes. The fixture includes an emergency battery back-up ballast for one lamp, with a maximum operating voltage of 277V. This ensures continued illumination during power outages, supporting safety-critical workflows and egress lighting in downtime scenarios.
The unit features one non-metallic cable gland and one end plugged entry, enabling flexible through-feed installation and daisy-chaining where needed. It supports standard building wiring in the 120–277 VAC range and simplifies retrofits and new installations alike.
The FAS260EM2 measures 52.8 inches in length, 7.63 inches in width, and 5 inches in height, with an approximate weight of 23.5 pounds. Aluminum housing and a matte polycarbonate lens contribute to durability without excessive beam shift or sag over time.
The fixture is rated for Ordinary/Non-Hazardous Locations under NEC/CEC standards, with IP66 protection and a NEMA 4 enclosure. This combination supports regulatory compliance, safe operation in industrial facilities, and compatibility with common safety programs.
