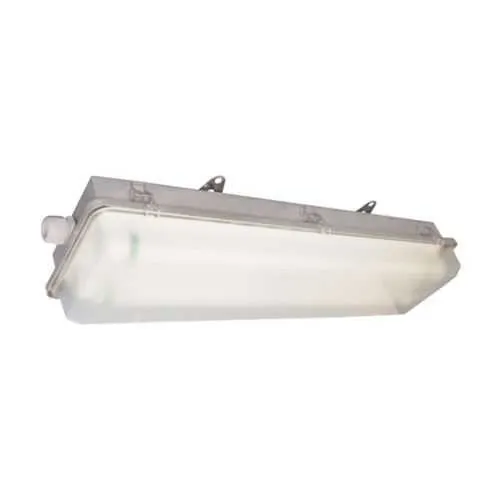

Eaton FAS354 Linear Fluorescent Light Fixture - IP66
Part Number: FAS354
Quick Summary
The Eaton FAS354 linear fluorescent light fixture provides reliable industrial illumination for areas like warehouses and manufacturing floors. In practice, maintenance teams struggle with brittle housings and frequent failures; this unit minimizes downtime with a rugged aluminum body, sealed lens, and through-feed wiring. It carries IP66 ingress protection, a NEMA 4 enclosure, and NEC/CEC compliance for ordinary/non-hazardous locations, giving confidence in harsh environments. With 54W lamps and 120–277 Vac operation across 50/60 Hz, it supports energy-efficient retrofits while simplifying wiring and service across multiple sites. The combination of one non-metallic gland and a plug-end configuration further reduces installation time and spare parts management.
Product Information
Extended Description
FAS354 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,50/60 Hz,4 ft,Fluorescent,Matte polycarbonate lens,T5HO mini bi-pin,Al,3-lamp,Through feed,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture
Catalog Number
FAS354
UPC
662276393196
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Number of lamps
3-lamp
Lamp length
4 ft
Light type
T5HO mini bi-pin
Wattage
54W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FAS354 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FAS354
Three-lamp, 54W configuration increases lumen output per fixture, reducing fixtures per area and cutting install time. Business impact includes lower capex and maintenance costs, translating to faster ROI for large facilities such as distribution centers and manufacturing lines. Application: ideal for long-span aisles, loading bays, and production zones where consistent, multi-lamp illumination is required. Versatile power compatibility with 120–277 Vac at 50/60 Hz simplifies deployments across multi-site operations, reducing part numbers and electrical inventory. This leads to faster project scale-up and fewer on-site commissioning challenges. Rugged IP66 protection and a NEMA 4 enclosure protect against dust and water ingress, extending service life in damp, dirty, or wash-down environments and lowering maintenance intervals. The durable aluminum housing with matte polycarbonate lens resists corrosion and impact, preserving light output and reducing replacement cycles across harsh industrial spaces. Through-feed wiring plus one non-metallic cable gland and an end plug offer installation flexibility, faster mounting, and easier field modifications, which minimizes labor time and accelerates retrofits. The T5HO mini bi-pin lamps provide compatibility with common fluorescent stock and dependable color rendering, supporting efficient operation at 54W while maintaining performance in challenging environments.
Get a Quick Quote for a Eaton FAS354
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FAS354?
Enquire Now
FAQs
The FAS354 uses a through-feed wiring design with one non-metallic cable gland and one end plug, enabling flexible mounting configurations and faster field installation. This reduces wiring complexity across multi-zone facilities and supports retrofit projects without changing existing infrastructure. Works with standard 120–277 Vac power supplies and 50/60 Hz utilities, simplifying cross-site deployment.
IP66 ensures complete protection against dust ingress and high-pressure water jets, while NEMA 4 enclosure ratings guard against wind-driven rain and hose-directed water. Together, they extend service life in damp, dusty, or wash-down environments typical of warehouses, factories, and outdoors at certain facilities, reducing maintenance cycles and uptime risk.
Yes. The 52.8 in length with a 4 ft lamp arrangement and three-lamp configuration delivers high lumen output per fixture, supporting uniform illumination along long corridors and across production lines. The through-feed wiring, rugged housing, and glare-minimizing matte polycarbonate lens make it suitable for continuous operation in industrial settings with strict lighting requirements.
The FAS354 complies with NEC/CEC standards for industrial electrical installations and is rated for Ordinary/Non-Hazardous Locations. It carries a NEMA 4 enclosure and IP66 ingress protection, providing regulatory assurance for facilities requiring reliable, safe, and compliant LED-free fluorescent lighting in harsh environments.
The 54W T5HO mini bi-pin lamps offer efficient energy use and compatibility with common fluorescent stocks, reducing spare parts variety. The rugged aluminum housing and sealed lens minimize corrosion and lens damage, lowering replacement costs. Through-feed wiring and easy end-plug installation shorten commissioning time, delivering faster payback and improved facility uptime.
