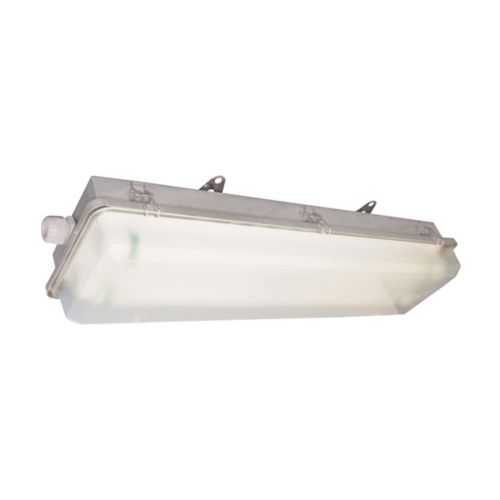

Eaton FAS354L Linear Fluorescent Light - IP66
Part Number: FAS354L
Quick Summary
The Eaton FAS354L linear fluorescent light fixture provides robust, reliable illumination for industrial spaces. Facility managers often wrestle with harsh environments, demanding durability and simple maintenance; this fixture reduces downtime with a rugged aluminum body and a matte polycarbonate lens. It meets ordinary/non-hazardous area classifications and NEC/CEC standards, and it carries IP66 ingress protection with a NEMA 4 enclosure, offering dependable performance in dusty or wet environments. The 54W, 120–277 VAC, 50/60 Hz design supports a 3-lamp, 4 ft configuration to maximize light output while controlling energy costs. In short, FAS354L delivers predictable lifecycle performance and a strong total-cost-of-ownership profile for industrial facilities.
Product Information
Extended Description
FAS354L Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,4 ft,Matte polycarbonate lens,T5HO mini bi-pin,Al,3-lamp,Lamps included,Through feed,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FAS linear fluorescent light fixture
Catalog Number
FAS354L
UPC
662276375062
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Number of lamps
3-lamp
Lamp length
4 ft
Light type
T5HO mini bi-pin
Wattage
54W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FAS354L
Rugged aluminum housing with a matte polycarbonate lens protects against corrosion and impact, reducing replacement cycles and maintenance costs in demanding facilities. The 3-lamp, 4 ft configuration delivers higher lumen output per fixture, improving workspace visibility and safety while keeping energy use predictable. Through-feed wiring with a single non-metallic gland and one end plug simplifies installation, lowers field labor, and reduces wiring errors during retrofits or new builds. Lamps included with the unit minimize downtime and upfront purchasing complexity, while the T5HO mini bi-pin lamps offer consistent color and long life. The fixture is rated 120-277 VAC and 50/60 Hz, with IP66 and NEMA 4 protection, ensuring reliable operation in non-hazardous locations across a broad range of climates. Its aluminum construction, lens and mounting options support quick integration into existing industrial lighting systems.
Get a Quick Quote for a Eaton FAS354L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FAS354L?
Enquire Now
FAQs
The FAS354L uses through-feed wiring with one non-metallic cable gland and one end plug. It is 52.8 in long and supports a 4 ft, 3-lamp arrangement; follow the installation guidance in IF LBL1370 for mounting, wiring clearances, and sealing to maintain IP66 integrity.
It operates at 54W with a 120–277 VAC supply and 50/60 Hz. The lamp type is fluorescent with T5HO mini bi-pin lamps included, ensuring immediate startup and consistent color performance.
Yes. The fixture provides IP66 ingress protection and a NEMA 4 enclosure rating, making it suitable for ordinary/non-hazardous locations in dusty or wet industrial settings.
With lamps included and a rugged aluminum housing, maintenance downtime is minimized and lifecycle costs are reduced. Energy performance is predictable at 54W, aiding long-term budgeting and total cost of ownership evaluations.
Ideal for warehouses, production floors, and assembly lines in non-hazardous environments, especially where durability, ingress protection, and reliable 120–277 VAC operation are critical.
