Eaton FBN18LCO Berth Light - 8W T5, 120V, 60 Hz
Part Number: FBN18LCO
Quick Summary

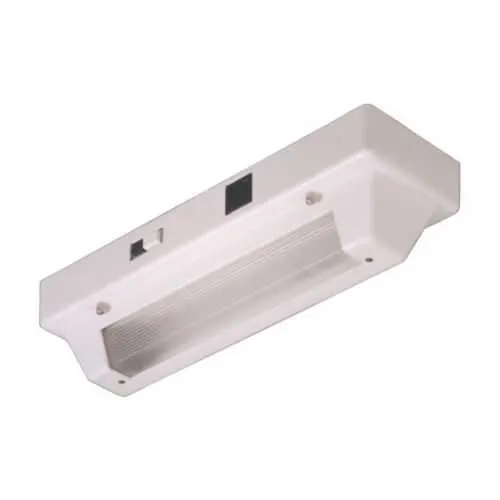

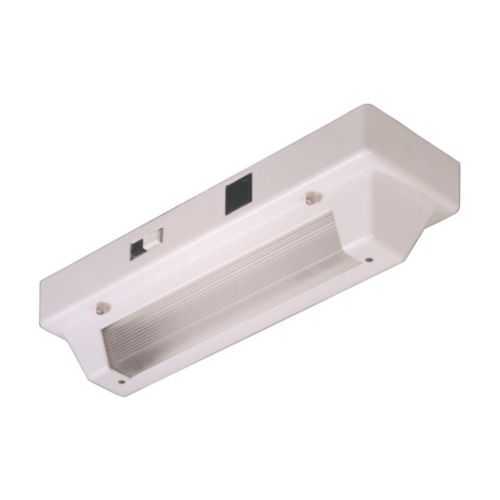

Eaton FBN18LCO Berth Light is a compact marine interior luminaire that provides dependable 8W T5 illumination for berths and cabins. Engineers often contend with tight spaces, vibration, and moisture in shipboard environments, which can degrade lighting performance. This luminaire meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, featuring a durable aluminum housing and an acrylic lens to withstand marine conditions. Its wall-mount design and 120 VAC, 60 Hz operation simplify integration into standard vessel electrical decks, while compatibility with the Pauluhn FBN family supports streamlined parts replacement and maintenance planning. Choose this berth light to balance reliability, compatibility, and total cost of ownership in busy on-board environments.
Product Information
Extended Description
FBN18LCO Eaton: Eaton Crouse-Hinds series Pauluhn FBN marine interior, 60 Hz, Acrylic lens, T5, Aluminum, Wall mount, 1-lamp, Without convenience outlet, Berth type, 120 Vac, 8W
Product Name
Eaton Crouse-Hinds series Pauluhn FBN marine interior
Catalog Number
FBN18LCO
UPC
662276393318
Product Length/Depth
14.38 in
Product Height
3.5 in
Product Width
4.25 in
Product Weight
2.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth
Number of lamps
1-lamp
Wattage
8W
Light type
T5
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Special features
Without convenience outlet
Crouse-Hinds series Pauluhn FBN/FMN Marine Interior Berth and Mirror Lights catalog page
IF LBL1524 - FBN/FMN Fluorescent Luminaires
Eaton Specification Sheet - FBN18LCO
Feature 1: 8W, 1-lamp T5 fluorescent}Business Impact: Low power consumption reduces energy use and heat generation in confined crew spaces. Application: Ideal for long voyages and occupant comfort in cabin berths. Feature 2: Acrylic lens and aluminum housingBusiness Impact: Corrosion resistance and durable construction extend service life in humid marine atmospheres. Application: Marine interior lighting where reliability matters most, such as crew berths and cabins. Feature 3: Wall-mount, Berth type designBusiness Impact: Easy retrofit and unobtrusive installation in existing berths with minimal clearance impact. Application: Shipboard interiors with space constraints and fixed wall mounting points. Feature 4: 120 VAC, 60 Hz operationBusiness Impact: Uses standard vessel electrical distribution, reducing integration complexity and wiring costs. Application: General use on a wide range of vessels requiring conventional power.Feature 5: 4.25 in W x 3.5 in H x 14.38 in L footprint, 2.3 lb weightBusiness Impact: Compact, lightweight fixture that minimizes ballast and load in confined areas. Application: Berth luminaires where space planning and weight budgeting are critical. Feature 6: NEC/CEC compliance and Ordinary/Non-Hazardous Locations ratingBusiness Impact: Regulatory alignment minimizes risk and accelerates procurement approvals. Application: Commercial and recreational maritime applications where safety standards matter most. Industry Insight: As part of the Pauluhn FBN family, FBN18LCO aligns with industry norms for marine interior berth lighting, ensuring compatibility with common spares and service procedures, while providing predictable maintenance cycles and performance.
Get a Quick Quote for a Eaton FBN18LCO
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FBN18LCO?
Enquire Now
FAQs
The FBN18LCO is a wall-mount berth luminaire designed for marine interiors. It measures 14.38 in long with a 4.25 in width and 3.5 in height, weighs 2.3 lb, and uses a single 8W T5 lamp at 120 VAC / 60 Hz, making it a straightforward retrofit for most berths and cabin applications.
Key specs include one-lamp, 8W T5 fluorescent illumination, acrylic lens, aluminum housing, 120 VAC, 60 Hz, and wall-m mounting. It is rated for Ordinary/Non-Hazardous Locations under NEC/CEC standards, with no built-in convenience outlet.
Yes. It adheres to NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, aligning with common regulatory expectations for shipboard interior lighting.
Plan for a wall-mount berth installation using standard 120 VAC power. The fixture fits compact berths and cabins, with dimensions of 14.38 in L, 4.25 in W, and 3.5 in H. It’s a single-lamp unit without a convenience outlet, simplifying wiring and maintenance.
As part of the Pauluhn FBN family, it offers familiar replacement parts and service procedures, with durable aluminum housing and acrylic lens reducing corrosion-related downtime. Low 8W consumption and standard 120 VAC/60 Hz operation contribute to lower lifecycle energy costs and predictable maintenance budgets.
