Eaton FBN18LCO-226 Berth Light - NEC/CEC
Part Number: FBN18LCO-226
Quick Summary

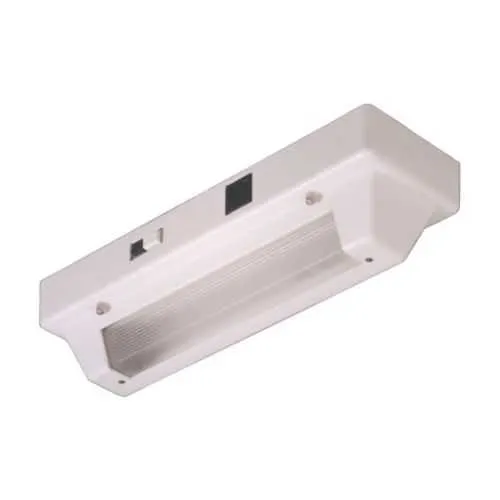

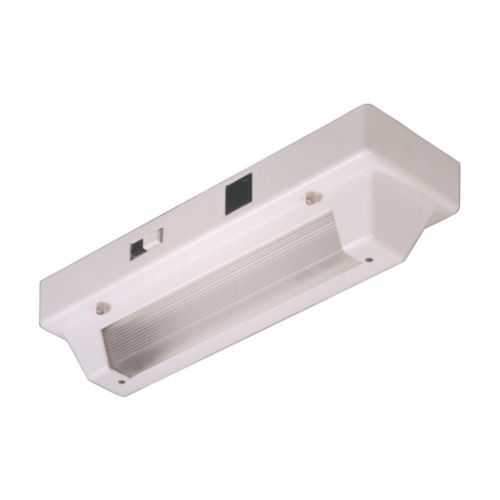

FBN18LCO-226 Berth Light is a marine interior luminaire that illuminates berths. Engineers often contend with tight cabin spaces, heat management, and regulatory risk when selecting berth lighting. This Eaton fixture delivers NEC/CEC compliance for Ordinary/Non-Hazardous Locations and runs at 60 Hz on 220 Vac, reducing electrical concerns. With a compact aluminum housing, acrylic lens, and a single 8 W T5 lamp, it enables reliable, low-maintenance service aboard vessels while supporting faster installations. Combined with wall-mount convenience and readily available installation drawings, it provides predictable performance and long-term value for marine operators.
Product Information
Extended Description
FBN18LCO-226 Eaton: Eaton Crouse-Hinds series Pauluhn FBN marine interior, 60 Hz, Acrylic lens, T5, Aluminum, Wall mount, 1-lamp, Without convenience outlet, Berth type, 220 Vac, 8W
Product Name
Eaton Crouse-Hinds series Pauluhn FBN marine interior
Catalog Number
FBN18LCO-226
UPC
662276393325
Product Length/Depth
14.38 in
Product Height
3.5 in
Product Width
4.25 in
Product Weight
2.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth
Number of lamps
1-lamp
Wattage
8W
Light type
T5
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
220 Vac
Frequency rating
60 Hz
Special features
Without convenience outlet
Crouse-Hinds series Pauluhn FBN/FMN Marine Interior Berth and Mirror Lights catalog page
IF LBL1524 - FBN/FMN Fluorescent Luminaires
Eaton Specification Sheet - FBN18LCO-226
Feature 1: 8 W power with a single 8 W T5 lamp provides energy-efficient illumination with minimal heat buildup. Business Impact: Lower running costs and cooler operation reduce cooling load and energy expenditure on vessels. Application: Ideal for berths in crew cabins where continuous lighting is common. Feature 2: Acrylic lens and aluminum housing deliver durable, corrosion-resistant construction suitable for harsh marine environments. Business Impact: Extended service life and reduced maintenance costs in salt air and spray-prone areas. Application: Interior marine luminaires exposed to moisture and vibration. Feature 3: Wall-mount mounting method saves valuable cabin space and simplifies retrofits. Business Impact: Faster installation, easier access for maintenance, and flexible layout options. Application: Berth walls in ship and yacht interiors. Feature 4: Compact footprint with dimensions 14.38 in length, 3.5 in height, and 4.25 in width. Business Impact: Slim profile enables installation in tight berths and along narrow walls. Application: Vessel interior paneling and berth enclosures. Feature 5: Voltage rating of 220 Vac and frequency 60 Hz aligns with common marine power systems. Business Impact: Regulatory compatibility reduces wiring changes and accelerates commissioning. Application: Standard shipboard electrical infrastructure. Feature 6: Configured as a berth-type luminaire with no convenience outlet. Business Impact: Simplified circuits, reduced wiring complexity, and lower cost. Application: Berth lighting where outlets are not required or desired. Feature 7: NEC/CEC compliance and Ordinary/Non-Hazardous locations classification provide clear regulatory alignment. Business Impact: Risk mitigation and smoother approvals for maritime projects. Application: Commercial and passenger vessel lighting projects requiring standard certifications. Industry insight: This configuration aligns with Pauluhn FBN series practices, ensuring compatibility with existing marine interior kits and catalogued installation pages for faster procurement and deployment.
Get a Quick Quote for a Eaton FBN18LCO-226
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FBN18LCO-226?
Enquire Now
FAQs
The FBN18LCO-226 is a wall-mounted marine interior luminaire designed for simple retrofit into berth areas. Installation typically requires standard shipboard wiring at 220 Vac and 60 Hz, with a dedicated lighting circuit for the berth. Use the included installation instructions to mount the fixture on a dry, non-hazardous location surface and connect line and neutral per NEC/CEC guidelines. The unit supports straightforward sizing and standard mounting patterns, which minimizes modification time and ensures reliable service in crew cabins.
This fixture uses a single 8 W T5 lamp and operates at 60 Hz on 220 Vac. It has an acrylic lens and an aluminum housing, providing durable marine-grade construction. Dimensions are 14.38 in length, 3.5 in height, and 4.25 in width, with a weight of about 2.3 lb. It is rated for ordinary/non-hazardous locations and does not include a convenience outlet.
Yes. The FBN18LCO-226 is specifically categorized as a berth luminaire for marine interiors and is suitable for crew berths and passenger cabins. Its ordinary/non-hazardous location rating, 220 Vac compatibility, and compact form factor make it ideal for tight cabin spaces while meeting NEC/CEC requirements. The product is designed for Berth type lighting with an acrylic lens and aluminum housing that withstands shipboard conditions.
The FBN18LCO-226 complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. These certifications reduce regulatory risk for marine installations and simplify approval processes. This aligns with typical shipboard electrical systems and supports reliable, code-compliant berth lighting in marine environments.
With an 8 W single-lamp T5 configuration and an aluminum housing, the FBN18LCO-226 offers energy-efficient operation and durable construction that minimizes maintenance. The acrylic lens is resistant to impact and corrosion, which lowers replacement frequency in salt-air environments. Access to installation catalogs and datasheets also facilitates quicker commissioning and long-term lifecycle planning, delivering favorable total cost of ownership for vessel lighting projects.
