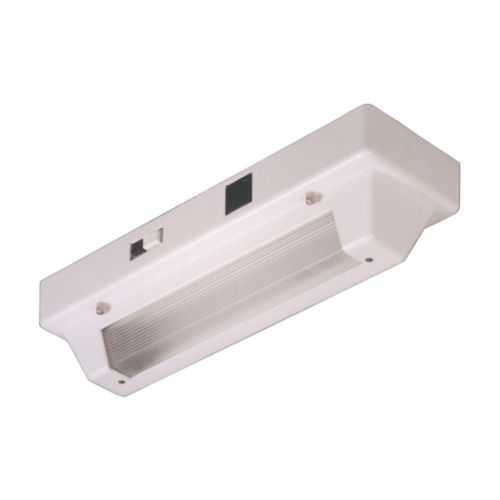

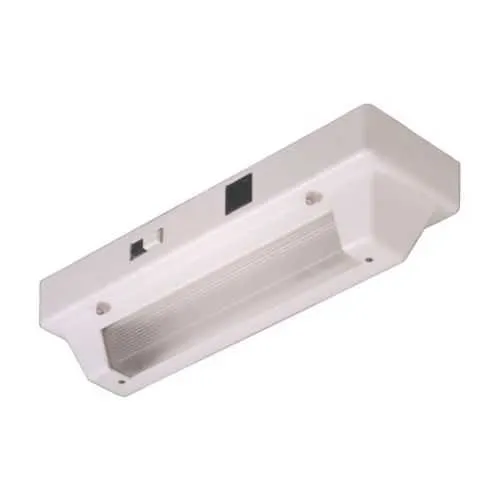

Eaton FBN28DS Marine Interior Berth Light - NEC/CEC
Part Number: FBN28DS
Quick Summary
The Eaton FBN28DS marine interior berth light provides reliable 2-lamp illumination for ship cabins and berths. Engineers and maintenance teams often struggle with glare, corrosion, and difficult access in confined vessel spaces, making reliable, easy-to-service lighting a priority. This luminaire aligns with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, featuring a rugged aluminum housing and an acrylic lens designed for marine environments. Mounted on walls in berths, it delivers consistent performance while reducing crew downtime and maintenance effort. For procurement, the combination of compliance, durability, and compact form supports safer operations and lower lifecycle costs in busy maritime facilities.
Product Information
Extended Description
FBN28DS Eaton: Eaton Crouse-Hinds series Pauluhn FBN marine interior, 60 Hz, Acrylic lens, T5, Aluminum, Wall mount, 2-lamp, 2-pole toggle switch, Berth type, 120 Vac, 8W
Product Name
Eaton Crouse-Hinds series Pauluhn FBN marine interior
Catalog Number
FBN28DS
UPC
662276393349
Product Length/Depth
14.38 in
Product Height
3.5 in
Product Width
4.25 in
Product Weight
2.9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth
Number of lamps
2-lamp
Wattage
8W
Light type
T5
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Special features
2-pole toggle switch
Crouse-Hinds series Pauluhn FBN/FMN Marine Interior Berth and Mirror Lights catalog page
IF LBL1524 - FBN/FMN Fluorescent Luminaires
Eaton Specification Sheet - FBN28DS
Feature: Two-lamp, 8W, 120 VAC, 60 Hz T5 lighting in a compact Berth-style unit. Business Impact: Delivers sufficient illumination with low energy use, helping reduce operating costs while preserving battery and generator reserves on vessels. Application: Ideal for ship berths and crew cabins where space is limited and reliable lighting is essential. Feature: Aluminum housing with acrylic lens. Business Impact: Excellent corrosion resistance and durable optics in salt-air environments, extending service life and reducing replacement cycles. Application: Marine interior installations exposed to humidity and spray in berths and companionways. Feature: Wall-mount mounting method. Business Impact: Simplifies retrofit and new installs in restricted spaces, enabling faster on-site assembly and crew training time savings. Application: Common in berths, crew bunks, and compact crew compartments. Feature: NEC/CEC standards compliance with Ordinary/Non-Hazardous Location rating. Business Impact: Regulatory readiness and safer operation with an installation compliant to maritime electrical codes. Application: Shipboard lighting where regulatory adherence is a prerequisite and downtime must be minimized. Feature: Berth-type, 2-pole toggle switch. Business Impact: Intuitive control reduces crew error and training burden, supporting quick light adjustments during routine port calls. Application: Berth lighting control in cabin areas and crew quarters.
Get a Quick Quote for a Eaton FBN28DS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FBN28DS?
Enquire Now
FAQs
The FBN28DS is designed for wall mounting in berth areas and other compact spaces. Its Berth-type form factor supports straightforward retrofit or new installation, with mounting provisions that fit typical wall surfaces in crew cabins and compartments. Ensure clearance for the acrylic lens and access to the 2-pole toggle switch for convenient operation.
The luminaire operates at 120 VAC, 60 Hz and provides a total wattage of 8W with two T5 lamps. It is intended for ordinary/non-hazardous locations under NEC/CEC guidelines, making it suitable for standard shipboard electrical systems without special hazardous-area protections.
Yes. The FBN28DS is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, ensuring regulatory compatibility for typical vessel interiors, berths, and crew spaces where safety and reliability are paramount.
The fixture uses an aluminum housing with an acrylic lens. This combination offers robust corrosion resistance in salty, humid environments and provides clear illumination with durable optics, reducing maintenance needs and sustaining performance across voyages and port calls.
With a two-lamp configuration and 8W output, routine maintenance focuses on lamp replacement and ensuring the two-pole toggle switch operates reliably. Its durable materials and straightforward access support reduced downtime, while NEC/CEC compliance helps minimize regulatory interruptions during inspections.
