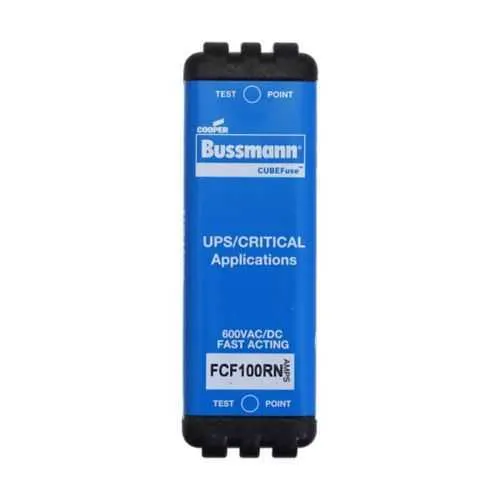

Eaton FCF100RN Fuse - UL Listed Class CF, 200 kAIC
Part Number: FCF100RN
Quick Summary
Eaton Bussmann FCF fuse provides fast-acting overcurrent protection for 600 Vac and 600 Vdc power circuits in industrial control panels. Nuisance trips and downtime from undersized protection can derail production when fast replacement parts are unavailable. UL Listed, CSA Certified, and CE Marked RoHS Compliant, this device helps meet safety and regulatory requirements across global facilities. The blade-end, Class CF fast-acting design supports reliable plug-in installation in dense switchgear, reducing field labor and risk of miswiring. Ideal for power distribution and machine interfaces, it delivers predictable protection, minimizes nuisance maintenance, and supports efficient lifecycle management in automation networks.
Product Information
Extended Description
FCF100RN Eaton: Eaton Bussmann Series UL Class CF, FCF fuse, fast-acting, single-element cube fuse, 100 A, non-idicating fuse, interrupting rating of 50 kA at 600 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series FCF fuse
Catalog Number
FCF100RN
UPC
051712362573
Product Length/Depth
3.01 in
Product Height
2.125 in
Product Width
1 in
Product Weight
0.284 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
100 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
200 kAIC at 600 Vac 50 kAIC at 600 Vdc
Response time
8 min at 200%
Voltage rating
600 Vac, 600 Vdc
Color
Black
Fuse type
Class CF Fast acting
Material
Glass filled PES
Number of elements
1
Operating Temperature
-40° to 80°C
Packaging type
Standard
Terminal material
Electroless tin plated copper alloy terminal
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Used with
TCFH100N, CCP2-3-100CF
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series Fast-acting CUBEFuse data sheet no. 2147
Feature: High interrupt rating of 200 kAIC at 600 Vac provides robust protection for line-side faults. Business Impact: This reduces the risk of cascading faults and gear damage in large power panels, lowering fleet-wide replacement costs. Application: Suitable for distribution panels feeding motor drives and industrial controls in manufacturing lines. Feature: Fast-acting single-element cube fuse design enables rapid interruption during overload events. Business Impact: Shortens fault-clearing time, improving overall equipment reliability and reducing arc-flash exposure for technicians. Application: Ideal for DC and AC circuits in control cabinets and process equipment. Feature: Non-indicating status with blade-end connection simplifies installation and maintenance. Business Impact: Minimizes commissioning time and reduces wiring errors, supporting faster changes in dynamic automation lines. Application: Replacement, upgrades, and retrofit projects in legacy equipment. Feature: Wide operating temperature range of -40° to 80°C ensures stability in demanding environments. Business Impact: Maintains protection accuracy across outdoor enclosures and factory floors subject to temperature swings. Application: Outdoor panels, dusty environments, and high-temperature machining cells. Feature: Compact 3.01 in length, 1 in width, 2.125 in height with a single element and glass filled PES construction. Business Impact: Facilitates dense packing in control panels and reduces overall cabinet footprint. Application: Retrofit and new builds where space is at a premium. Feature: Blade-end terminal and tin-plated copper alloy construction provide durable, low-resistance connections. Business Impact: Enhances connection reliability and reduces contact resistance over the fuse’s life. Application: Panel assemblies and device interconnections in industrial power systems. Feature: Compliance and certifications including UL Listed, CSA Certified, and CE RoHS. Business Impact: Simplifies procurement and regulatory validation for global projects. Application: Global manufacturing facilities and multi-country installations.
Get a Quick Quote for a Eaton FCF100RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FCF100RN?
Enquire Now
FAQs
Install the blade-end fuse into a matching blade terminal holder designed for Class CF cube fuses. Verify the fuse length of 3.01 in and width of 1 in, ensure proper alignment with terminals, and secure with the panel’s standard mounting hardware. Confirm ambient temperature within -40 to 80°C and check that the holder supports 100 A rating to avoid overheating or premature failure.
The FCF100RN provides a 100 A amperage rating, a voltage rating of 600 Vac and 600 Vdc, and interrupt ratings of 200 kAIC at 600 Vac and 50 kAIC at 600 Vdc. It offers a response time of 8 minutes at 200% overload conditions, supporting predictable protection for critical loads in automation systems.
Yes. The fuse is designed for control panels and motor drive protection, with a Class CF fast-acting profile, a wide operating temperature range, and compatibility with standard Eaton holders. It is UL Listed, CSA Certified, CE RoHS compliant, and rated for 50–60 Hz operation, making it suitable for diverse industrial applications.
The FCF100RN is UL Listed, CSA Certified, and CE Marked RoHS Compliant, providing safety validation and regulatory alignment for global installations and procurement programs.
As a fast-acting cube fuse, plan for periodic inspection in high-demand lines and prepare replacement spares to minimize downtime. The fuse is non-indicating, so incorporate routine electrical testing and panel diagnostics to confirm continued protection, and ensure compatibility with existing holders to avoid contact resistance or misfit during swaps.
