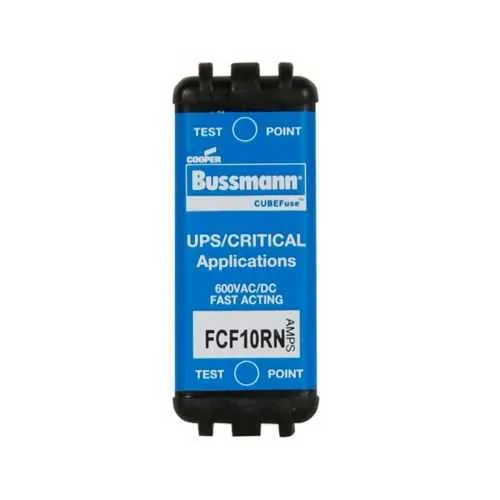

Eaton FCF10RN Fuse - UL Listed CSA Certified 600 V
Part Number: FCF10RN
Quick Summary
The Eaton FCF10RN fuse is a fast-acting Class CF cube fuse for protecting industrial DC and AC circuits. When downtime from nuisance trips or inconsistent protection erodes productivity, reliable protection and predictable trip curves help keep systems online. The device carries UL Listed and CSA Certified ratings, is CE Marked, and RoHS compliant, supporting global deployments and regulatory compliance. In compact blade-end form, it fits Eaton Bussmann series compatible panels and layouts such as TCFH30N and CCP2-3-30CF, enabling easy stocking and fast replacement. This fuse combines robust overload protection with superior cycling capabilities, delivering a favorable total cost of ownership for electrical protection across automation and process applications.
Product Information
Extended Description
FCF10RN Eaton: Eaton Bussmann Series UL Class CF, FCF fuse, fast-acting, single-element cube fuse, 10 A, non-idicating fuse, interrupting rating of 50 kA at 600 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series FCF fuse
Catalog Number
FCF10RN
UPC
051712362443
Product Length/Depth
1.88 in
Product Height
1.75 in
Product Width
0.75 in
Product Weight
0.08 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
10 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
50 kAIC at 600 Vdc 300 kAIC at 600 Vac
Response time
4 min at 200%
Voltage rating
600 Vac, 600 Vdc
Color
Black
Fuse type
Class CF Fast acting
Material
Glass filled PES
Number of elements
1
Operating Temperature
-40° to 80°C
Packaging type
Standard
Terminal material
Electroless tin plated copper alloy terminal
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Used with
TCFH30N, CCP2-3-30CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series Fast-acting CUBEFuse data sheet no. 2147
Feature → Business Impact → Application: 10 A amperage rating and Class CF fast-acting design deliver precise overcurrent protection with rapid fault isolation, reducing fault energy and downtime in drive and PLC power rails. This supports higher line reliability and longer equipment life in automation panels, where space is at a premium and quick reset is essential. Feature → Interruption ratings of 50 kAIC at 600 Vdc and 300 kAIC at 600 Vac provide robust short-circuit protection for mixed DC/AC networks, enabling safer startup sequences and minimized panel cathode stress in motor controllers and power distributions. Feature → Blade-end connection, 1-element cube fuse, and compact 1.88 in length simplify installation in tight panels and retrofit projects, reducing labor time and stocking complexity. Feature → Glass-filled PES body and nickel-like end recommendations offer dependable mechanical integrity in harsh factory environments, supporting higher cycling for frequent on/off operations. Feature → RoHS and CE compliance with UL Listed and CSA Certified ratings give engineers confidence for global deployments, reducing compliance overhead and accelerating procurement. Feature → Operating temperature range of -40° to 80°C ensures stable protection in extreme factory conditions, improving uptime in outdoor or harsh indoor installations. Feature → Compatibility with Bussmann series products and common panel layouts such as TCFH30N and CCP2-3-30CF enables seamless integration and minimizes parts obsolescence, enabling better spare-part planning and procurement.
Get a Quick Quote for a Eaton FCF10RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FCF10RN?
Enquire Now
FAQs
Yes. The FCF10RN uses a blade-end connection designed for Bussmann series panels and is compatible with common drive and PLC power-entry layouts such as TCFH30N and CCP2-3-30CF. Its compact 1.88 in length and 0.75 in width simplify retrofit work, while the blade-end termination ensures reliable mechanical and electrical contact in crowded control panels.
The fuse delivers a 10 A rating, with a voltage rating of 600 Vac / 600 Vdc. It provides an interrupt rating of 50 kAIC at 600 Vdc and 300 kAIC at 600 Vac, and features a fast-acting response time suitable for protecting DC buses and AC circuits in automation equipment. It is non-indicating and designed for Class CF applications.
The FCF10RN is UL Listed and CSA Certified, CE Marked, and RoHS compliant. These certifications ensure safety and regulatory compliance across North American and European markets, simplify supplier qualification, and support global deployment in diverse industrial environments.
Physical dimensions are 1.88 in length, 1.75 in height, and 0.75 in width. The operating temperature range is -40°C to 80°C, enabling reliable protection in extreme factory conditions and in outdoor or harsh indoor installations without compromising performance.
The fast-acting Class CF design reduces fault energy and downtime, improving system availability and uptime. Its 1-element cube format and blade-end terminals simplify stock management and replacement, lowering maintenance labor costs. Global certifications and Bussmann-series compatibility streamline procurement and warranty support, delivering a lower total cost of ownership in regulated industrial environments.
