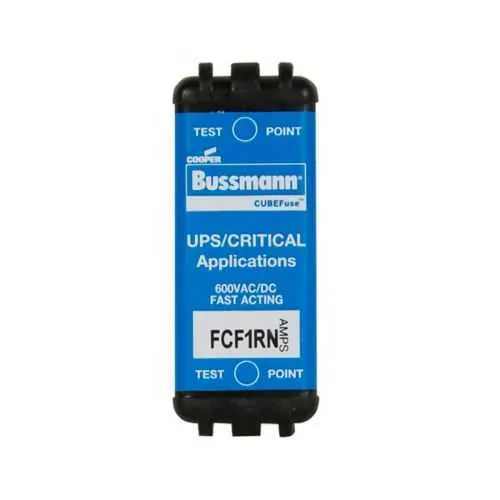

Eaton FCF1RN Fast-Acting Fuse - UL Class CF, 600V
Part Number: FCF1RN
Quick Summary
FCF1RN fuse from Eaton provides fast-acting overcurrent protection for control panels and motor circuits in industrial environments. In fast-paced manufacturing, nuisance trips and poor selectivity drive downtime and costly maintenance, so reliable protection and easy troubleshooting matter. This device carries UL Listed and CSA Certified marks, plus CE RoHS compliance, giving you regulatory peace of mind across global installations. Its compact blade-end design simplifies installation in crowded enclosures and complements TC series hardware for consistent, cost-effective protection. Rated at 1 A and 600 V, it supports both AC and DC applications. The glass-filled PES body and tin-plated terminals ensure dependable performance in temperature extremes and vibration, aligning with broader Eaton protection strategies.
Product Information
Extended Description
FCF1RN Eaton: Eaton Bussmann Series UL Class CF, FCF fuse, fast-acting, single-element cube fuse, 1 A, non-idicating fuse, interrupting rating of 50 kA at 600 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series FCF fuse
Catalog Number
FCF1RN
UPC
051712362412
Product Length/Depth
1.88 in
Product Height
1.75 in
Product Width
0.75 in
Product Weight
0.08 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
1 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
300 kAIC at 600 Vac 50 kAIC at 600 Vdc
Response time
4 min at 200%
Voltage rating
600 Vac, 600 Vdc
Color
Black
Fuse type
Fast acting Class CF
Material
Glass filled PES
Number of elements
1
Operating Temperature
-40° to 80°C
Packaging type
Standard
Terminal material
Electroless tin plated copper alloy terminal
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Used with
TCFH30N, CCP2-3-30CF
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fuseology
Bussmann series Fast-acting CUBEFuse data sheet no. 2147
Feature: 1 A fast-acting Class CF fuse. Business Impact: Delivers precise overcurrent protection for low-current control circuits, reducing nuisance trips and enabling predictable startup and shutdown sequences. Application: Ideal for small control panels and signaling branches within industrial equipment. Feature: High interrupt ratings of 300 kAIC at 600 Vac and 50 kAIC at 600 Vdc. Business Impact: Protects equipment from high-energy faults, lowering the risk of collateral damage and unscheduled downtime. Application: Power distribution nodes and DC bus sections in mixed AC/DC environments. Feature: Operating temperature range from -40°C to 80°C. Business Impact: Ensures reliable protection in harsh industrial climates and vibration-prone environments, improving service life and maintenance planning. Application: Enclosures in manufacturing floors, outdoors, or assemblies subject to ambient fluctuations. Feature: Compliance and certifications—UL Listed, CSA Certified, CE RoHS. Business Impact: Facilitates global procurement and regulatory compliance, simplifying audits and vendor qualification. Application: Global factories and multinational projects requiring traceable safety standards. Feature: Blade-end connection with glass-filled PES and tin-plated copper terminal. Business Impact: Enables quick installation, robust terminal contact, and long-term reliability with ease of replacement. Application: Standard fuse holders and Eaton’s protection-device ecosystem. Feature: Compatibility with Eaton family hardware (Used with TCFH30N, CCP2-3-30CF). Business Impact: Streamlines system design and spare-part planning, reducing BOM complexity and stocking costs. Application: Integrated protection schemes in control panels and motor drive assemblies.
Get a Quick Quote for a Eaton FCF1RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FCF1RN?
Enquire Now
FAQs
FCF1RN uses a blade-end connection and is designed to fit standard Eaton Bussmann Class CF holders and assemblies. It is compatible with TCFH30N and CCP2-3-30CF configurations, ensuring a reliable mechanical and electrical fit in control panels. This compatibility reduces installation time and minimizes the risk of improper fuse seating during replacement.
The FCF1RN is rated 1 A with a voltage rating of 600 Vac and 600 Vdc. It provides an interrupt rating of 300 kAIC at 600 Vac and 50 kAIC at 600 Vdc, and a typical response time of 4 minutes at 200% delay. These specs support fast, selective protection for low-current circuits while tolerating short overload events.
This fuse is well suited for industrial control panels, motor circuits, and DC distribution networks at 600 V class systems. Its compact size and blade-end design enable easy integration into crowded enclosures, while its ratings support both AC and DC applications typical of industrial automation, process control, and electrical protection schemes.
FCF1RN carries UL Listed and CSA Certified marks, along with CE RoHS compliance. These certifications support global regulatory requirements and supplier qualifications, helping to streamline procurement, audits, and cross-border deployments in manufacturing, automotive, and energy sectors.
Consider the blade-end connection and the enclosure space when planning replacements. The device measures 1.88 in L × 1.75 in H × 0.75 in W, with a -40°C to 80°C operating range and glass-filled PES material with tin-plated copper terminals. Use in compatible fuse holders like TCFH30N or CCP2-3-30CF assemblies to ensure reliable contact and ease of maintenance.
