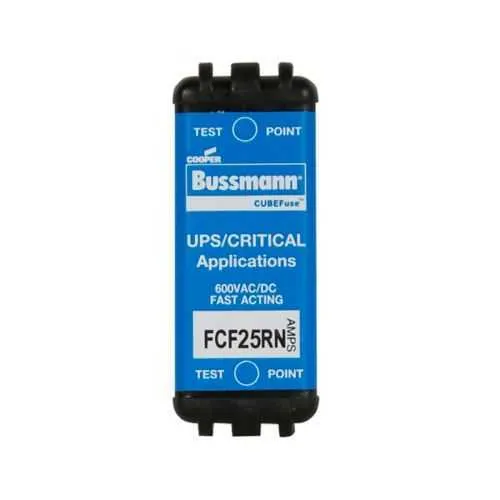

Eaton FCF25RN Fuse - UL Listed Class CF Fast-Acting Cubefuse
Part Number: FCF25RN
Quick Summary
Eaton FCF25RN fuse provides fast-acting overcurrent protection for electrical distribution panels and industrial machinery. Nuisance trips and unplanned downtime from undersized or mismatched fuses can throttle production and complicate maintenance. This device is CE marked and RoHS compliant, with UL Listed and CSA Certified approvals that support global safety and reliability requirements. Designed for low-voltage branch circuits, it helps ensure predictable protection in industrial environments while simplifying spare-parts planning and regulatory reporting.
Product Information
Extended Description
FCF25RN Eaton: Eaton Bussmann Series UL Class CF, FCF fuse, fast-acting, single-element cube fuse, 5 A, non-idicating fuse, interrupting rating of 50 kA at 600 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series FCF fuse
Catalog Number
FCF25RN
UPC
051712362474
Product Length/Depth
1.88 in
Product Height
1.75 in
Product Width
0.75 in
Product Weight
0.08 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
25 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
50 kAIC at 600 Vdc 300 kAIC at 600 Vac
Response time
4 min at 200%
Voltage rating
600 Vac, 600 Vdc
Color
Black
Fuse type
Class CF Fast acting
Material
Glass filled PES
Number of elements
1
Operating Temperature
-40° to 80°C
Packaging type
Standard
Terminal material
Electroless tin plated copper alloy terminal
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Used with
TCFH30N, CCP2-3-30CF
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fuseology
Bussmann series Fast-acting CUBEFuse data sheet no. 2147
The 25 A amperage rating paired with a 600 Vac/600 Vdc rating enables precise matching to motor starters and control circuits, reducing nuisance trips and protecting valuable equipment. This precision supports uptime in manufacturing lines by preventing unnecessary outages and shortening repair cycles. The fuse offers high interrupt ratings of 50 kAIC at 600 Vdc and 300 kAIC at 600 Vac, enabling safe interruption of heavy fault currents and protecting feeders and switchgear from damage. Its non-indicating design with blade-end connection simplifies field service and enables quick replacement in standard CF fuse holders, reducing downtime during maintenance. The robust construction uses glass-filled PES material and tin-plated copper alloy terminals, allowing reliable operation across harsh environments from -40°C to 80°C and resisting wear from frequent cycling. Compliance and certifications—CE, RoHS, UL Listed, CSA Certified—support traceability and regulatory adherence across global projects. Compatibility with common Bussmann CF accessories and assemblies such as TCFH30N and CCP2-3-30CF streamlines procurement and inventory management for engineering teams.
Get a Quick Quote for a Eaton FCF25RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FCF25RN?
Enquire Now
FAQs
The FCF25RN uses a blade-end connection designed for Bussmann CF fuse holders. To install, align the blade terminals with the holder contacts, press until seated, and ensure the panel or enclosure supports 1 element per cube fuse. This design supports quick field replacement and reduces service time during maintenance.
The fuse is rated for 25 A with 600 Vac and 600 Vdc operation. It provides 50 kAIC interrupt rating at 600 Vdc and 300 kAIC at 600 Vac. The device is UL Listed and CSA Certified and RoHS/CE compliant, with a non-indicating indicator and a blade-end connection for straightforward integration.
Yes. The FCF25RN is CE Marked and RoHS Compliant, in addition to UL Listed and CSA Certified, meeting widely adopted international safety and environmental requirements and simplifying regulatory reporting for multinational projects.
Dimensions are 1.88 in (length) × 1.75 in (height) × 0.75 in (width). The operating temperature range is -40°C to 80°C, and the fuse body is glass-filled PES with tin-plated copper alloy terminals for durable field performance.
Ideal for low-voltage branch circuits in electrical protection and circuit control across panels and machines, the FCF25RN delivers reliable overcurrent protection with fast response, high fault-current interrupt capability, and easy replacement. This translates to reduced downtime, lower maintenance costs, and improved regulatory compliance, contributing to a favorable total cost of ownership in industrial environments.
