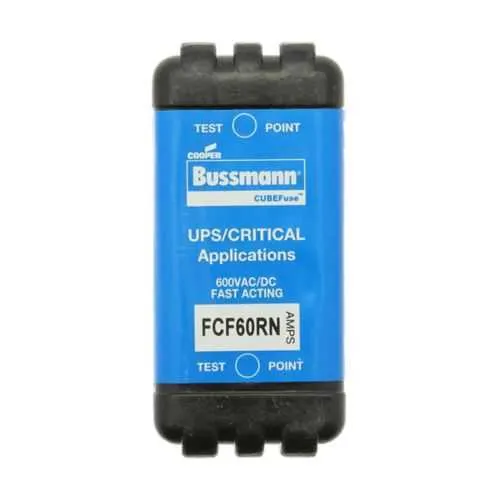

Eaton FCF60RN Fuse - UL Class CF Fast-Acting (60A)
Part Number: FCF60RN
Quick Summary
The Eaton FCF60RN fuse is a fast-acting overcurrent protector for industrial control panels and motor drives. Engineers often struggle to match interrupt ratings with load profiles and to ensure reliable cycling during repeated faults. This UL Listed, CSA Certified, CE Marked and RoHS compliant Class CF fuse is designed for dependable fast clearing, with 300 kAIC at 600 Vac and 50 kAIC at 600 Vdc. Manufacturers gain from standardized Bussmann series compatibility and compact packaging, which reduces panel space and inventory complexity while delivering robust protection across harsh industrial environments. The 60 A rating and single-element design support predictable, repeatable protection in mixed AC/DC applications, helping optimize downtime and maintenance costs.
Product Information
Extended Description
FCF60RN Eaton: Eaton Bussmann Series UL Class CF, FCF fuse, fast-acting, single-element cube fuse, 60 A, non-idicating fuse, interrupting rating of 50 kA at 600 Vdc and 300 kA at 600 Vac
Product Name
Eaton Bussmann series FCF fuse
Catalog Number
FCF60RN
UPC
051712362535
Product Length/Depth
2.13 in
Product Height
1.9 in
Product Width
1 in
Product Weight
0.17 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
60 A
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Interrupt rating
300 kAIC at 600 Vac 50 kAIC at 600 Vdc
Response time
6 min at 200%
Voltage rating
600 Vac, 600 Vdc
Color
Black
Fuse type
Class CF Fast acting
Material
Glass filled PES
Number of elements
1
Operating Temperature
-40° to 80°C
Packaging type
Standard
Terminal material
Electroless tin plated copper alloy terminal
Class
Class CF
Connection
Blade end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Used with
TCFH60N, CCP2-3-60CF
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series Fast-acting CUBEFuse data sheet no. 2147
Feature: Class CF fast-acting fuse with single-element cube design → Business Impact: Rapid fault clearance reduces arc energy and protects sensitive equipment, lowering risk of collateral damage and downtime → Application: Motor drives and control circuitry in 600 V systems. Feature: 60 A amperage rating with 600 Vac/600 Vdc voltage rating → Business Impact: Safe operation across AC/DC buses, enabling reliable protection for mixed-voltage panels and DC links in power electronics. Application: Rectifier banks, DC bus protection, and 3-phase systems. Feature: 300 kAIC at 600 Vac and 50 kAIC at 600 Vdc interrupt ratings → Business Impact: High fault tolerance for high-energy systems, reducing nuisance trips during inrush events in industrial plants. Application: Heavy machinery, presses, and corrective drives. Feature: Operating temperature range -40°C to 80°C and glass-filled PES body → Business Impact: Withstands harsh environments, maintaining performance in outdoor or cramped enclosures. Application: Food, beverage, and process automation panels. Feature: Blade-end connection and electroless tin plated copper terminals → Business Impact: Easy installation, reliable contact, and long-term corrosion resistance, lowering maintenance burden. Application: Retrofit and new panel builds with standard Bussmann interfaces. Feature: Compact dimensions (2.13 in L × 1 in W × 1.9 in H) and weight 0.17 lb → Business Impact: Space-saving form factor reduces enclosure footprint and shipping costs. Application: Tight control cabinets and modular power distribution blocks. Feature: Compliance and features (UL Listed, CSA Certified, CE Marked, RoHS Compliant, Superior overload and cycling capabilities) → Business Impact: Streamlined procurement, multi-region compliance, and durable cycling performance. Application: Global manufacturing lines and safety-critical equipment.
Get a Quick Quote for a Eaton FCF60RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FCF60RN?
Enquire Now
FAQs
The FCF60RN uses a blade-end connection designed for easy drop-in replacement in standard Bussmann series holders. Ensure the holder is rated for Class CF devices and the panel bus bars provide 600 Vac potential. Verify correct orientation and seating, then re-check enclosure clearances to maintain safe operating temperatures.
The FCF60RN provides 300 kAIC at 600 Vac and 50 kAIC at 600 Vdc. This supports fast fault clearance in high-energy AC systems while offering adequate protection for DC links in mixed-voltage applications typical in industrial controls.
Yes. With a 60 A rating and Class CF fast-acting profile, the fuse is appropriate for motor drives and associated control circuitry operating across typical 50–60 Hz environments, delivering reliable overload protection without excessive nuisance tripping.
The device is UL Listed, CSA Certified, CE Marked, and RoHS Compliant. These certifications support global procurement, compliance audits, and safe operation within regional electrical standards.
Expect periodic inspection during preventive maintenance, particularly in high-cycle or high-energy applications. The fuse’s superior overload and cycling capabilities reduce false trips, but plan for scheduled replacements based on observed cycling history, panel temperature, and load profiles to minimize downtime and optimize ROI.
