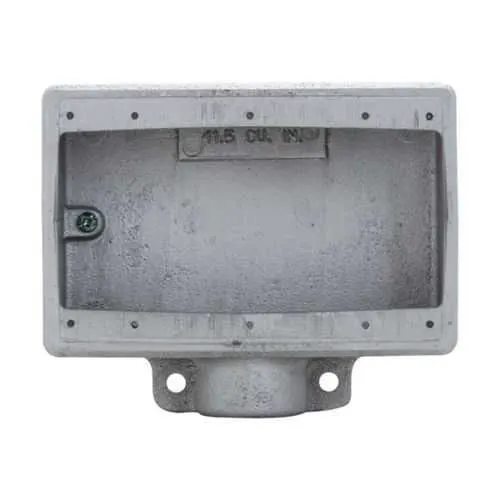

Eaton FD23 Condulet Device Box - Deep 3-Gang NEC/CEC
Part Number: FD23
Quick Summary
Eaton Condulet FD23 device box is a rugged, deep three-gang enclosure designed for surface-mount conduit installations in industrial controls. In projects with tight spaces and multiple conductors, installers often struggle to fit 3/4 inch conduit and wiring access; the FD23 addresses this with generous depth and a robust feraloy iron alloy body. It is NEC/CEC compliant and suitable for Ordinary/Non-Hazardous Locations, with Canadian certification documents available for stricter regulatory environments. For project teams, the combination of durable construction, straightforward installation, and compatibility with standard Condulet accessories translates into faster commissioning, reduced rework, and lower lifecycle costs.
Product Information
Extended Description
FD23 Eaton: Eaton Crouse-Hinds series Condulet FD device box, Deep, Feraloy iron alloy, Three-gang, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet FD device box
Catalog Number
FD23
UPC
782274397306
Product Length/Depth
7.7 in
Product Height
3.4 in
Product Width
6.2 in
Product Weight
5.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Deep
Number of gangs
3
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
Eaton Specification Sheet - FD23
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Deep three-gang FD device box provides ample internal space for 3/4" conduit and wiring. Business Impact: Improves wiring density control while reducing the risk of crowding and shorting, accelerating install time in control panels. Application: Ideal for industrial automation panels where space is at a premium and reliability is required. Feature: Feraloy iron alloy construction enhances durability and corrosion resistance. Business Impact: Extends lifecycle in harsh environments, lowering maintenance costs and downtime. Application: Suitable for outdoor-rated or service-area enclosures in ordinary/non-hazardous locations. Feature: Precise dimensions—7.7 in long, 6.2 in wide, 3.4 in tall—paired with a 5.3 lb weight. Business Impact: Predictable fit within control cabinet layouts and simplified enclosure planning. Application: Supports accurate layout planning and BOM accuracy for panel builds. Feature: Compliance with NEC/CEC standards and availability of Canadian certification. Business Impact: Reduces compliance risk, streamlines approvals, and supports cross-border deployments. Application: Useful for multinational projects and facilities adhering to multiple electrical codes. Feature: Three-gang, 3/4" trade size compatibility. Business Impact: Enables multiple circuit terminations in one enclosure, reducing accessory purchases. Application: Common in machinery and plant automation where multiple feeds share a single Condulet box.
Get a Quick Quote for a Eaton FD23
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD23?
Enquire Now
FAQs
Plan for the 7.7 x 6.2 x 3.4 inch enclosure with its 5.3 lb weight, ensuring proper wall mounting or surface mounting, secure conduits to the 3/4" openings, and use compatible covers. Follow NEC/CEC guidelines for non-hazardous locations; ensure wiring is arranged to avoid crowding in the deep cavity.
Yes. The FD23 is designed for Ordinary/Non-Hazardous Locations and is NEC/CEC compliant. Canadian certification documents are available if you need local approval, and UL/CSA references are accessible through the provided product literature.
The FD23 measures 7.7 inches in length, 6.2 inches in width, and 3.4 inches in height, with an approximate weight of 5.3 pounds, enabling accurate space planning and BOM accuracy for control panels.
Ideal for industrial automation, control panels, and surface-mounted conduit installations where multiple 3/4" feeds must be consolidated in a single enclosure. The feraloy iron alloy body provides durable protection in demanding environments.
Durable feraloy iron alloy construction reduces corrosion and wear, lowering maintenance downtime. Compliance with NEC/CEC minimizes risk during audits, while the deep three-gang design speeds up installation, driving faster project throughput and lower lifecycle costs.
