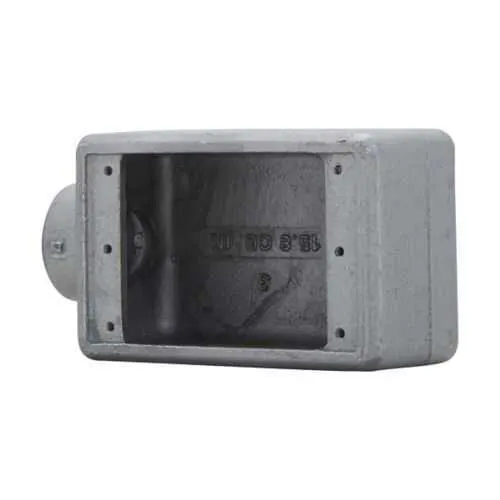

Eaton FD3 Condulet FD Device Box - Feraloy iron alloy
Part Number: FD3
Quick Summary
Eaton Crouse-Hinds Condulet FD device box is a rugged, single-gang enclosure designed for 1-inch trade-size devices in industrial control panels. This FD3 model addresses space constraints and corrosion risks in harsh environments with a deep body and feraloy iron alloy construction. It carries NEC/CEC certifications and is rated for ordinary/non-hazardous locations, supporting safe, code-compliant installations. By delivering predictable fits, straightforward mounting, and long-term durability, the FD3 enables OEMs and maintenance teams to reduce rework and downtime while preserving panel reliability.
Product Information
Extended Description
FD3 Eaton: Eaton Crouse-Hinds series Condulet FD device box, Deep, Feraloy iron alloy, Single-gang, 1"
Product Name
Eaton Crouse-Hinds series Condulet FD device box
Catalog Number
FD3
UPC
782274397009
Product Length/Depth
5.28 in
Product Height
2.75 in
Product Width
2.69 in
Product Weight
3.55 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Deep
Number of gangs
1
Trade size
1"
Material
Feraloy iron alloy
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers UL certification
FS and FD Device Boxes and Covers UL certification
FS and FD Device Boxes and Covers UL certification
Eaton Specification Sheet - FD3
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Deep 5.28 in depth and 2.69 in width with single-gang footprint. Benefit: Provides extra space for wiring and devices, improving termination safety and reducing field modifications. Application: Ideal for compact industrial control panels where wiring density is high and reliability is critical. Feature: Feraloy iron alloy construction. Benefit: Delivers exceptional mechanical protection and corrosion resistance, extending service life in demanding environments and lowering lifecycle costs. Application: Suitable for machining floors, conveyors, and process lines with exposure to moisture or contaminants. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Benefit: Streamlines regulatory approvals and ensures safe operation under standard electrical codes. Application: Used in general-purpose industrial facilities, packaging lines, and machine enclosures where hazardous ratings are not required. Feature: 1" trade size, 1-gang configuration. Benefit: Ensures compatibility with common devices and straightforward replacement or upgrades. Application: Widely used in retrofit projects and new equipment where standard device boxes are needed. Feature: Clear dimensional data and catalog alignment (FD3). Benefit: Reduces design iteration time and supports accurate BOMs. Application: Design engineers and installers rely on established footprints for accurate panel layout and procurement.
Get a Quick Quote for a Eaton FD3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD3?
Enquire Now
FAQs
The FD3 is a 1-gang, 1" trade-size device box with a depth of 5.28 in and width of 2.69 in. Install in ordinary/non-hazardous locations per NEC/CEC, align with conduit fittings, and mount using standard enclosure practices. Plan for wiring clearance and grounding per code to maintain proper safety margins.
Feraloy iron alloy provides superior abrasion and corrosion resistance, reducing wear from outdoor or damp environments and extending service life. This reduces maintenance cycles and replacement costs, which is especially valuable in high-vibration or moisture-prone industrial settings where enclosure integrity is critical.
The FD3 is rated for Ordinary/Non-Hazardous Locations and NEC/CEC-compliant installations. It is not designed for Class I, II, or III hazardous environments. For hazardous-location applications, select an enclosure specifically rated for those conditions to maintain compliance and safety.
FD3 carries NEC/CEC standards and UL/CSA-related certifications reflected in its product lineage. This supports regulatory compliance for general industrial use, simplifies approvals, and aligns with common global electrical installation practices in non-hazardous settings.
Durable Feraloy construction and a deep, space-conscious footprint reduce field rework and downtime, lowering maintenance costs over the life of the panel. Standardized 1" devices and compatibility with common components streamline procurement, installation, and future upgrades, delivering measurable ROI through improved reliability.
