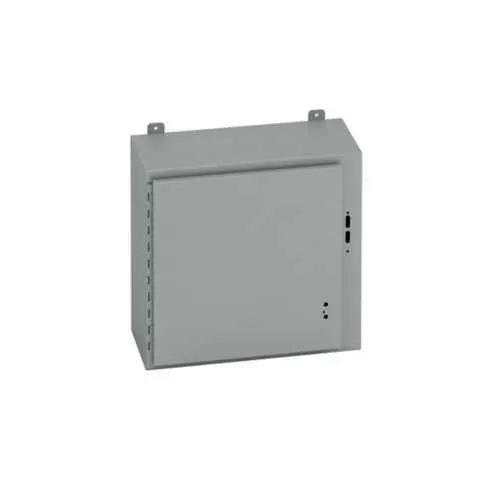

Eaton FD30218-12 Wall Disconnect Enclosure - NEMA 12
Part Number: FD30218-12
Quick Summary
Eaton FD30218-12 wall disconnect enclosure provides rugged protection for industrial control circuits. Engineers often struggle with downtime and maintenance when enclosures lack weather sealing or precise mounting. UL 508A, CSA C22.2, and NEMA 12 ratings ensure dependable performance and regulatory compliance in challenging environments. This model’s wall-mount design, external mounting feet, hinged cover, and seamless gasket deliver fast installation and reliable sealing against dust and moisture. With a carbon steel shell and ANSI 61 gray paint, it balances durability with serviceability, delivering long-term value for panel builders and maintenance teams.
Product Information
Extended Description
FD30218-12 Eaton: Eaton B-Line series wall mounted disconnect enclosure, 30" height, 18" length, 21" width, NEMA 12, Hinged cover, FD12 enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
FD30218-12
UPC
782051403220
Product Length/Depth
18 in
Product Height
30 in
Product Width
21 in
Product Weight
51.8 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
FD12 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover,recessed pullring,handle provision
NEMA Rating
12
Country of origin
US
Carbon steel construction with 14 gauge wall and painted ANSI 61 gray finish provides a durable enclosure that resists impact and environmental wear, reducing downtime and maintenance costs for switchgear and control panels. The seamless poured-in-place gasket delivers effective dust and moisture protection, improving reliability in dusty industrial floors and washdown areas while lowering ingress-related failures. A hinged cover plus removable cover enables rapid wiring, inspection, and service, cutting shutdown times and accelerating commissioning in automation projects. External mounting feet simplify wall installation and retrofits, enabling fast deployment in constrained spaces without additional brackets or hardware. The enclosure carries UL 508A, CSA C22.2 certification and a NEMA 12 rating, ensuring regulatory alignment and safe operation in typical industrial environments while supporting compliance documentation and audits.
Get a Quick Quote for a Eaton FD30218-12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD30218-12?
Enquire Now
FAQs
The enclosure is designed for wall mounting with overall dimensions of 30 inches in height, 21 inches in width and 18 inches in depth. It features external mounting feet to facilitate secure attachment to a wall surface and simplify alignment during installation and future repositioning.
The FD30218-12 carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating. These approvals confirm electrical protection performance, safe operation in industrial settings, and compliance with common regulatory requirements for control panels and switchgear enclosures.
NEMA 12 is generally intended for indoor use in dusty or light splash environments. For outdoor exposure or harsher weather, consider enclosures with NEMA 4X or higher ratings. The FD30218-12 provides robust indoor protection with a durable carbon steel shell and seal, but verify environmental conditions before installation.
Key maintenance features include a hinged cover for quick, full access and a removable cover for service flexibility. A recessed pullring and handle provision simplify operation, while external mounting feet enable rapid mounting and future repositioning without altering the wall structure.
This enclosure is well-suited for motor control centers, switchgear protection, and control panels in manufacturing and process industries. Its NEMA 12 rating, robust carbon steel construction, and accessible design support reliable isolation and service, helping to protect critical automation equipment while reducing downtime during maintenance.
