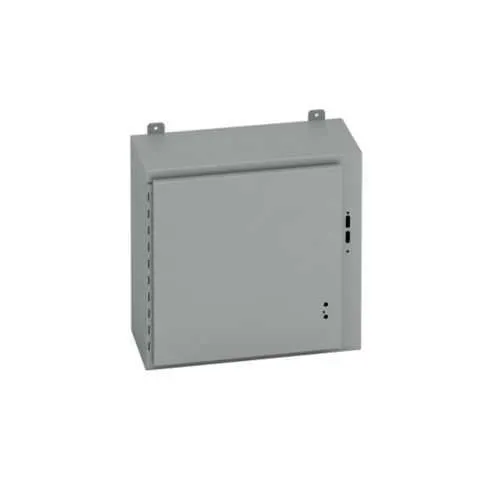

Eaton FD423110-12 Wall Mount Disconnect Enclosure - NEMA12
Part Number: FD423110-12
Quick Summary
The Eaton B-Line wall mounted disconnect enclosure FD423110-12 provides safe, compliant housing for industrial control panels. Engineers often wrestle with weather exposure, dust ingress, and hard-to-service wiring that can trigger downtime. With UL 508A, CSA C22.2, and a NEMA 12 rating, this enclosure meets core electrical standards for rugged environments. Its wall-mount design with external feet and a hinged, removable cover simplifies installation and maintenance, while the robust carbon steel construction and gasketed sealing help extend service intervals and reduce lifecycle costs. This combination delivers reliability, code compliance, and predictable performance for mission-critical control circuits in commercial and light manufacturing settings.
Product Information
Extended Description
FD423110-12 Eaton: Eaton B-Line series wall mounted disconnect enclosure, 42" height, 10" length, 31" width, NEMA 12, Hinged cover, FD12 enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
FD423110-12
UPC
782051406528
Product Length/Depth
10 in
Product Height
42 in
Product Width
31 in
Product Weight
102.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
FD12 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover,recessed pullring,handle provision
NEMA Rating
12
Country of origin
US
NEMA 12 protection guards against dust and moisture ingress, reducing field failures and downtime while protecting motor starters, relays, and control wiring during daily operations. The durable carbon steel shell with 14 gauge walls delivers long-term structural integrity, lowering replacement costs in high-traffic industrial spaces and supporting worry-free service in harsh environments. A hinged cover with a recessed pullring and a dedicated handle provision enables rapid maintenance access, expediting fault diagnosis and component changes without compromising safety or insulation. External mounting feet and a wall-mount configuration provide installation flexibility in tight plant layouts, enabling front-access servicing and straightforward retrofits that minimize overall project risk and downtime. Seamless poured-in-place gasket sealing further enhances reliability by keeping dust, splashes, and solvents at bay, supporting consistent operating conditions. UL 508A and CSA C22.2 approvals, together with the NEMA 12 rating, deliver regulatory confidence for U.S. and Canadian installations, while compatibility with the Eaton B-Line family simplifies system integration and future expansion. Overall, the FD423110-12 is a cost-effective choice for dependable control-panel protection, optimized for factory floors, machine rooms, and electrical closets alike.
Get a Quick Quote for a Eaton FD423110-12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD423110-12?
Enquire Now
FAQs
The FD423110-12 is designed for industrial control panels used on factory floors, machine rooms, and electrical closets. Its NEMA 12 rating protects against dust and moisture, making it ideal for environments with moderate exposure and frequent maintenance. Its wall-mount design saves space while providing front-access servicing for motor starters, relays, and control wiring.
NEMA 12 enclosures are built to guard against dust, light splashing water, and other non-corrosive elements. The FD423110-12 uses a seamless gasket and a hinged cover to maintain enclosure integrity, reducing ingress risks and helping maintain reliable operation of internal components in typical industrial settings.
Yes. The FD423110-12 features external mounting feet designed for stable wall mounting. This configuration supports flexible installation in constrained spaces, simplifies alignment, and enables service access from the front without removing the unit from the wall.
Plan for a wall-mounted footprint with external feet, ensuring adequate clearance for front-access maintenance and wiring. Verify surface durability to support the 102.3 lb weight, and confirm UL 508A and CSA C22.2 compliance requirements for your facility. Consider gasket sealing and potential chemical exposure when selecting finishes.
The durable carbon steel body, gasketed sealing, and hinged/removable cover reduce maintenance time, downtime, and replacement costs. UL/CSA compliance minimizes regulatory risk, while space-efficient wall mounting speeds installs and retrofits, delivering predictable long-term operating costs and improved uptime for critical control circuits.
