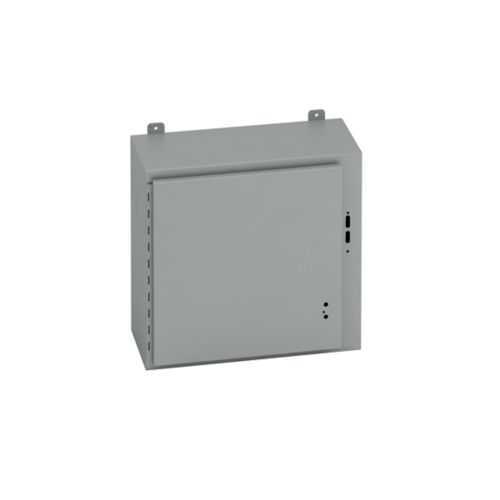

Eaton FD603712-12 Wall-Mount Disconnect Enclosure - NEMA12
Part Number: FD603712-12
Quick Summary
Eaton FD603712-12 wall-mount disconnect enclosure protects power feeds in industrial control panels. This robust solution addresses maintenance slowdowns caused by hard-to-service access and gasket degradation. UL 508A, CSA C22.2, and NEMA 12 ratings confirm reliable, code-compliant protection in harsh environments. The enclosure pairs a rugged carbon steel build with external mounting feet for straightforward installation, while a hinged cover and seamless gasket support long service life and safer, faster maintenance for control cabinets and process lines.
Product Information
Extended Description
FD603712-12 Eaton: Eaton B-Line series wall mounted disconnect enclosure, 60" height, 12" length, 37" width, NEMA 12, Hinged cover, FD12 enclosure, Large single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
FD603712-12
UPC
782051406740
Product Length/Depth
12 in
Product Height
60 in
Product Width
37 in
Product Weight
163.4 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large single door
Model
FD12 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Removable cover,recessed pullring,handle provision
NEMA Rating
12
Country of origin
US
Feature: Large single door with hinged cover. Business Impact: Maximizes access for wiring, testing, and replacement, reducing downtime during service. Application: Ideal for large control panels in assembly lines and process automation. Long-tail keywords: wall mounted enclosure, industrial disconnect, hinged cover enclosure. Feature: External mounting feet. Business Impact: Simplifies wall installation and alignment, reducing mounting time and misalignment risk. Application: Factory floor installations with limited service space. Long-tail keywords: external mounting feet, wall-mounted enclosure installation. Feature: Carbon steel 14 gauge body with ANSI 61 gray finish. Business Impact: Delivers rugged durability and corrosion resistance in demanding environments, lowering replacement costs. Application: Harsh plant floors, electrical rooms, and outdoor-adjacent areas. Long-tail keywords: carbon steel enclosure, 14 gauge steel, painted finish. Feature: Seamless poured-in-place gasket. Business Impact: Creates a dependable seal against dust and moisture, preserving internal components and reducing leak-related downtime. Application: NEMA 12 environments and cleanroom-adjacent spaces. Long-tail keywords: seamless gasket, ingress protection, NEMA 12 integrity. Feature: Removable cover, recessed pullring, handle provision. Business Impact: Facilitates quick service access and safe operation with turn-key handhold features. Application: Routine maintenance, panel upgrades, and retrofits. Long-tail keywords: removable cover, recessed pullring, handle provision. Feature: Certifications and standards. Business Impact: Ensures regulatory compliance and acceptance across UL and CSA programs, easing procurement audits. Application: Electrical protection enclosures in regulated industries. Long-tail keywords: UL 508A compliant, CSA C22.2, NEMA rating 12.
Get a Quick Quote for a Eaton FD603712-12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD603712-12?
Enquire Now
FAQs
The FD603712-12 uses wall mounting with external mounting feet, enabling quick leveling and alignment without a separate mounting frame. This reduces field setup time and provides secure, vibration-resistant support for large control panels in industrial environments.
It carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating, with a carbon steel 14 gauge body. These specs ensure safe isolation, dust and water ingress protection, and compliance for electrical protection enclosures in demanding facilities.
Yes. Its large door, durable carbon steel construction, and sealed interior are well-suited for process automation panels, machine control cabinets, and other industrial electrical installations requiring reliable protection and easy access during maintenance.
Certified to UL 508A, CSA C22.2, and NEMA 12, this enclosure complies with widely recognized U.S. and Canadian electrical safety and protection standards, simplifying regulatory approvals and supplier qualification during project bidding.
The removable cover, recessed pullring, and gasket design minimize downtime during service, while the 14 gauge carbon steel body resists wear in tough environments. Over time, these features reduce maintenance cost and extend panel life, delivering measurable total cost of ownership improvements.
