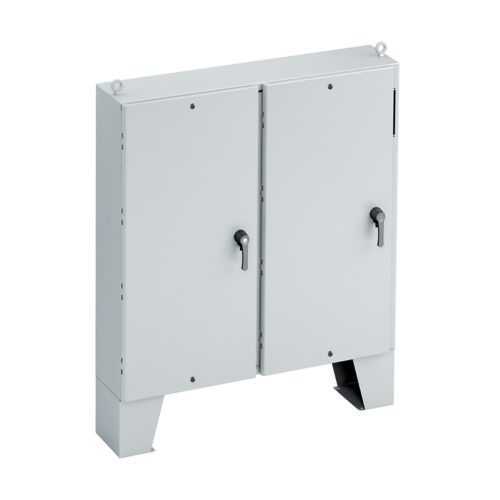

Eaton FD604912-4XSFD Ground Disconnect Enclosure - NEMA 4X
Part Number: FD604912-4XSFD
Quick Summary
The Eaton FD604912-4XSFD ground disconnect enclosure safely houses and protects electrical disconnects in industrial facilities. Engineers often struggle with corrosion, ingress, and costly downtime in harsh environments. UL 508A, CSA C22.2, and NEMA 4X ratings help ensure code compliance and rugged performance. Designed for B-Line series compatibility and ground-mount installations, this stainless steel enclosure delivers long-term reliability, straightforward maintenance, and reduced total cost of ownership. Its generous dimensions and a hinged cover support quick service, while a 3-point latch and oil-resistant gasket minimize maintenance interruptions. The corrosion-resistant stainless steel, oil-resistant gasket, and NEMA 4X protection make it suitable for washdown and outdoor installations. Operators benefit from clear access and quick field modifications thanks to a hinged cover, 12 bottom knockouts, and a 3-point latch.
Product Information
Extended Description
FD604912-4XSFD Eaton: Eaton B-Line series ground mounted disconnect enclosure, 60"height, 12"length, 49"width, NEMA 4X, Hinged cover, FD4XSFD enclosure, Ground mount, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
FD604912-4XSFD
UPC
799038790488
Product Length/Depth
49 in
Product Height
60 in
Product Width
12 in
Product Weight
382.534 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Stainless steel
Color
Stainless steel
Mounting method
Ground
Special features
3-pt latching handle
Bottom knockouts
12
Large ground mounted enclosure
Accessories section of Enclosure Catalog
Accessories section of Enclosure Catalog
Material and protection: The enclosure is built from stainless steel, delivering corrosion resistance in damp, oily, or washdown environments. This aligns with NEMA 4X protection and helps extend service life across multiple shifts. Operationally, that means fewer field repairs and lower preventive maintenance costs, particularly in food and beverage, chemical, or water treatment plants. It also supports regulatory compliance by maintaining enclosure integrity over time. Size, mounting, and durability: With 60 in height, 49 in length, and 12 in width, the FD604912-4XSFD accommodates large disconnect assemblies while preserving service access. Ground mounting provides stability in seismic or high-vibration applications, and the substantial 382.534 lb weight communicates robust protection against accidental impacts. For installers, the ground-mount method reduces mounting complexity on established frames. Security and seal: A hinged cover paired with a 3-point latching handle enhances operator security and seal integrity. The oil-resistant gasket further protects against leaks, supporting reliable operation in oil-rich environments and during routine maintenance. Cable entries and accessories: Twelve bottom knockouts enable flexible feed-through and routing, compatible with common conduit sizes and Eaton enclosure accessories catalog items. This simplifies field modifications and future capacity expansions without swapping enclosures. Certifications and compatibility: UL 508A, CSA C22.2 and NEMA ratings ensure code compliance and risk reduction in regulated facilities. The enclosure is designed for the Eaton B-Line series, enabling seamless integration with existing panels, accessories, and mounting hardware.
Get a Quick Quote for a Eaton FD604912-4XSFD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD604912-4XSFD?
Enquire Now
FAQs
When installing the FD604912-4XSFD, select a solid base suitable for a ground-mounted enclosure and align with existing B-Line components. Utilize the 12 bottom knockouts to route feeders, ensuring clear access around the hinged cover. Verify the oil-resistant gasket seating to maintain NEMA 4X protection and confirm UL 508A and CSA C22.2 labeling during commissioning for full compliance.
The enclosure carries UL 508A and CSA C22.2 listings and a NEMA 4X rating, indicating suitability for demanding environments. Its stainless steel construction, gasket seal, and hinged cover support continuous protection against corrosion, moisture, and dust ingress. Used within the Eaton B-Line family, it integrates with compatible accessories and mounting hardware to maintain regulatory compliance across facilities.
Yes. The NEMA 4X designation, combined with stainless steel construction and an oil-resistant gasket, provides strong resistance to washdowns, moisture, and corrosive exposure typical of outdoor or industrial settings. The hinged cover facilitates routine inspections without compromising protection. For outdoor sites, ensure cables are routed through bottom knockouts with weatherproof entries and proper sealing during installation.
Industries such as oil and gas, water treatment, chemical processing, food and beverage, and general manufacturing benefit from this enclosure. Its large footprint accommodates substantial disconnect assemblies while preserving service access. Ground mounting reduces vibration and improves stability in demanding environments, while stainless steel helps meet hygiene and corrosion requirements. It also provides a reliable platform for control panels and motor starter configurations.
Investing in the FD604912-4XSFD reduces downtime by limiting corrosion-related failures and seal leaks over the enclosure’s life. The combination of NEMA 4X protection, sturdy stainless steel, and a 3-point latch simplifies maintenance scheduling and reduces field labor for serviceability. Although upfront costs are higher than lighter enclosures, the extended service life and lower maintenance demand yield a favorable ROI in demanding facilities.
