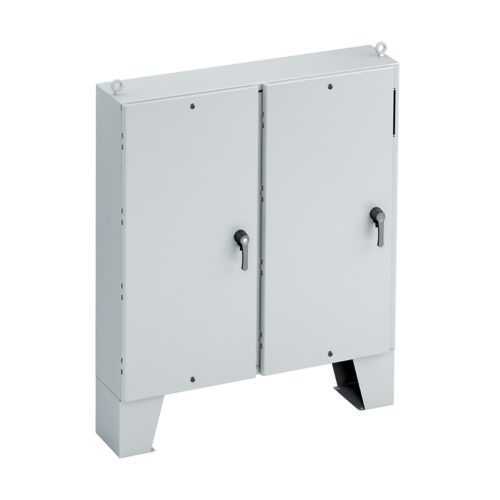

Eaton FD604918-4XSFD Ground Disconnect Enclosure - NEMA 4X
Part Number: FD604918-4XSFD
Quick Summary
Ground Mounted Disconnect Enclosure from Eaton provides rugged protection for electrical disconnects in harsh industrial environments. Facing weather ingress, corrosion, and service downtime, engineers need reliable, long-lasting housings that reduce maintenance cycles and patch up safety gaps. It carries UL 508A and CSA C22.2 certifications and a NEMA rating, signaling robust electrical protection and regulatory compliance for controlled facilities. The design uses stainless steel with an oil-resistant gasket and a hinged cover, delivering durable sealing and simple access for routine checks. With a 60 in height, 49 in length, and 18 in width, plus 12 bottom knockouts and a 3-point latching handle, it supports large arrays and flexible conduit routing while enabling quick, compliant installations.
Product Information
Extended Description
FD604918-4XSFD Eaton: Eaton B-Line series ground mounted disconnect enclosure, 60"height, 12"length, 49"width, NEMA 4X, Hinged cover, FD4XSFD enclosure, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
FD604918-4XSFD
UPC
799038790525
Product Length/Depth
49 in
Product Height
60 in
Product Width
18 in
Product Weight
433.894 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Stainless steel
Color
Stainless steel
Mounting method
Ground
Special features
3-pt latching handle
Bottom knockouts
12
Stainless steel construction delivers exceptional corrosion resistance and long-term durability, even in washdown or outdoor environments. This translates to lower maintenance costs and fewer unplanned outages for critical power-distribution equipment. The 60 in height, 49 in length, and 18 in width profile supports large control assemblies and simplifies installation in space-constrained facilities. Oil-resistant gasket coupled with a hinged cover provides reliable sealing against dust, water, and solvents. By reducing ingress and moisture-related wear, maintenance cycles are extended and downtime is minimized. These sealing attributes are particularly valuable in food processing, chemical, and wastewater environments where cleanliness and reliability are essential. 3-point latching handle increases security and safety during operation and maintenance, resisting accidental openings and tampering. The robust latch complements vibration and impact resistance found in industrial floors or outdoor settings. Together with UL 508A and CSA C22.2 certifications, it supports compliant, safe operation across multiple jurisdictions. Bottom knockouts (12) and ground-mount capability offer flexible conduit routing and stable installation in a range of layouts. This flexibility reduces wiring time and allows for scalable control-system expansion without replacing the enclosure. Certifications and standards: UL 508A, CSA C22.2, and NEMA ratings validate performance under defined electrical and environmental conditions.
Get a Quick Quote for a Eaton FD604918-4XSFD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD604918-4XSFD?
Enquire Now
FAQs
The enclosure is designed for ground mounting and features 12 bottom knockouts to accommodate a variety of conduit configurations. This setup supports flexible routing and simplifies integration with existing plant layouts. Professionals can plan wiring runs, minimize field modifications, and achieve compliant, tidy installations in space-constrained rooms or outdoor areas.
This enclosure carries UL 508A and CSA C22.2 certifications, along with NEMA ratings, signaling compliance with recognized electrical safety and performance standards. For contractors and inspectors, these certifications facilitate regulatory audits, ensure safe operation of disconnects, and support project approvals in manufacturing, water treatment, and chemical processing facilities.
Ideal for large control-panel deployments in manufacturing, wastewater treatment, and process industries, this stainless steel, NEMA 4X enclosure protects disconnects from dust, moisture, and corrosive exposure. Its dimensions support sizable control assemblies, while the gasketed, hinged design enables quick maintenance access without compromising safety or enclosure integrity.
Stainless steel offers superior corrosion resistance and structural integrity in washdown, outdoor, and chemical environments. This reduces rust-related degradation, minimizes repainting or remediation, and lowers overall maintenance costs. The result is longer intervals between service and steadier performance for critical power-distribution interfaces.
Although initial investment is higher than minimal enclosures, the combination of corrosion resistance, sealed ingress protection, and durable hardware yields lower long-term maintenance costs and less downtime. With fewer field replacements and easier service access, facilities experience faster project completion, improved uptime, and regulatory compliance across multiple jurisdictions.
