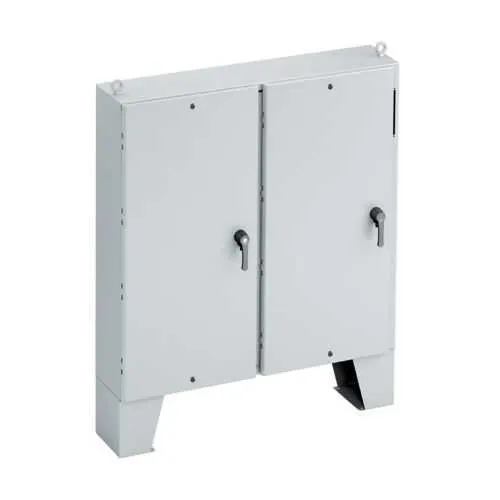

Eaton FD606112-4XSFD Ground Disconnect Enclosure - NEMA 4X
Part Number: FD606112-4XSFD
Quick Summary
Eaton FD606112-4XSFD ground disconnect enclosure protects electrical gear in outdoor or harsh environments, providing safe isolation for disconnect operations and compliant enclosure management. Many engineers contend with corrosion, weather ingress, and costly downtime during maintenance; a stainless steel, NEMA 4X enclosure minimizes exposure, simplifies seal replacement, and extends service intervals. UL 508A and CSA C22.2 listings validate electrical safety, while the NEMA rating confirms environmental protection against dust, water, and moisture ingress. As part of Eaton's B-Line series, this ground-mounted enclosure leverages a 3-point latching handle, oil-resistant gasket, and 12 bottom knockouts to enable faster installation, scalable configurations, and lower lifecycle costs, improving plant uptime.
Product Information
Extended Description
FD606112-4XSFD Eaton: Eaton B-Line series ground mounted disconnect enclosure, 60"height, 12"length, 61"width, NEMA 4X, Hinged cover, FD4XSFD enclosure, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
FD606112-4XSFD
UPC
799038790495
Product Length/Depth
61 in
Product Height
60 in
Product Width
12 in
Product Weight
440.689 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Stainless steel
Color
Stainless steel
Mounting method
Ground
Special features
3-pt latching handle
Bottom knockouts
12
General specifications set the foundation for reliable performance in demanding facilities. The FD606112-4XSFD is a stainless steel, ground-mounted enclosure with a 60 inch height, 61 inch length, and 12 inch width, designed to house disconnect components while meeting UL 508A, CSA C22.2, and NEMA protection requirements. The material and finish deliver corrosion resistance and long-term durability in challenging environments, reducing repainting and maintenance cycles in outdoor or wash-down areas. The 12 bottom knockouts provide flexible conduit routing, enabling rapid field wiring changes as a plant evolves. The 3-point latching handle enhances security and weather sealing, while the oil-resistant gasket maintains gasket integrity under oily environments often encountered near equipment bays. Together, these features translate to fewer field interventions, safer operation, and lower total cost of ownership. This enclosure is compatible with the Eaton B-Line series ecosystem, supporting scalable configurations for growing facilities and retrofits. The combination of size, weight capacity (440.689 lb), and robust construction helps ensure reliability in utility, water treatment, and manufacturing environments, while meeting stringent industry standards for safety and performance.
Get a Quick Quote for a Eaton FD606112-4XSFD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD606112-4XSFD?
Enquire Now
FAQs
The enclosure is designed for ground-mounted installation with a sturdy stainless steel chassis. Ensure a level base, adequate clearance for service access, and proper anchoring to prevent wind load impacts. Utilize the 12 bottom knockouts to route conduits efficiently, and plan for the 60 in height and 61 in length within your plant layout to avoid clearance conflicts. Coordinate with electrical drawings to maintain safe clearances and proper enclosure ventilation as required by local codes.
Yes, the FD606112-4XSFD is rated for harsh environments with a NEMA 4X protection class, suitable for outdoor and wash-down areas. It carries UL 508A and CSA C22.2 listings, ensuring electrical safety and compliance with applicable standards. These certifications support reliability in hazardous or weather-exposed facilities while aligning with industry best practices for switchgear and control enclosures.
Specification guidance is available through Eaton’s Disconnect Enclosure Catalog, including sections on large ground mounted enclosures and enclosure accessories. Additionally, the Large ground mounted enclosure brochure covers performance features, installation considerations, and corrosion resistance. These resources help determine compatibility with B-Line components, mounting layouts, and accessory fitment for your project.
Key safety features include a stainless steel body for durability, a 3-point latching handle that ensures secure closure, and an oil-resistant gasket that maintains seal integrity in oily environments. The enclosure also carries UL 508A and CSA C22.2 certifications and a NEMA rating, which collectively assure compliance, environmental protection, and long-term reliability in demanding industrial settings.
The 12 bottom knockouts provide flexible conduit routing options to accommodate wiring layouts, future upgrades, and reconfigurations without structural changes. This flexibility reduces field wiring time, simplifies modifications, and supports scalable installations within growing facilities. Paired with the 60 in x 61 in x 12 in footprint and 440.689 lb weight, the enclosure accommodates robust power distribution needs while maintaining serviceability.
