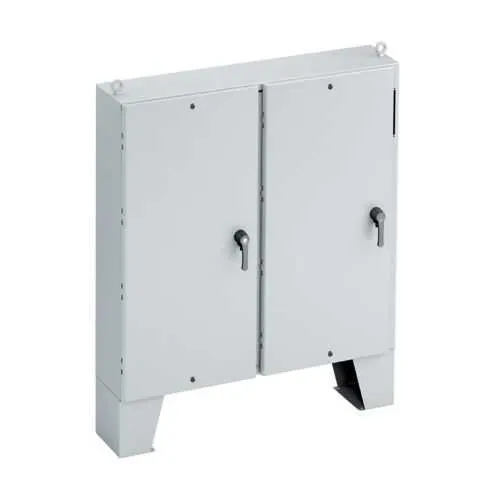

Eaton FD726112-4XSFD Ground Mounted Enclosure - NEMA 4X
Part Number: FD726112-4XSFD
Quick Summary
The Eaton B-Line series ground mounted disconnect enclosure is designed to safely house control gear for industrial sites and utility installations. This 72 in tall, 61 in long, and 12 in wide stainless steel enclosure resists corrosion and weathering, reducing maintenance downtime in harsh environments. End users often struggle with moisture ingress, gasket leaks, and unsafe access in outdoor cabinets. This model carries UL 508A and CSA C22.2 listings with a NEMA 4X rating, clearly signaling durability in rain, dust, and washdown conditions. By combining a hinged cover, a 3-point latching handle, and an oil-resistant gasket, it delivers secure service access and long-term reliability, while remaining compatible with broad B-Line accessories and future upgrades.
Product Information
Extended Description
FD726112-4XSFD Eaton: Eaton B-Line series ground mounted disconnect enclosure, 72"height, 12"length, 61"width, NEMA 4X, Hinged cover, FD4XSFD enclosure, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
FD726112-4XSFD
UPC
799038790501
Product Length/Depth
61 in
Product Height
72 in
Product Width
12 in
Product Weight
505.114 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Stainless steel
Color
Stainless steel
Mounting method
Ground
Special features
3-pt latching handle
Bottom knockouts
12
Large ground mounted enclosure
Accessories section of Enclosure Catalog
Accessories section of Enclosure Catalog
Stainless steel construction with NEMA 4X protection delivers exceptional corrosion resistance and long-term durability. This translates to fewer service interrupts and lower maintenance costs in outdoor or humid facilities, such as outdoor substations or chemical plants. Feature is ideal for outdoor electrical control and process lines where moisture or washdowns are expected. The large footprint, measuring 72 in height, 61 in length, and 12 in width, provides ample space for multiple disconnects and future upgrades, reducing conversion and retrofit time in evolving plant layouts. The hinged cover with a three-point latching handle offers secure access and easier maintenance, minimizing the risk of accidental opening during inspections or servicing. Twelve bottom knockouts enable flexible wiring and simplified terminations, supporting large feeder cables and conduit bundles with reduced installation time. The enclosure’s UL 508A and CSA C22.2 certifications and NEMA rating ensure regulatory compliance and consistent safety across facilities. Weight of about 505 lb provides a stable, vibration-resistant installation suitable for rooftop or outdoor mounting, while the oil-resistant gasket maintains a robust seal against dust and water ingress. Overall, this enclosure blends rugged build quality with flexible accessibility, enabling safer installations, faster upgrades, and a lower total cost of ownership in demanding environments.
Get a Quick Quote for a Eaton FD726112-4XSFD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD726112-4XSFD?
Enquire Now
FAQs
This enclosure uses a ground mounting method as specified by Eaton's B-Line disconnect family. It is designed to work with standard B-Line accessories and mounting hardware, and includes 12 bottom knockouts to facilitate flexible conduit and cable entry for enhanced compatibility with existing installations.
The FD726112-4XSFD is UL 508A and CSA C22.2 listed, with a NEMA 4X protection rating. These certifications support safe installation in industrial environments and provide reliable performance in weather-exposed locations.
Yes. The combination of stainless steel construction, NEMA 4X protection, and an oil-resistant gasket makes it appropriate for outdoor, dusty, and washdown-prone environments, delivering durable weather resistance and reduced maintenance.
The unit measures 72 inches in height, 61 inches in length, and 12 inches in width, with an approximate weight of 505.114 pounds, which informs handling and mounting considerations in installation planning.
The rugged stainless steel build with NEMA 4X protection minimizes corrosion and ingress-related failures, lowering maintenance costs and downtime. The hinged cover and 3-point latch streamline inspections and servicing, while ample space and knockouts support future upgrades without costly retrofits.
