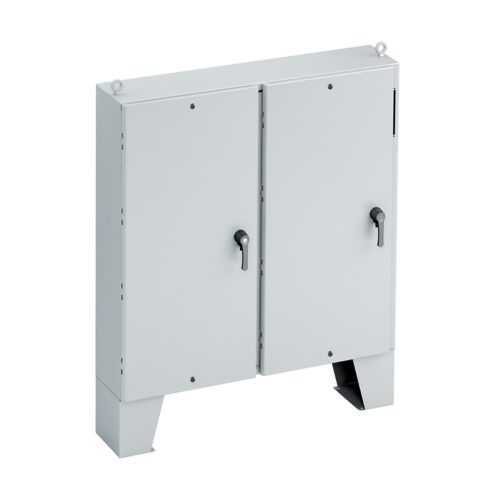

Eaton FD726118-4XSFD Disconnect Enclosure - NEMA 4X
Part Number: FD726118-4XSFD
Quick Summary
Eaton FD726118-4XSFD ground mounted disconnect enclosure delivers reliable power control for industrial electrical panels. In many facilities, corrosion, weather exposure, and difficult maintenance erode uptime and increase repair costs. This enclosure addresses those pain points with robust stainless steel construction and a hinged cover designed for long service life in harsh environments. UL 508A and CSA C22.2 certifications underpin electrical safety, while the NEMA 4X rating guards against moisture, dust, and corrosive elements. The ground-mount configuration, combined with 3-pt latching and 12 bottom knockouts, provides installation flexibility and scalable capacity for future expansions. This solution supports compliance, reduces downtime, and lowers total cost of ownership while improving safety.
Product Information
Extended Description
FD726118-4XSFD Eaton: Eaton B-Line series ground mounted disconnect enclosure, 72"height, 12"length, 61"width, NEMA 4X, Hinged cover, FD4XSFD enclosure, Ground mount, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
FD726118-4XSFD
UPC
799038790549
Product Length/Depth
61 in
Product Height
72 in
Product Width
18 in
Product Weight
565.58 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Stainless steel
Color
Stainless steel
Mounting method
Ground
Special features
3-pt latching handle
Bottom knockouts
12
Large ground mounted enclosure
Accessories section of Enclosure Catalog
Accessories section of Enclosure Catalog
Feature: Stainless steel construction with NEMA 4X rating → Business Impact: Superior corrosion resistance and durability in outdoor or washdown environments, extending enclosure life and reducing maintenance cycles. Application: Ideal for outdoor electrical protection in manufacturing floors, water treatment, and process facilities. Feature: Hinged cover and 3-point latching → Business Impact: Easy access for panel servicing without compromising security or safety, reducing maintenance time and risk of operator error. Application: Routine inspections and preventive maintenance in harsh environments, with fast unlock/lock workflows. Feature: Ground mounting with large footprint (72" height, 61" length, 18" width) and substantial weight → Business Impact: Stable, vibration-resistant deployment and predictable clearance for wiring, terminations, and future upgrades. Application: Heavy-duty switchgear housing in centralized plant rooms or outdoor sites needing reliable anchoring. Feature: 12 bottom knockouts and oil-resistant gasket → Business Impact: Flexible conduit/cable entry options and moisture sealing that minimizes ingress paths and water ingress risk. Application: Complex wiring layouts in process plants or outdoor installations with diverse feed configurations. Feature: Certifications and safety standards (UL 508A, CSA C22.2, NEMA) → Business Impact: Simplified compliance workflows, reduced audit findings, and accelerated project approvals. Application: Enclosures used in regulated industrial environments requiring proven safety and performance. Feature: Compatibility with Eaton B-Line Series and stainless steel finish → Business Impact: Streamlined procurement, consistent aesthetics, and proven integration with surrounding protection systems. Application: Upgrades or expansions within existing B-Line protected-panel ecosystems, enabling scalable protection across facilities.
Get a Quick Quote for a Eaton FD726118-4XSFD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD726118-4XSFD?
Enquire Now
FAQs
Yes. This ground-mounted enclosure is designed for harsh environments and outdoor use, featuring a stainless steel body with a robust footing for secure anchoring. Plan for clearances around the 72" height and 61" length, account for bottom knockouts (12) for cable entry, and ensure adequate venting and accessibility for service personnel. Compatibility with existing B-Line components helps streamline integration.
Key specs include a 72 inch product height, 61 inch depth, 18 inch width, and a weight around 565.6 lb. The unit is rated to NEMA 4X with UL 508A and CSA C22.2 certifications, and features a hinged cover with a 3-point latching system and oil-resistant gasket to maintain enclosure integrity in challenging conditions.
Industries such as manufacturing, water treatment, and outdoor power distribution benefit from its corrosion resistance, robust security, and easy service access. It’s ideal for protecting disconnect switches and control gear in environments with moisture, dust, or chemical exposure, while enabling scalable expansions through its 12 bottom knockouts.
The enclosure complies with UL 508A and CSA C22.2 standards and bears a NEMA rating for reliable weather and corrosion protection. This helps simplify inspections, meet electrical safety obligations, and reduce audit findings when installing control gear in regulated industrial settings.
Expect reduced downtime due to durable stainless steel construction, a secure 3-point latch, and a weather-tight gasket. Maintenance focuses on periodic gasket inspection and hinge/lock checks. The long service life and easy upgrade path within the Eaton B-Line ecosystem contribute to lower total cost of ownership and faster return on investment.
