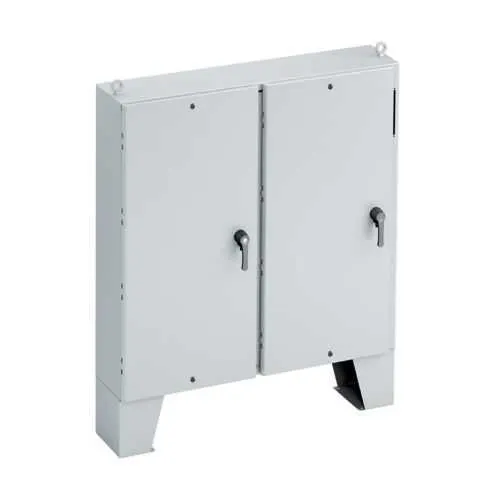

Eaton FD727318-4XSFD Ground Mounted Enclosure - NEMA 4X
Part Number: FD727318-4XSFD
Quick Summary
Eaton FD727318-4XSFD ground mounted disconnect enclosure provides reliable control isolation for industrial power systems. Maintenance and corrosion risks in harsh environments can lead to unplanned downtime. It carries UL 508A and CSA C22.2 listings, with NEMA compatibility to withstand demanding installation conditions. Stainless steel construction and a 3‑point latching handle support long service life, while meeting stringent safety standards for outdoor electrical protection and disconnect applications.
Product Information
Extended Description
FD727318-4XSFD Eaton: Eaton B-Line series ground mounted disconnect enclosure, 72"height, 12"length, 73"width, NEMA 4X, Hinged cover, FD4XSFD enclosure, Ground mount, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
FD727318-4XSFD
UPC
799038790556
Product Length/Depth
73 in
Product Height
72 in
Product Width
18 in
Product Weight
668.138 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Stainless steel
Color
Stainless steel
Mounting method
Ground
Special features
3-pt latching handle
Bottom knockouts
12
Large ground mounted enclosure
Accessories section of Enclosure Catalog
Accessories section of Enclosure Catalog
Stainless steel construction with a NEMA 4X rating delivers corrosion resistance and durability in harsh environments. This reduces maintenance costs and downtime while providing robust protection for electrical equipment in outdoor facilities, wash-down areas, and chemical plants. Ground mounting with 12 bottom knockouts and a 3‑point latching handle provides secure access and flexible routing, enabling faster installation and safer operation in plant floor layouts and retrofit projects. UL 508A and CSA C22.2 certifications ensure compliance with U.S. and Canadian electrical codes, supporting risk management and regulatory adherence for industrial facilities. The generous internal footprint of 73 in length and 18 in width accommodates large disconnect assemblies, improving install efficiency and future scalability. An oil-resistant gasket and stainless steel body protect against weathering and chemical exposure, reducing long-term maintenance cycles. The heavy 668.138 lb enclosure offers stable, tamper-resistant mounting suitable for demanding environments and lifecycle cost optimization in electrical protection and disconnect systems.
Get a Quick Quote for a Eaton FD727318-4XSFD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD727318-4XSFD?
Enquire Now
FAQs
For retrofit installations, the FD727318-4XSFD is designed for ground mounting and accepts multiple bottom knockouts (12) to accommodate a variety of feed routed configurations. Confirm clearance for the 73 inch length, 72 inch height, and 18 inch width to ensure proper service access and door swing. The enclosure supports secure mounting to concrete or a frame, reducing vibration and movement in harsh environments.
This enclosure carries UL 508A and CSA C22.2 listings, along with NEMA compatibility. These certifications align with common North American electrical safety standards, helping you meet code requirements for electrical protection and disconnect equipment in commercial, industrial, and process facilities, while supporting risk mitigation and safer maintenance practices.
Yes. The stainless steel construction combined with a NEMA 4X rating and oil-resistant gasket provides reliable weather sealing and chemical resistance, making it appropriate for outdoor installations, wash-down zones, and corrosive environments typical in manufacturing and municipal settings.
Important specs include the Model FD727318-4XSFD, ground mounting, 72 inch height, 73 inch length, 18 inch width, stainless steel material and color, 3‑point latching handle, bottom knockouts (12), and weight around 668.138 lb. Certifications UL 508A, CSA C22.2, and NEMA compatibility further define installation requirements and safety performance for industrial control panels.
The combination of stainless steel construction, NEMA 4X sealing, and oil-resistant gasket reduces corrosion-related downtime and maintenance. A robust build plus a secure 3‑point latch minimizes ingress risks and tampering, delivering a longer service life, predictable maintenance intervals, and improved total cost of ownership for electrical protection and disconnect systems in demanding facilities.
