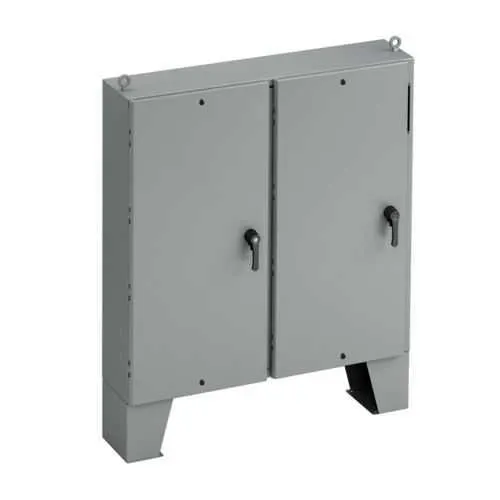

Eaton FD727324-4FD Ground Mounted Enclosure - NEMA 12/4
Part Number: FD727324-4FD
Quick Summary
FD727324-4FD is an Eaton ground mounted disconnect enclosure designed to protect power distribution gear in industrial facilities. End users often battle weather exposure, corrosion, and restricted access that drive downtime and maintenance costs. UL 508A, CSA C22.2, and NEMA ratings underpin safety and cross‑border compliance. The rugged carbon steel construction, hinged cover, and ground provisions support fast installation and long service life, while the 3‑point latching and padlock provisions tighten security for restricted access environments.
Product Information
Extended Description
FD727324-4FD Eaton: Eaton B-Line series ground mounted disconnect enclosure, 72"height, 12"length, 73"width, NEMA 4, Hinged cover, FD12FD enclosure, Large double door, Ground mount legs, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
FD727324-4FD
UPC
782051474282
Product Length/Depth
12 in
Product Height
72 in
Product Width
73 in
Product Weight
674.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
FD12FD enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
Ground mount legs
Ground provisions
Ground studs on door and body
Locking provisions
Defeater padlock provision
O-rings and gasket type
Oil-resistant gasket
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12 4
Country of origin
US
Large ground mounted enclosure
Accessories section of Enclosure Catalog
Accessories section of Enclosure Catalog
Eaton Specification Sheet - FD727324-4FD
Feature: NEMA 12/4 protection with an oil resistant gasket provides reliable weatherproof performance in outdoor and harsh indoor environments. Business Impact: Reduces water ingress and corrosion, lowering maintenance cycles and extending service life. Application: Outdoor substations, process plants, exterior switchgear. Feature: Carbon steel construction with 12 gauge wall and ANSI 61 gray painted finish delivers durable, impact resistant enclosure suitable for demanding facilities. Business Impact: Longer service life, safer operation, and reduced replacement costs. Application: Heavy industrial floors, manufacturing lines, and data centers with rugged exposure. Feature: Hinged cover with large double doors and 3‑point latching enhances serviceability and security. Business Impact: Faster maintenance cycles and improved access control. Application: Routine panel maintenance and restricted access areas. Feature: Ground mount legs and ground studs on door and body simplify installation and provide solid, code‑compliant mounting. Business Impact: Quicker on‑site deployment and reduced installation labor. Application: Floor‑mounted outdoor enclosures and elevated platforms. Feature: Defeater padlock provision and locking provisions support secure, compliant access. Business Impact: Enhances security without added hardware complexity. Application: Facilities requiring controlled entry to control panels. Feature: O‑rings and gasket type are oil resistant, aiding long‑term sealing and reliability. Business Impact: Maintains enclosure integrity under demanding process fluids and temperature variations. Application: Environments with oil exposure and temperature fluctuations. Feature: Certifications and standards alignment (UL 508A, CSA C22.2, NEMA) provide regulatory compliance and cross‑regional compatibility. Business Impact: Simplifies procurement for multinational projects and reduces compliance risk. Application: Global rollout of electrical protection & control systems.
Get a Quick Quote for a Eaton FD727324-4FD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD727324-4FD?
Enquire Now
FAQs
The enclosure includes ground studs on the door and body and ground mount legs, enabling stable, code‑compliant floor or platform mounting. This configuration simplifies wiring, grounding, and service access for routine maintenance in industrial spaces.
It features a NEMA 12/4 rating and UL 508A/CSA C22.2 compliant construction. Made from carbon steel with a 12 gauge wall and an oil‑resistant gasket, it provides robust protection against weather, dust, and incidental oil exposure while maintaining structural integrity.
Yes. With NEMA 12/4 protection and a weather‑resistant gasket, the FD727324-4FD is designed for outdoor and harsh indoor applications, including exterior switchgear and process areas, where reliable environmental sealing is critical.
The enclosure complies with UL 508A and CSA C22.2 standards and carries a NEMA rating, ensuring safety, reliability, and cross‑border usability for North American projects.
Its reinforced carbon steel body, oil‑resistant gasket, hinged cover, and secure locking provisions reduce corrosion, simplify service access, and extend component life. This translates to lower maintenance costs and reduced downtime in ongoing plant operations.
