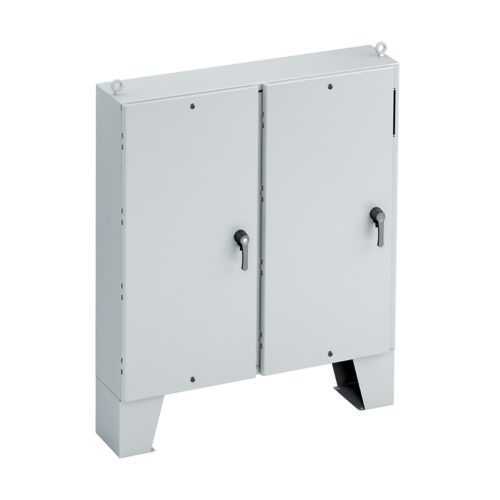

Eaton FD727724-4XSFS Ground Disconnect Enclosure - NEMA 4X
Part Number: FD727724-4XSFS
Quick Summary
The Eaton FD727724-4XSFS ground disconnect enclosure protects control gear in harsh indoor and outdoor installations. Engineers and maintenance teams often struggle with weatherproofing, corrosion resistance, and secure access in large electrical cabinets. This unit delivers UL 508A, CSA C22.2, and NEMA 4X ratings to ensure compliance and safety across industrial environments. Its stainless steel construction and oil-resistant gasket reduce maintenance intervals and protect sensitive components. The 3-point latching handle enhances security, while the 12 bottom knockouts and generous internal clearance streamline wiring and future upgrades. By matching Eaton’s B-Line series with robust protection and straightforward installation, you gain reliability, lifecycle cost savings, and operational uptime.
Product Information
Extended Description
FD727724-4XSFS Eaton: Eaton B-Line series ground mounted disconnect enclosure, 72"height, 24"length, 77.75"width, NEMA 4X, Hinged cover, FD4XSFS enclosure, Ground mount, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
FD727724-4XSFS
UPC
799038832508
Product Weight
890.085 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Stainless steel
Color
Stainless steel
Mounting method
Ground
Special features
3-pt latching handle
Bottom knockouts
12
Large ground mounted enclosure
Accessories section of Enclosure Catalog
Accessories section of Enclosure Catalog
Eaton Specification Sheet-FD727724-4XSFS
Expanded internal volume supports complex motor starter and control assemblies, with a 72 in high, 24 in deep, and 77.75 in wide footprint. This generous space reduces cramped wire routing, enables easier service, and supports future expansion. In industrial environments such as packaging lines or process skids, that headroom translates to faster installations and less downtime. Stainless steel construction paired with an oil-resistant gasket delivers superior corrosion resistance and long-term integrity in wet or oily plants. The result is lower maintenance costs, reduced paint or coating touch-ups, and a longer service life for outdoor enclosures in chemical refineries and food-processing facilities. Ground mounting ensures solid stability and simpler anchoring in concrete floors. For facilities with seismic concerns or high-traffic areas, this mounting method streamlines compliance with safety guidelines and provides predictable panel alignment during maintenance. 3-point latching handle enhances security and one-handed operation even when wearing gloves. This feature improves access control and reduces risk of accidental door opening in busy switchgear rooms. Bottom knockouts (12) offer flexible conduit routing and quick interface with standard electrical pathways. This reduces field adaptation time and avoids field-fabricated entry kits, improving project lead times and cost predictability. Oil-resistant gasket and NEMA 4X rating provide reliable protection against weather, dust, and hydrocarbons. Combined with UL 508A and CSA C22.2 certifications, the enclosure delivers consistent compliance across regional markets and supports safer, uninterrupted operation. Compatibility with Eaton B-Line series enclosures accelerates integration with existing panels and accessories, reducing engineering effort and spare-part costs. The unit's finish and materials align with industrial-grade standards, making it suitable for harsh environments from manufacturing floors to outdoor substations.
Get a Quick Quote for a Eaton FD727724-4XSFS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD727724-4XSFS?
Enquire Now
FAQs
Yes. The FD727724-4XSFS is designed for straightforward integration with standard conduit sizes and Eaton B-Line accessories. It features 12 bottom knockouts to accommodate common conduit configurations and a hinged cover for simple service. When pairing with existing B-Line components, verify mounting footprint and clearance in your panel layout, ensuring sufficient space for future expansion and wiring.
The enclosure employs stainless steel construction with an oil-resistant gasket and a NEMA 4X rating. This combination delivers superior corrosion resistance, weatherproof performance, and dust/hydrocarbon protection, making it suitable for outdoor and wet indoor environments such as chemical plants, food processing facilities, and outdoor substations.
Ideal for industrial manufacturing floors, outdoor substations, process plants, and oil/chemical facilities, the FD727724-4XSFS accommodates large control assemblies while providing robust protection. Its dimensions and knockouts support complex wiring schemes, equipment retrofits, and future expansions without compromising enclosure integrity or compliance.
This enclosure complies with UL 508A and CSA C22.2 and carries a NEMA rating of 4X. Meeting these standards simplifies panel certification, ensures regulatory alignment for industrial control panels, and supports risk mitigation for environmental exposure, moisture, and conductive dust in demanding industrial environments.
A stainless steel, corrosion-resistant body coupled with an oil-resistant gasket reduces corrosion-related upkeep and repainting. The durable construction minimizes replacement frequency, while the secure 3-point latch and ample wiring space lower maintenance cycle times and commissioning costs, delivering long-term lifecycle cost savings and improved uptime for critical control systems.
